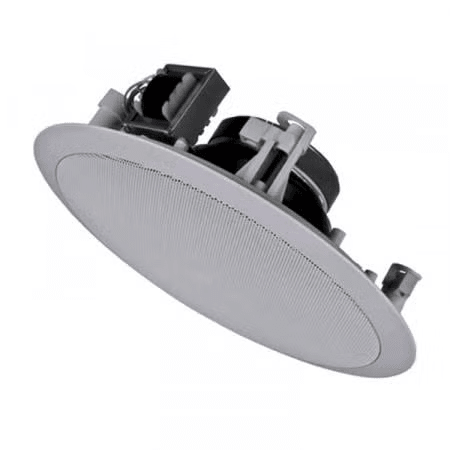

Audac CS74 Quick-Fit 2-Way 5 1/4" Ceiling Speaker (White)
Audac CS74 Quick-Fit 2-Way 5 1/4″ Ceiling Speaker (White)
$79.99 Inc GST Add to cart

Audac CS74 Quick-Fit 2-Way 5 1/4″ Ceiling Speaker (White)

$79.99 Inc GST

Audac CS74 Quick-Fit 2-Way 5 1/4″ Ceiling Speaker (White)

20 In Stock in Waikato Stores

Item Locations:
AV Store in Hamilton: 20 Available Ships 1–2 Days

Free NZ shipping on all orders over $499 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $499)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Description

The Audac CS74 Quick-Fit 2-Way 5 1/4″ Ceiling Speaker is a high-quality in-ceiling loudspeaker, delivering exceptional sound quality and value for a wide variation of applications, ranging from paging and announcements to background music systems in a wide range of business applications, including hotels, restaurants and pubs, corporate offices, retail stores, etc.

The CS74 in-ceiling loudspeaker features a 5 ¼” driver with a coaxially mounted 1” tweeter, having a continuous power handling of 30 Watt and a maximum power handling of 60 Watt. The 2-way construction makes the CS75 the perfect match for a wide variation highly demanding of applications, guaranteeing a high-quality and true-to-nature reproduction of music and speech.

The moisture-proof treatment on the speakers’ cone and aluminium front grill protects it for installation in humid or outdoor environments. A multi-tapping line transformer fitted with Fast-con™ allows fast and smooth connections to 100 Volt public address or low impedance systems. The mounting of the loudspeaker into the ceiling is achieved with a Quick-fix mechanism, offering a great installers convenience and lifetime stability. The construction of the speakers’ housing is made out of high-quality ABS, while the front is covered by a solid powder-coated aluminium grill.

Specifications

Speaker type 2-way coaxial
Max. Power 60 W
RMS Power 30 W
Sensitivity (1W/1m) 90 dB
Sound Pressure (Max. W/1m) 104 dB
Impedance 8 Ω
Connectors Multi-tap Fast-con™ connections
Drivers 5 1/4” MF / LF Woofer
1” Dome tweeter

Line Transformer Tappings 1 6 W / 1667 Ω
2 3 W / 3333 Ω
3 1.5 W / 6667 Ω
Frequency Response (± 3 dB) 60 Hz – 20 kHz
Range (-10 dB) 50 Hz – 20 kHz
Crossover Type Passive built-in
Dispersion Conical 135° (Half space (flush mounted in ceiling), average 100 Hz to 10 kHz @ -6 dB)
Dimensions 202.5 x 72 mm (Ø x D)
Weight 1.100 kg
Construction ABS
Mounting & handling Quick-fit installation system (4-screw)
Front finish Aluminium grill (paintable)
Cut-out measurement 165 mm (Ø)
Built-in depth 66 mm
