HDMI Extender – 4K – 40m with ARC and CEC

Features:


HDMI 2.0 (a/b) HDCP 2.2. compliant
18Gbps data rate throughout (up to 40m)
Supports all resolutions up to and including Ultra HD 4K 60 4:4:4
Supports all current High Dynamic Range (HDR) formats, including Dolby Vision
Supports all current audio formats up to Dolby Atmos and DTS:X
HDMI ARC+CEC: Rx -> Tx
Bi-directional PoH – can be powered from either Rx or Tx

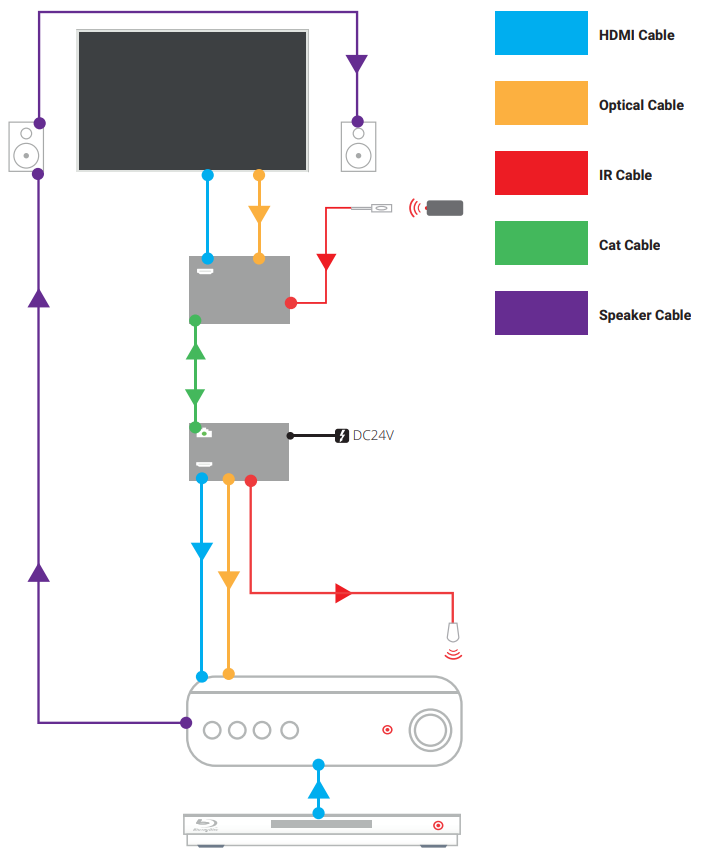

Sold as a complete install package, with all IR cabling and mounting kit included

(click to expand)

Our most slender, super-slim and ultra-lightweight HDMI 2.0 / HDBaseT 2.0 extender set – supports 18Gbps premium UHD/4K 60Hz 4:4:4 data rates, with all current HDR formats inc. Dolby Vision, HDR10 and HLG up to 40 metres, over one twisted pair Cat cable.
Audio Return Channel (ARC) – Audio return output is possible to the Transmitter via HDMI / optical or downmixed analogue (previously only optical/analogue) from either HDMI ARC or Optical sources.
Control is via CEC*, 2-way IR or RS232. *When supported through compatible equipment and cabling
Tipping Point Compression w/DSC enables the transmission of 18Gbps content via HDBaseT 2.0 technology, with no human-perceivable difference in video quality. TPC can handle all HDR formats, including Dolby Vision, retaining all original HDR Meta and is compatible with all chroma subsampling and colour space options (4:4:4, 4:2:2, and 4:2:0).
Specifications:

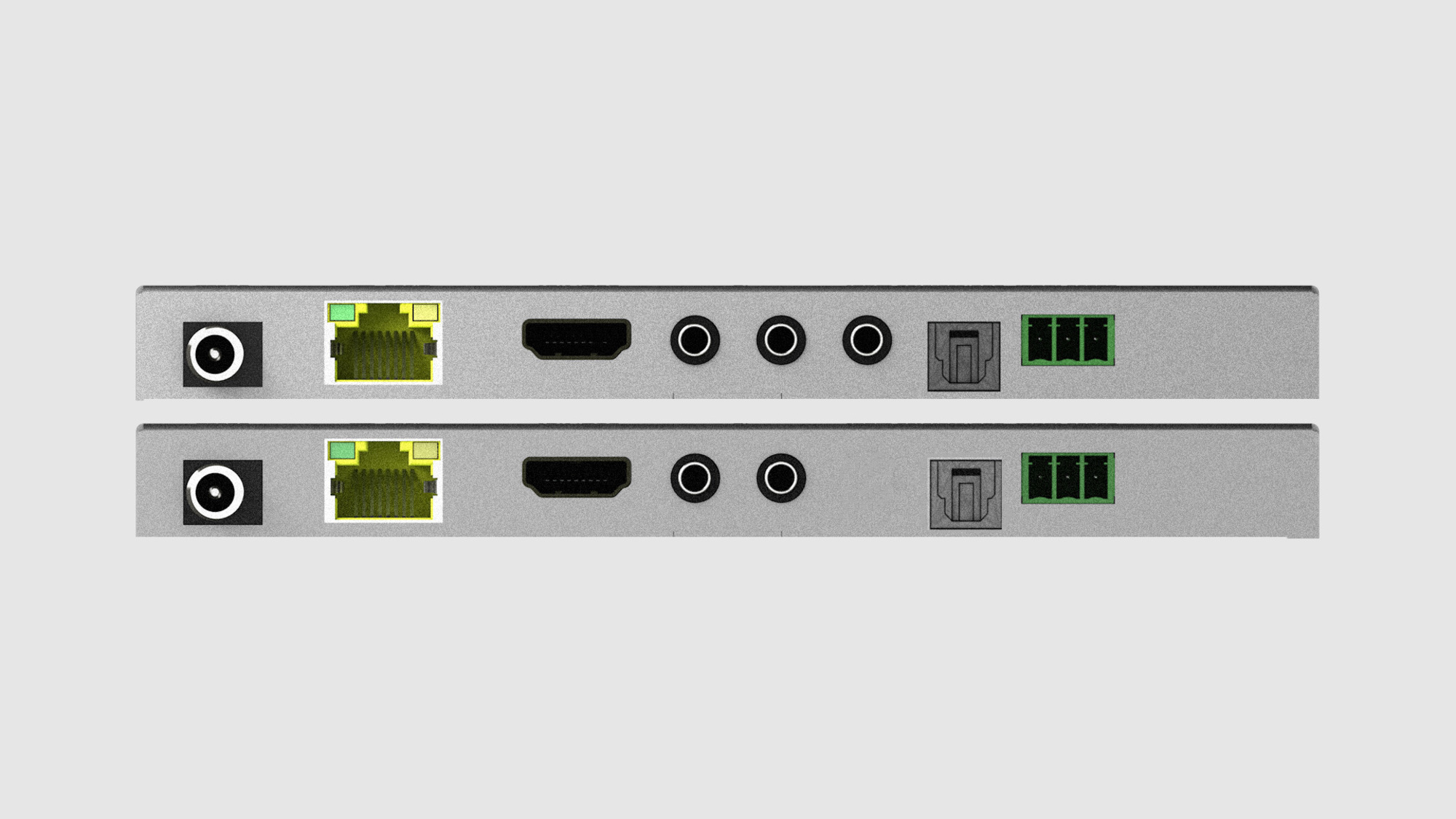

Tx / Rx form factor
Lightweight, super-slim aluminium enclosure

Inputs / outputs
TxHDMI in / RJ45 HDBaseT out / optical out / RS232 / 2x IR 3.5mm jack (in = to Rx / out = from Rx)RxRJ45 HDBaseT in / HDMI out / Optical in  / RS232 / 2x IR 3.5mm jack (in = to Tx / out / from Tx)

Transmission tech
HDBaseT 2.0 + TPC w/DSC

Video bandwidth
594MHz clock / 18 Gbps data

ESD protection
~8kV (air-gap discharge)~4kV (contact discharge)

Control
Bi-direction IR and RS232+ HDMI CEC pass-through

Device / package weight
176 / 1100 g

Dimensions (WxDxH)
162 / 88 / 17 mm (Tx and Rx)

Power
24V / 1A DC screw type connector(US/EU standards, CE/FCC/UL certified)

Operating temperature
0C to 40C

Storage temperature
-20C to 60C

Relative humidity
20~90% RH (non-condensing)

Power consumption
9.5W (max)

Guarantee
2 years


Product Code: XTND4K402ARC TPC [CEC]
