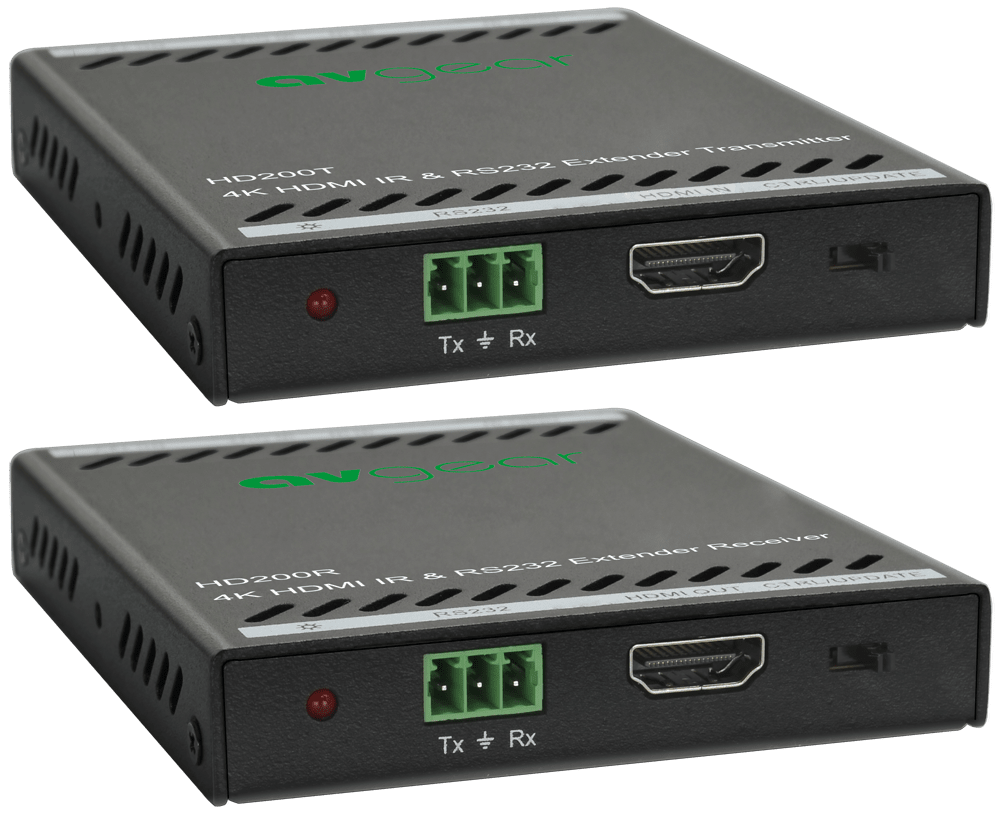

The AVG-HD200 is a HDBaseT Extender set consisting of a Transmitter and Receiver. It delivers HDMI signal via CAT5e/ CAT6a with a maximum transmission distance up to 70/40m for 1080P/4K signal. It also features IR and RS232 pass-through to control local source device from remote or far-end display.
- Supports HDMI1.4 & HDCP2.2.
- Maximum transmission distance is up to 40m for 4Kx2K and 70m for 1080p.
- Supports bi-directional 5V IR and RS232 pass-through for long-distance control.
- Supports bi-directional PoC for simplified wiring.
- Supports CEC.
- Features a DIP switch to choose Control or Update mode.
| Model
Spec |
Transmitter (TX) | Receiver (RX) |
| Input | HDMI IN | HDBT IN |
| Output | HDBT OUT | HDMI OUT |
| Control | IR IN, IR OUT, RS232 | IR IN, IR OUT, RS232 |
| General | ||
| Maximum Video Resolution | 4K×2K@60Hz 4:2:0, including 1080p@60Hz | |
| Transmission Mode | HDBaseT | |
| Transmission Distance | 1080p signal to 70m, 4K signal to 40m | |
| Bandwidth | 10.2Gbps | |
| Video Standard | HDMI1.4 with HDCP2.2 | |
| Power Consumption | 10 watts | |
| Operating Temperature | 0 ~ +40℃ | |
| Storage Temperature | -10 ~ +55℃ | |
| Operating Humidity | 0% ~ 90% | |
| Power Supply | Input Power: 12VDC 1A or Power over Cable (PoC);
AC Adaptor Input Power: 100~240VAC, 50/60Hz |
|
| Dimension (W*H*D) | 106mm x 16mm x 84mm | |
| Net Weight (g) | 250g | |
