12″ Powered Coaxial High-Performance PA Loudspeaker with Bluetooth & App Control

Overview

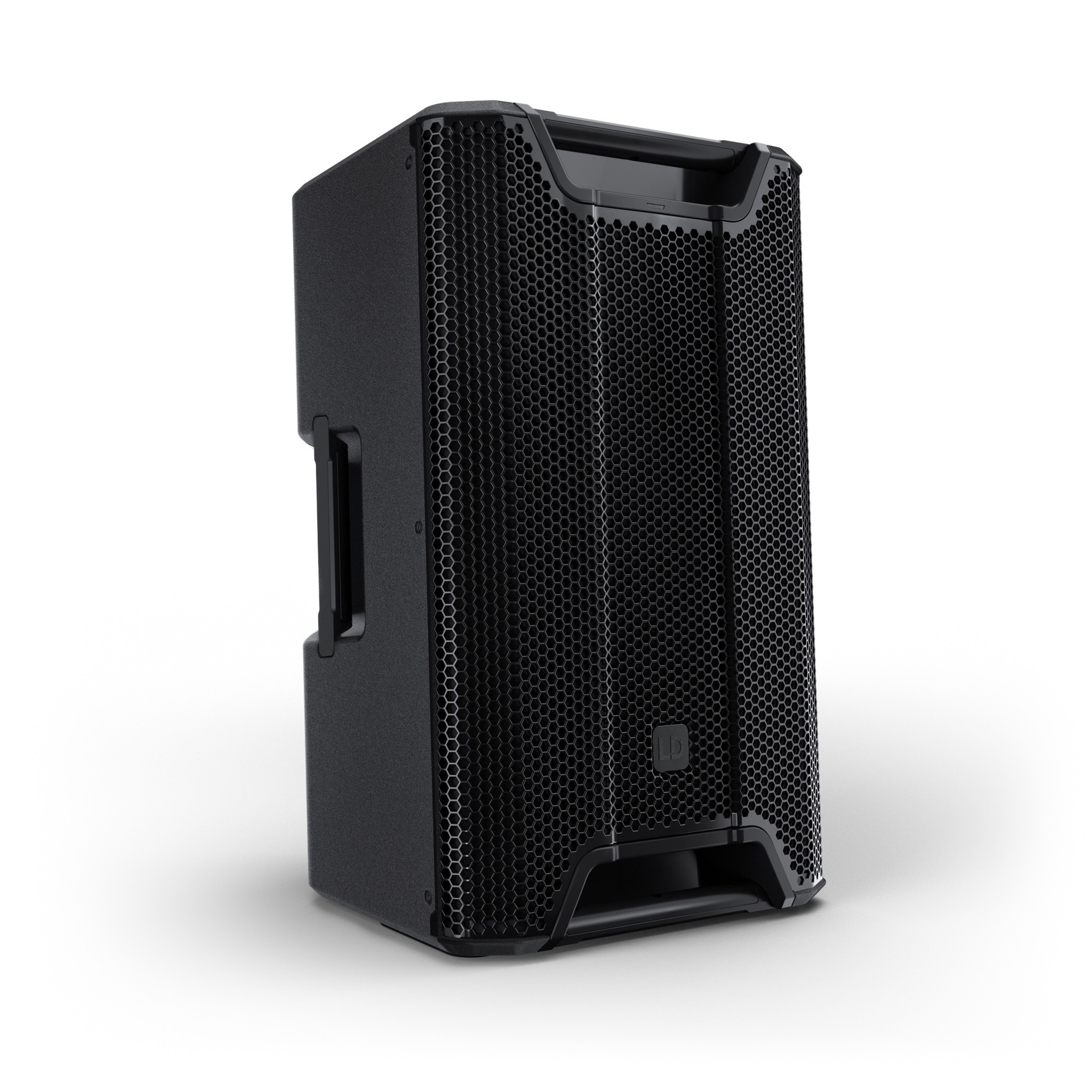

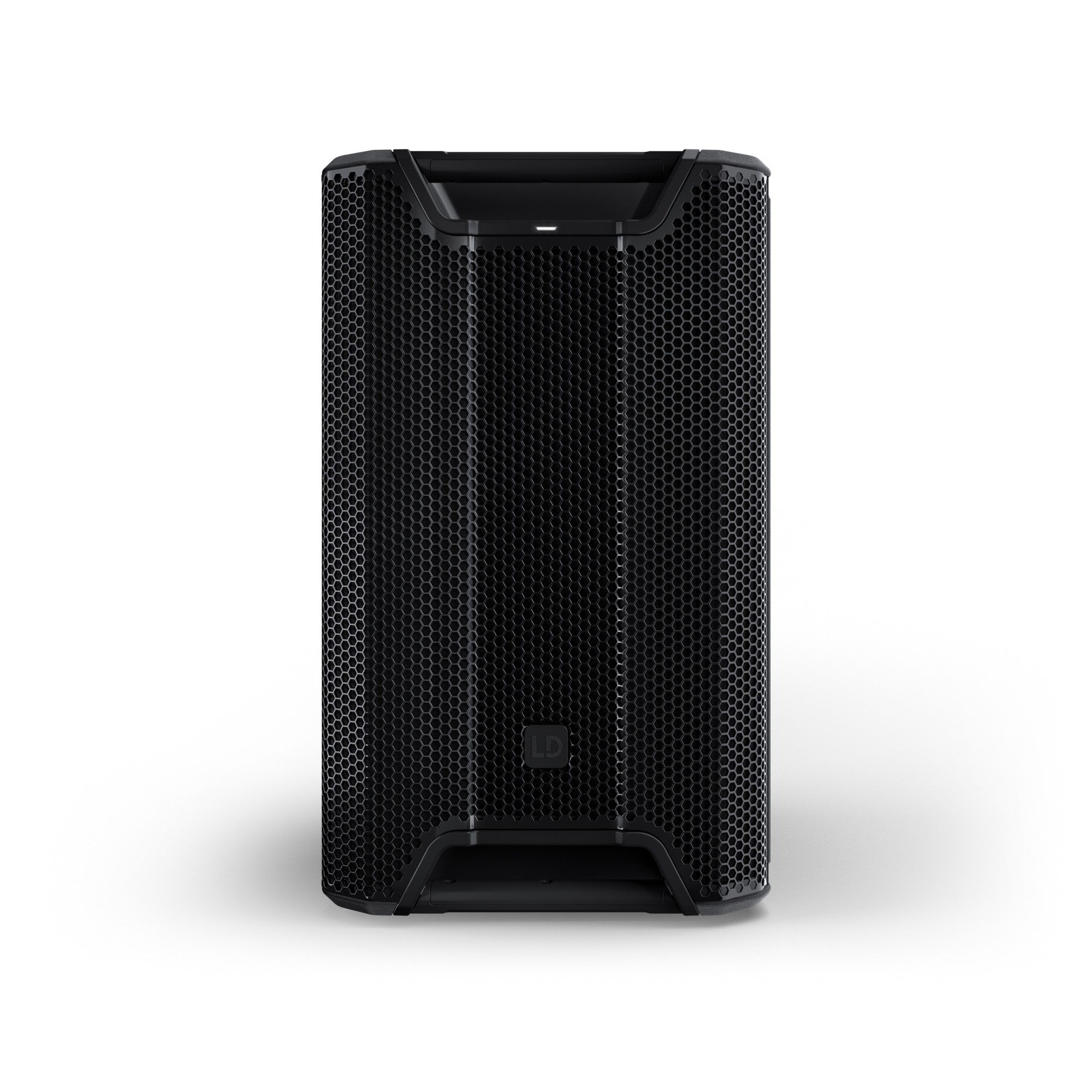

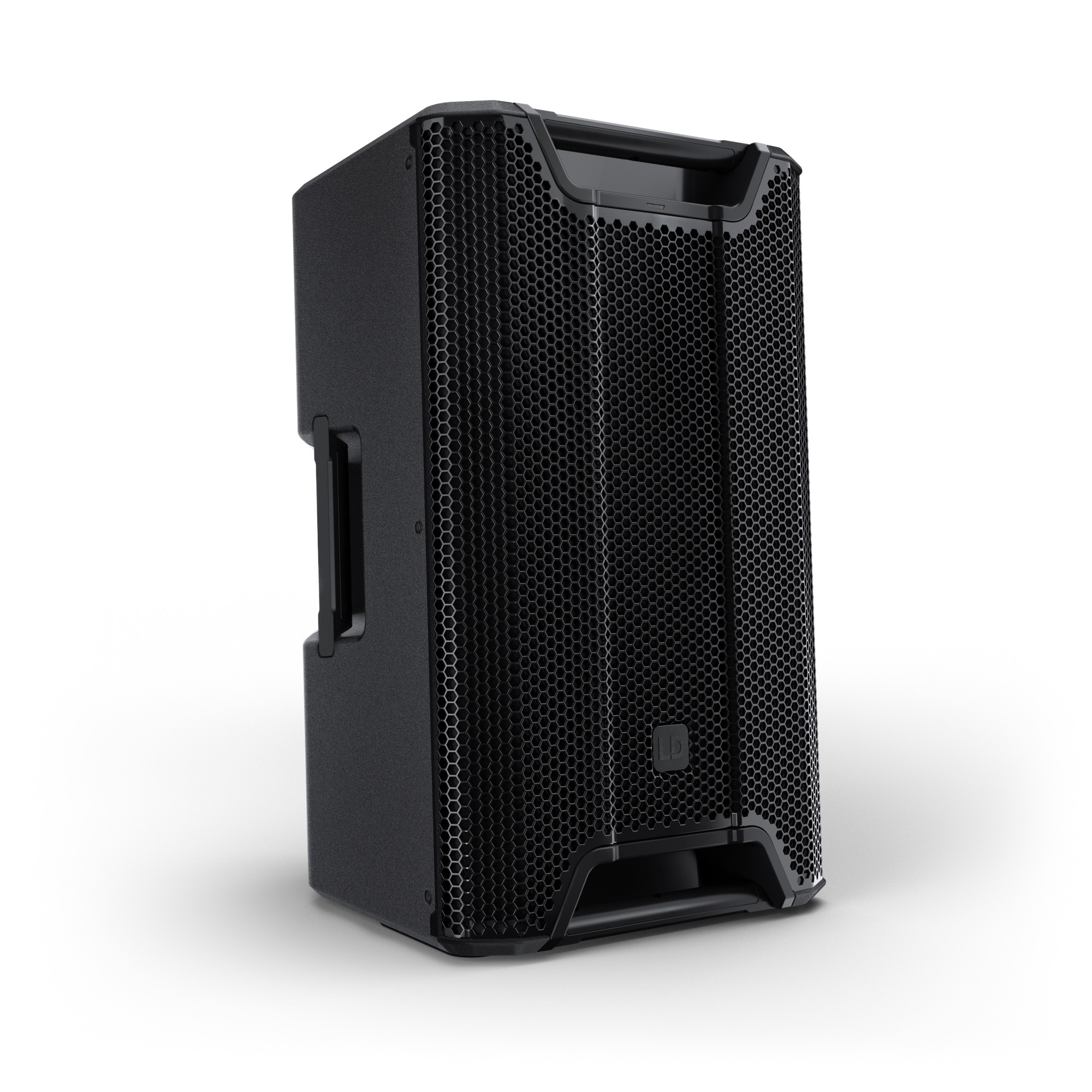

The LD Systems ICOA® PRO 12 A is a high-power 12″ active coaxial PA loudspeaker engineered for professional live sound, monitoring, and permanent installation. Combining true point-source coaxial design, advanced DSP, and modern Bluetooth control, the ICOA PRO 12 A delivers exceptional clarity, power, and flexibility in a rugged, tour-ready enclosure.

With 133 dB max SPL, 1000 W RMS Class-D amplification, and precision horn dispersion, this speaker is equally at home as a front-of-house loudspeaker, stage monitor, satellite system, or fixed installation solution.

Key Features

• True coaxial 2-way design for accurate point-source sound reproduction

• 12″ woofer with 3″ voice coil and 3″ titanium HF compression driver

• 133 dB max SPL with 1000 W RMS / 2000 W peak power

• Large rotatable BEM-optimised horn with 90° × 50° dispersion

• SysCore® DSP with FIR/IIR filters for distortion-free performance

• Bluetooth® 5.1 with TWS stereo streaming

• Free ICOA PRO control app (iOS & Android)

• 4-band parametric EQ, delay and application presets

• EasyMount® compatible plus 6 × M10 rigging points

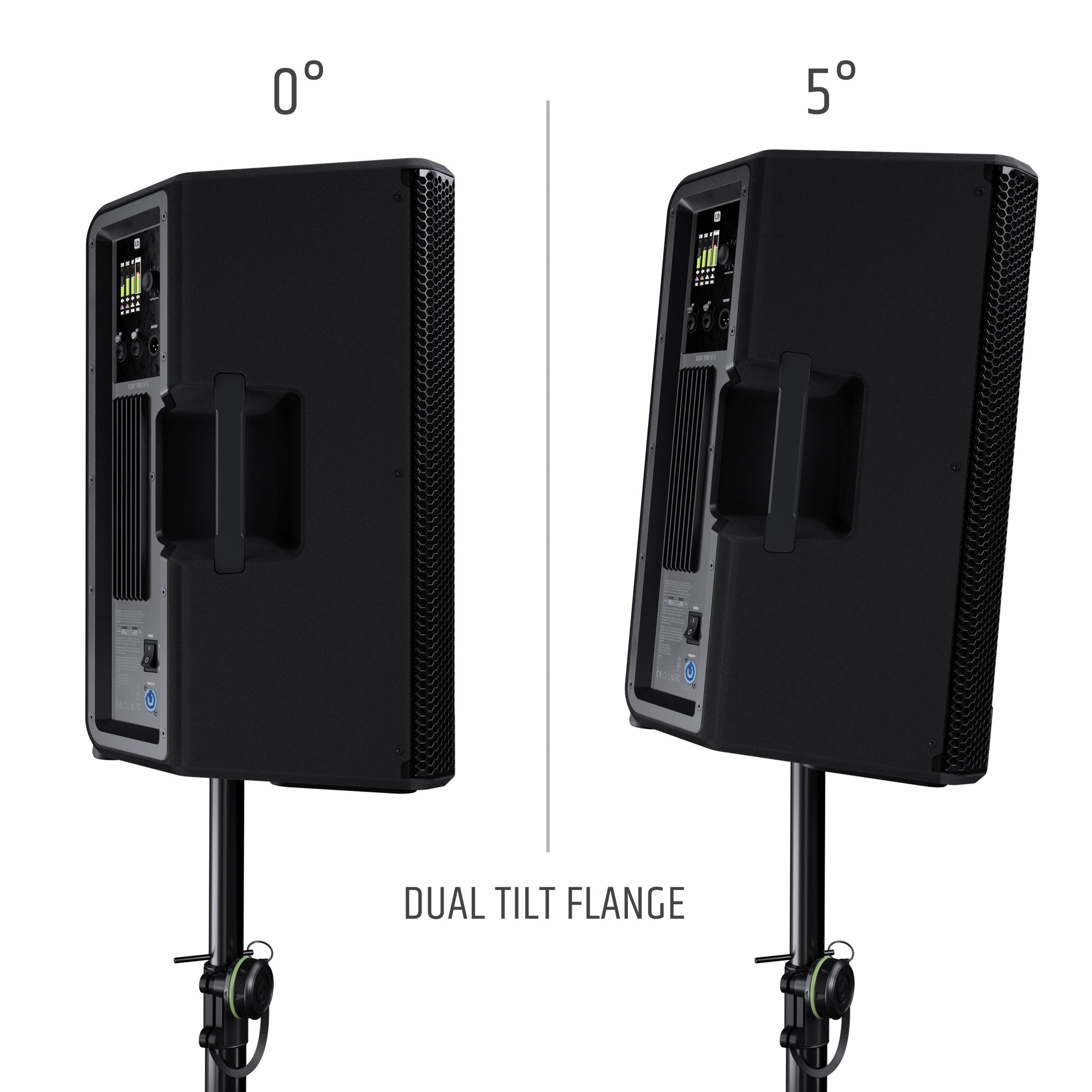

• Dual-tilt 35 mm pole mount (0° / 5°)

• Ultra-robust ABS cabinet with internal steel reinforcement

Professional Sound Performance

At the heart of the ICOA PRO 12 A is a true coaxial loudspeaker system using a common motor design. This ensures exceptional phase coherence, precise imaging, and natural sound reproduction across the entire frequency range.

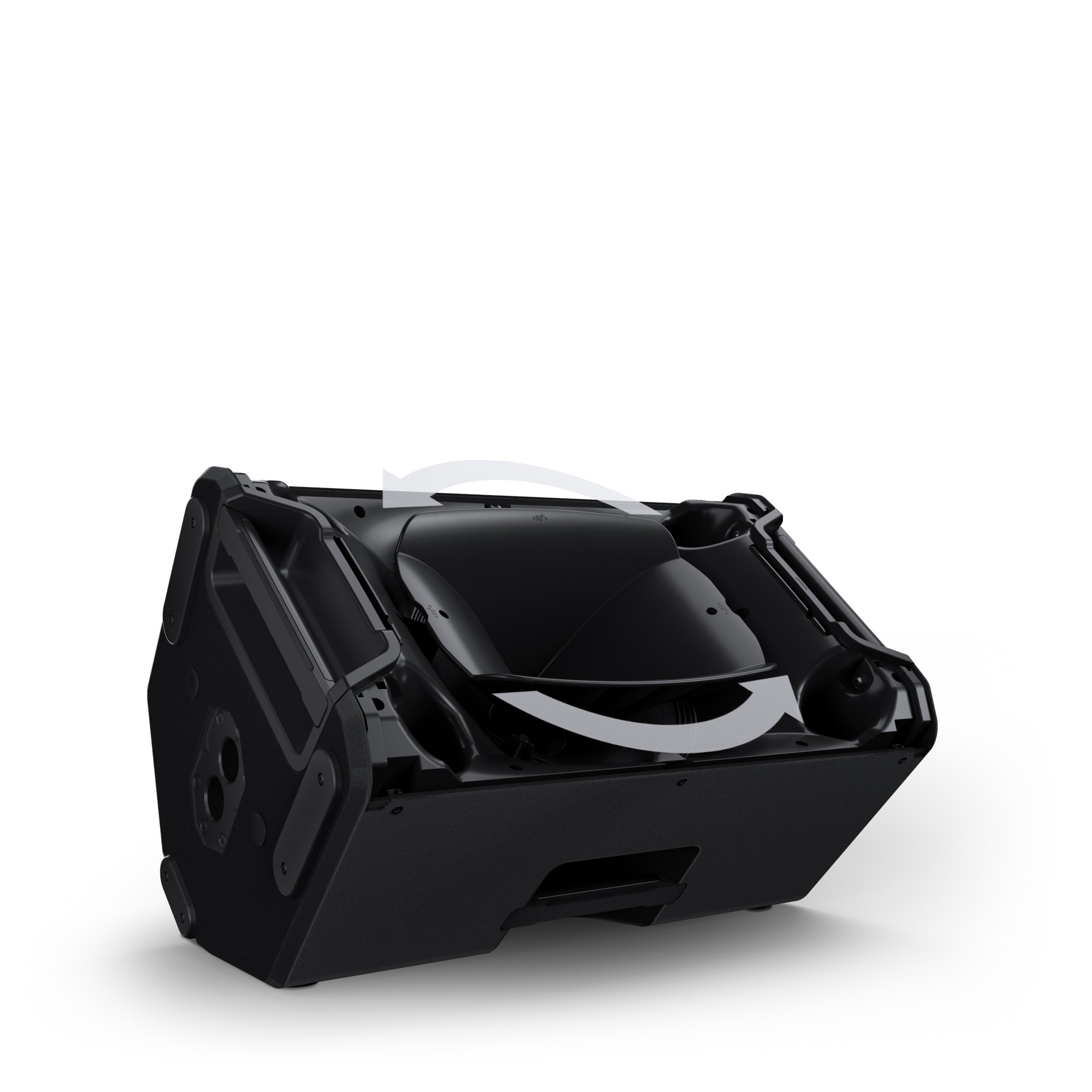

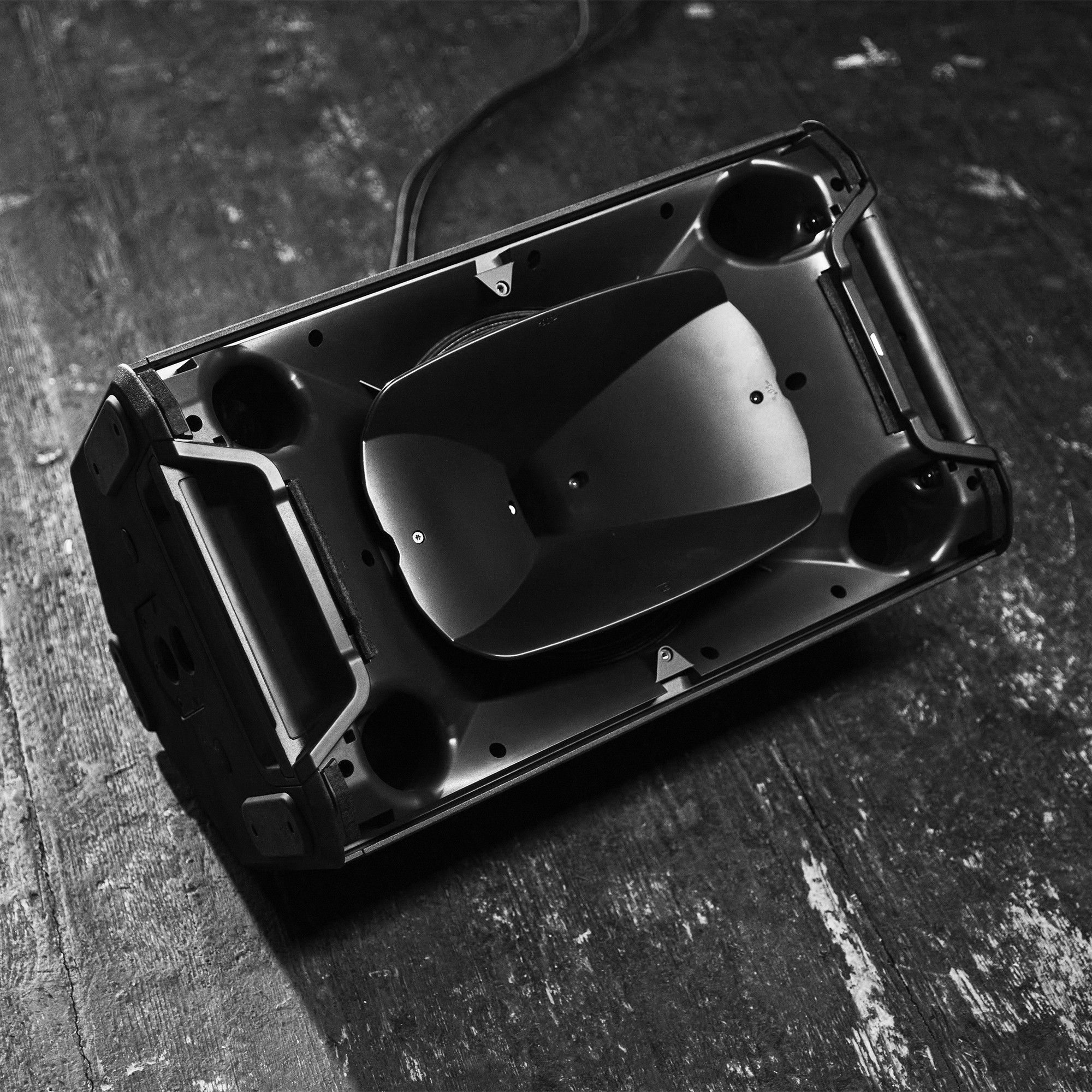

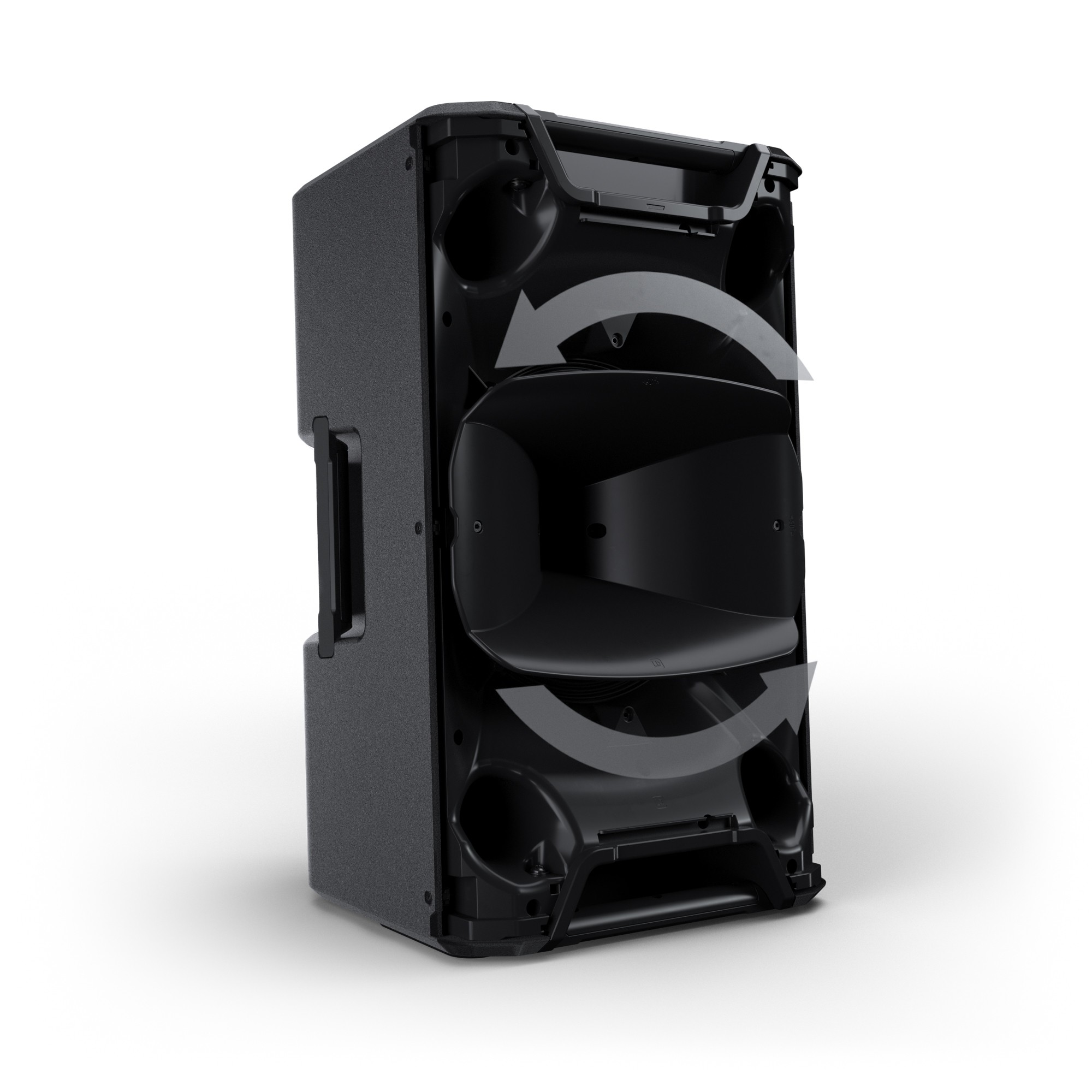

The BEM-optimised rotatable horn provides consistent dispersion while extending horn loading deep into the midrange, allowing sound energy to be focused exactly where it’s needed — especially beneficial in acoustically challenging environments.

Flow-optimised bass reflex ports deliver a solid low-frequency response down to 50 Hz, making the ICOA PRO 12 A a powerful full-range solution without requiring a subwoofer for many applications.

Advanced DSP & Control

The integrated SysCore® DSP ensures maximum audio quality and operational safety, even at high output levels. Features include:

• FIR/IIR crossover filtering

• Multiband limiters

• Input and master EQ

• Delay alignment

• Low-latency monitor preset

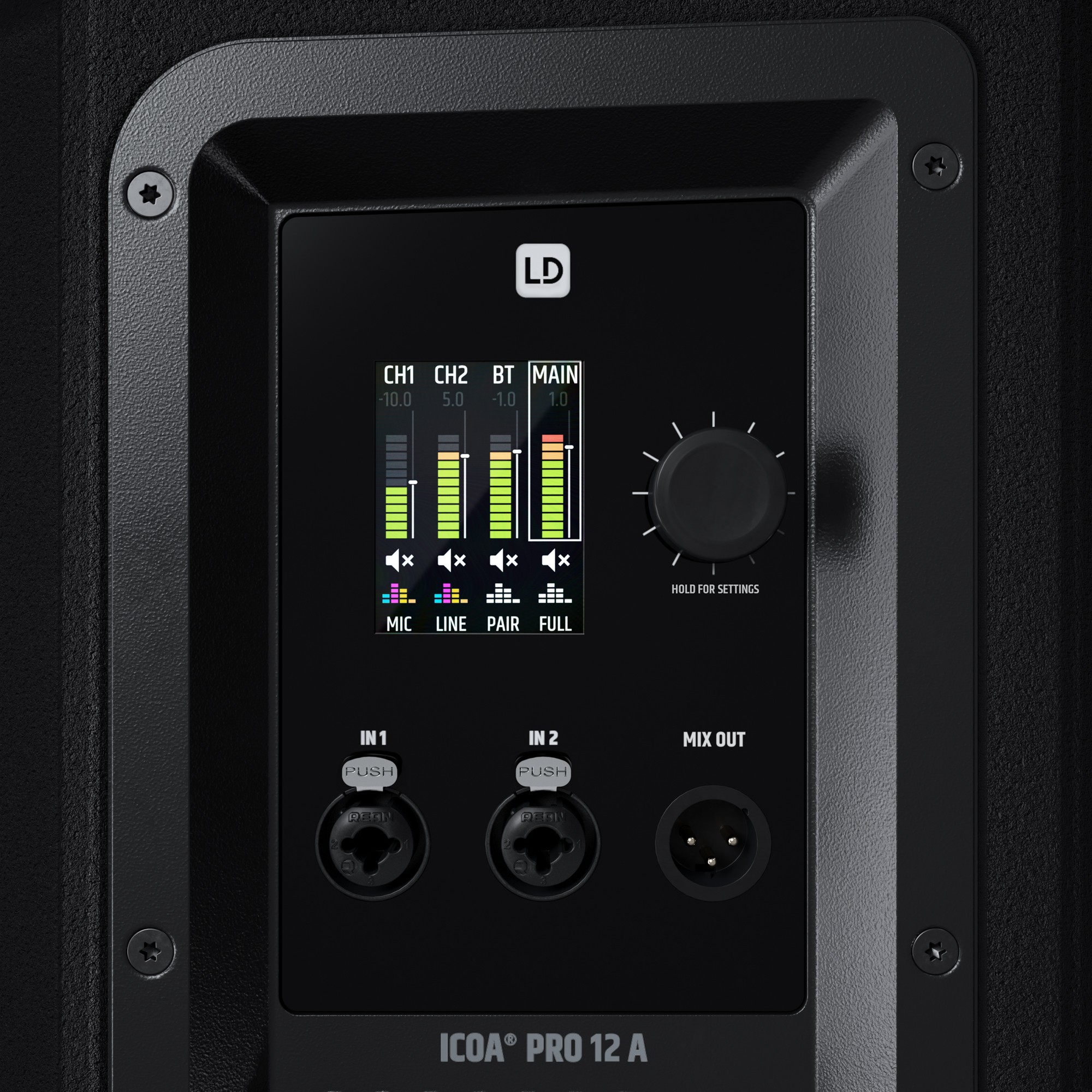

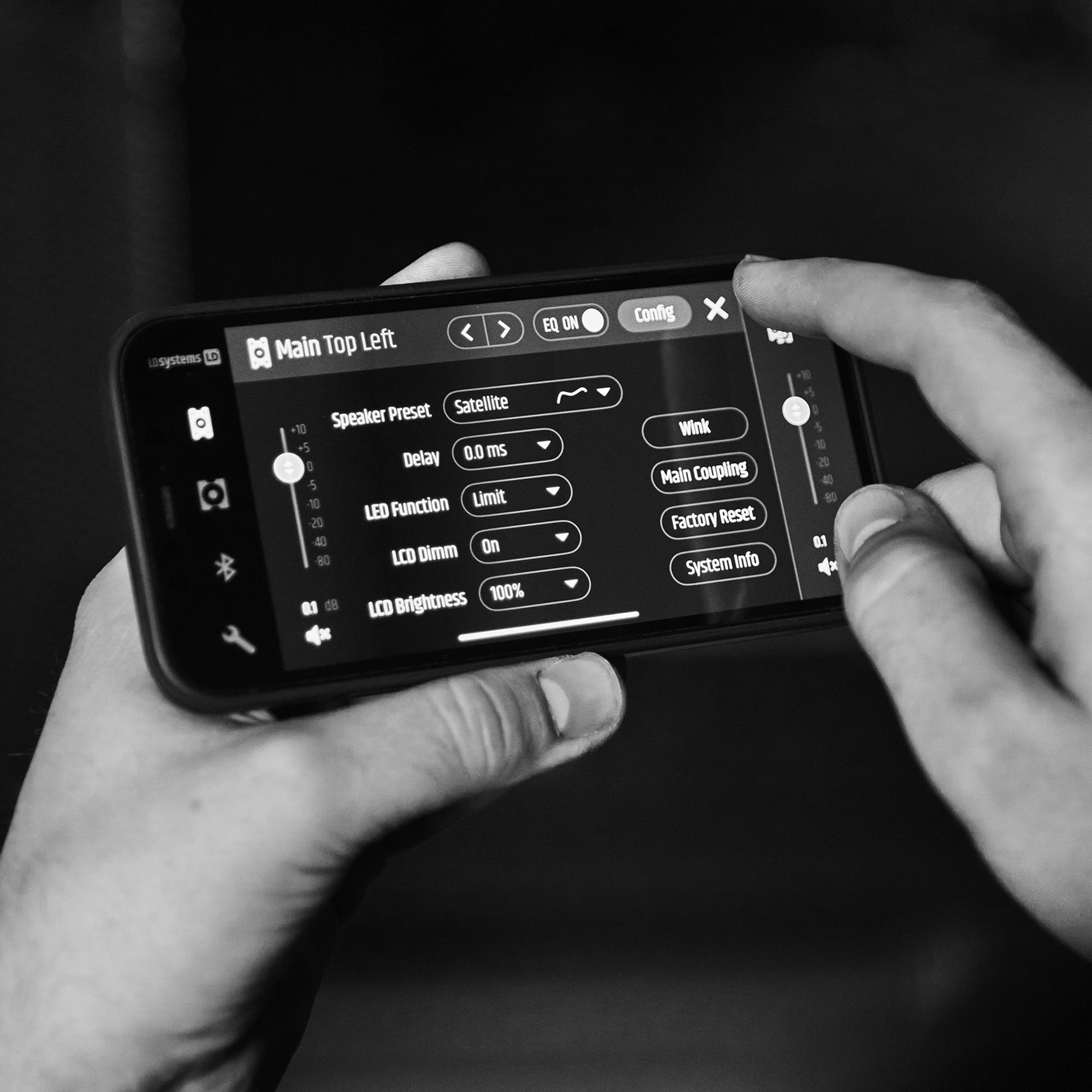

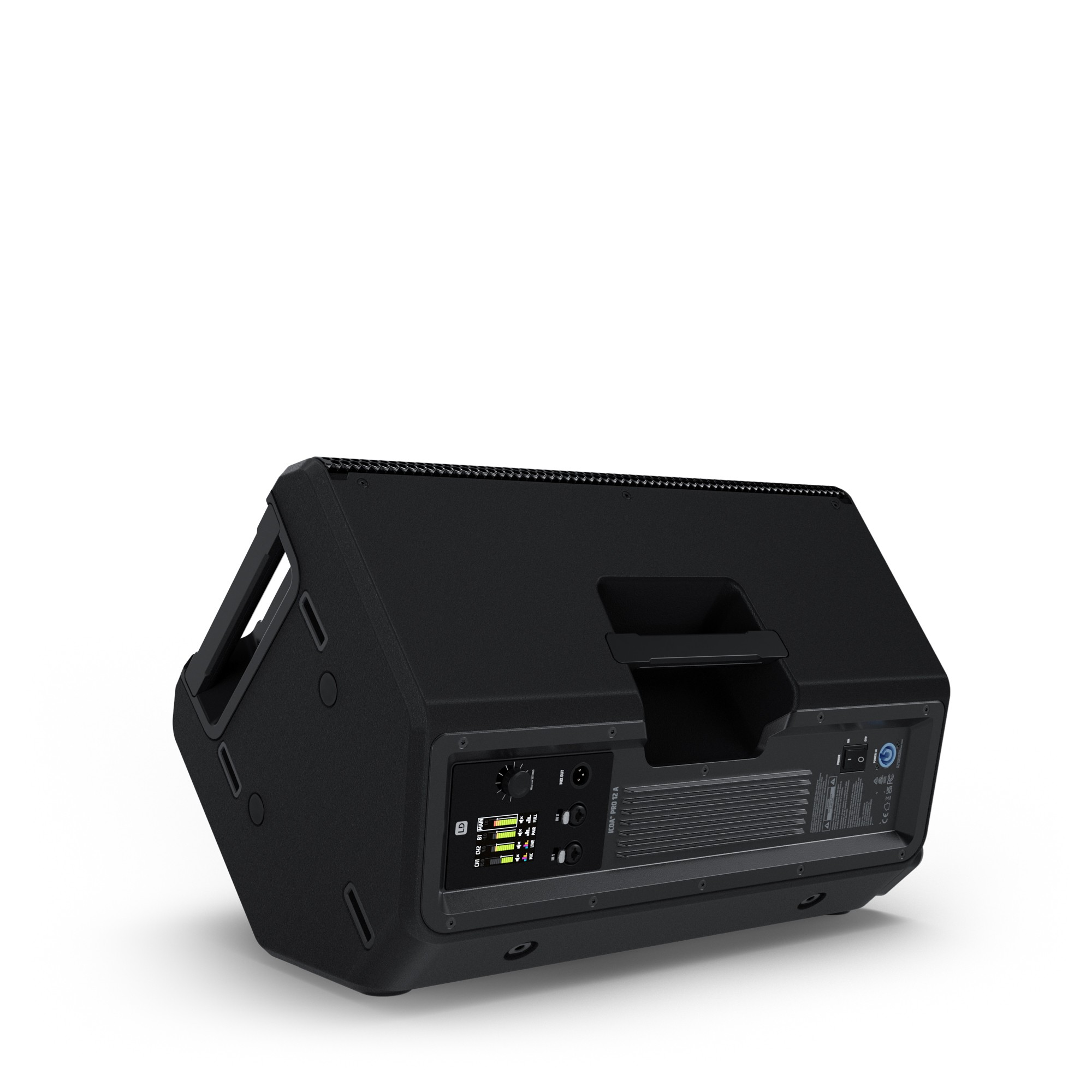

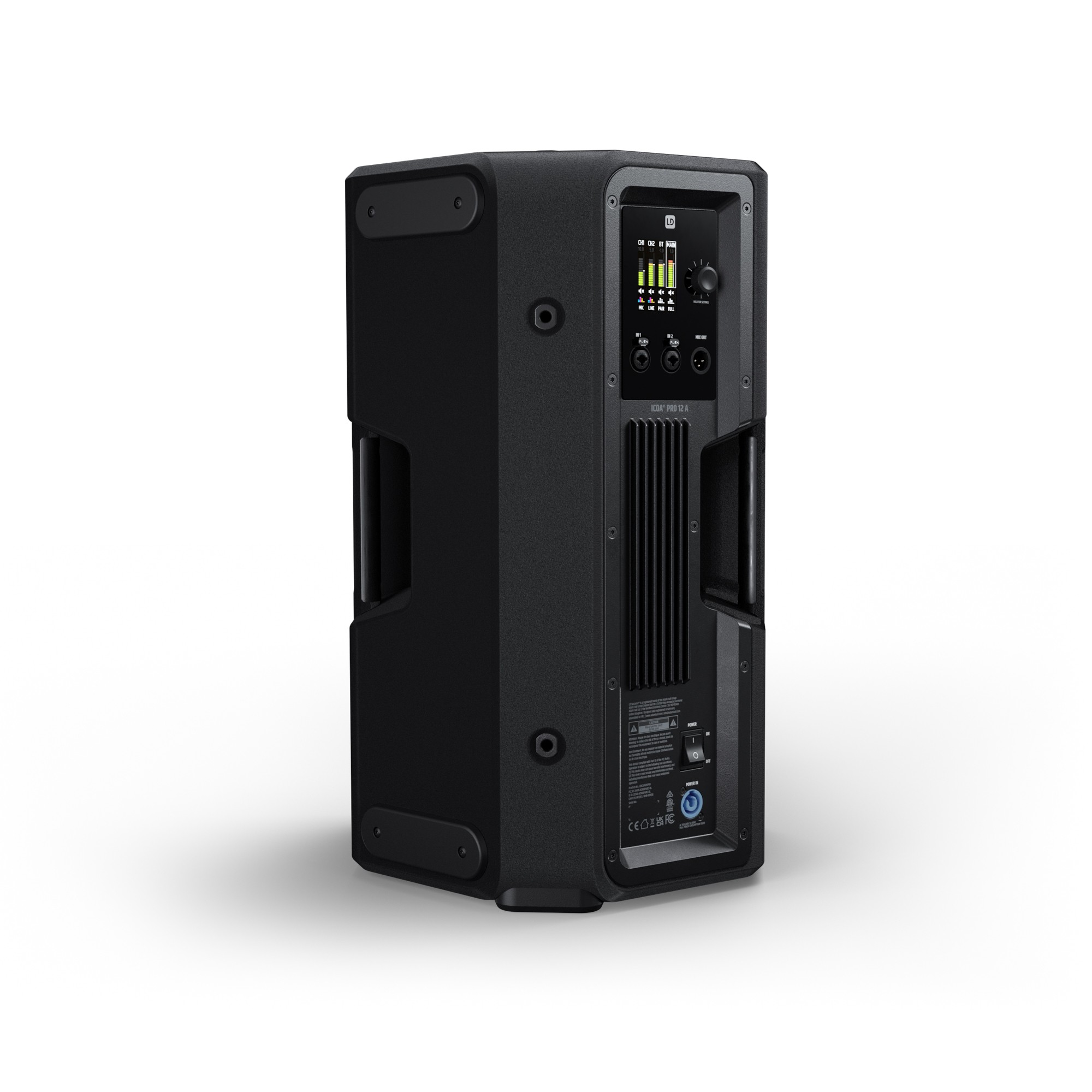

Control is available directly from the onboard colour display with single-knob navigation, or wirelessly via the ICOA PRO app, allowing fast setup and remote adjustment from smartphones or tablets.

Connectivity & Streaming

• 2 × Line/Mic combo inputs with individual gain control

• XLR mono mix output for daisy-chaining or system expansion

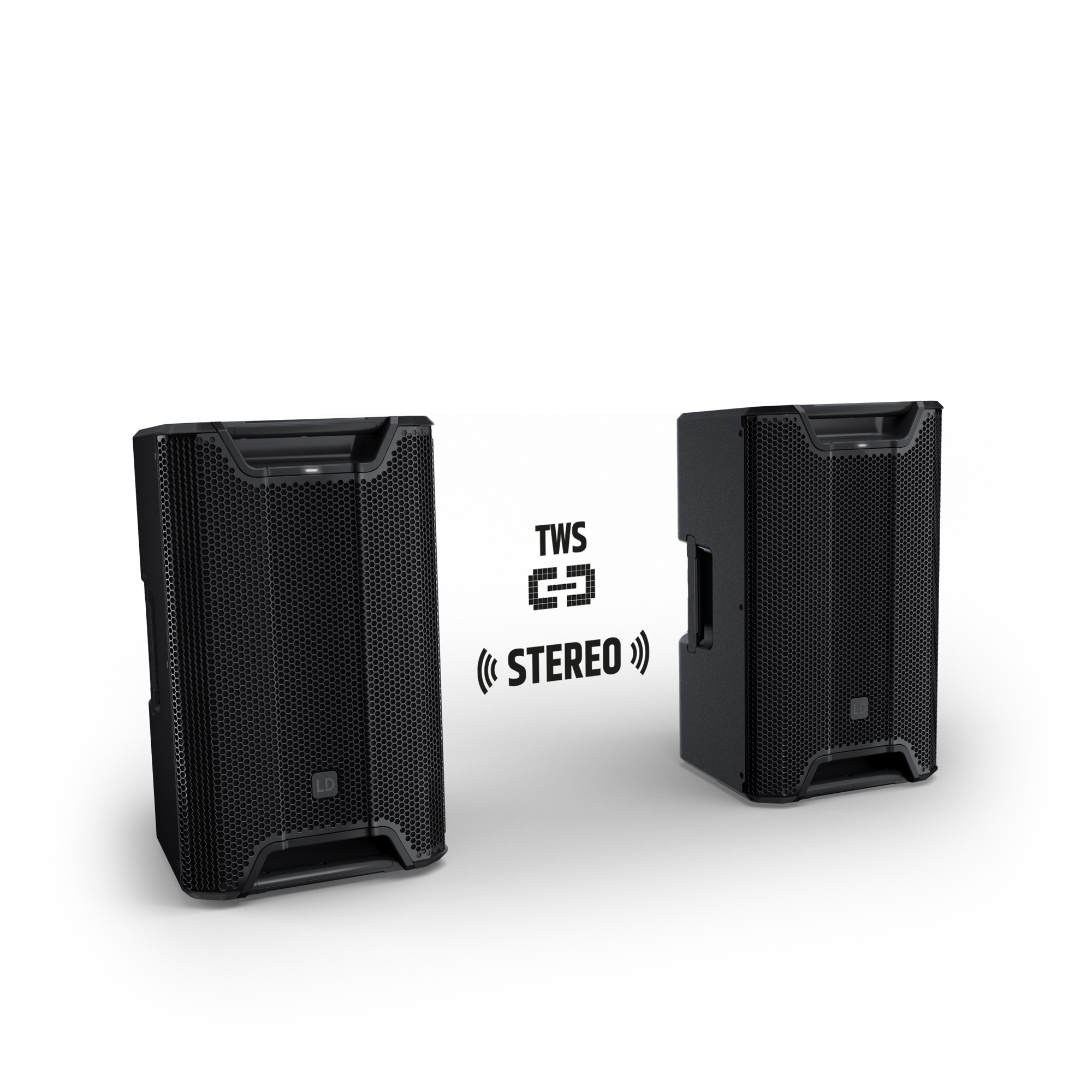

• Bluetooth® 5.1 with True Wireless Stereo (TWS)

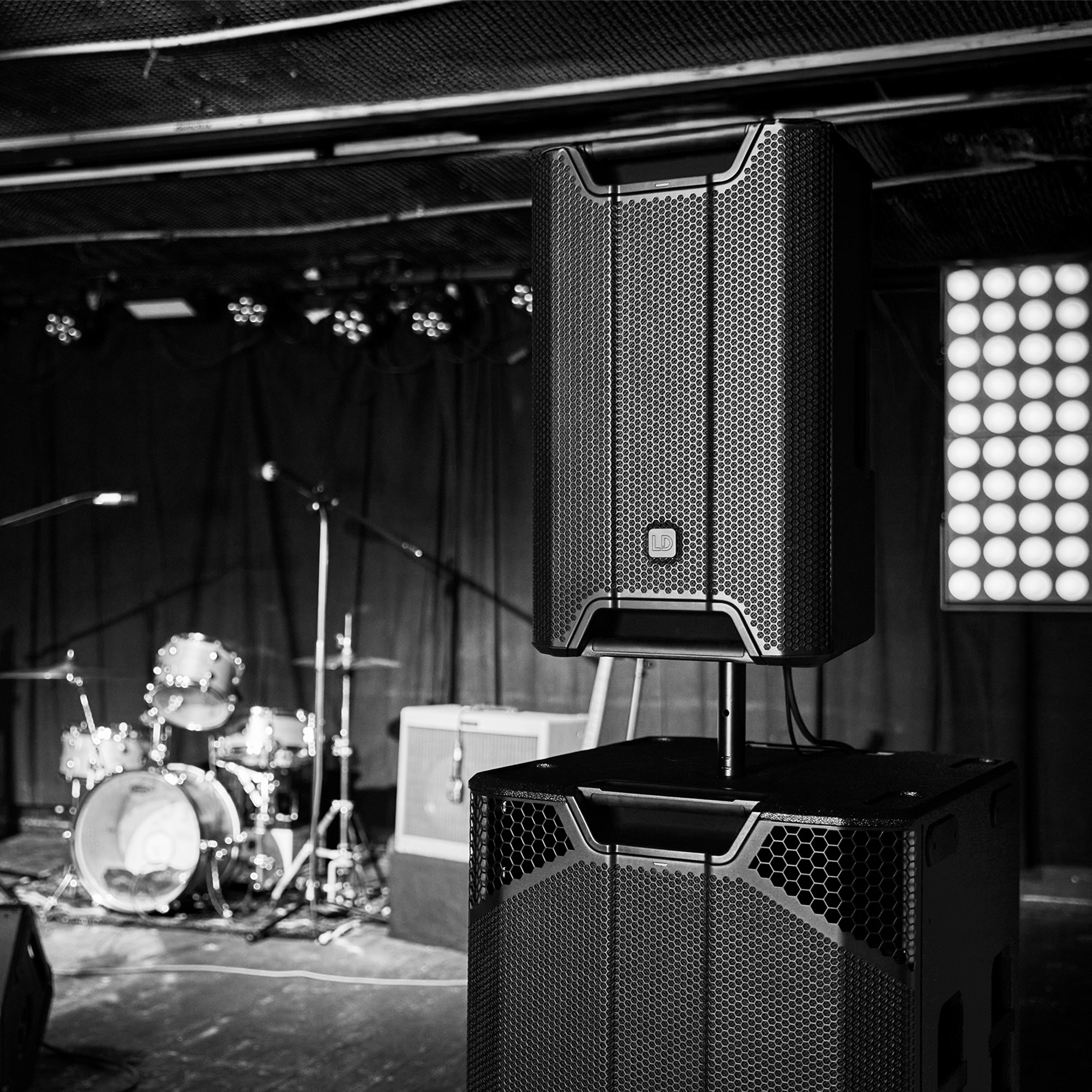

• App-based pairing supports stereo setups with two tops and up to four subs

Flexible Mounting & Durability

Designed for real-world use, the ICOA PRO 12 A features:

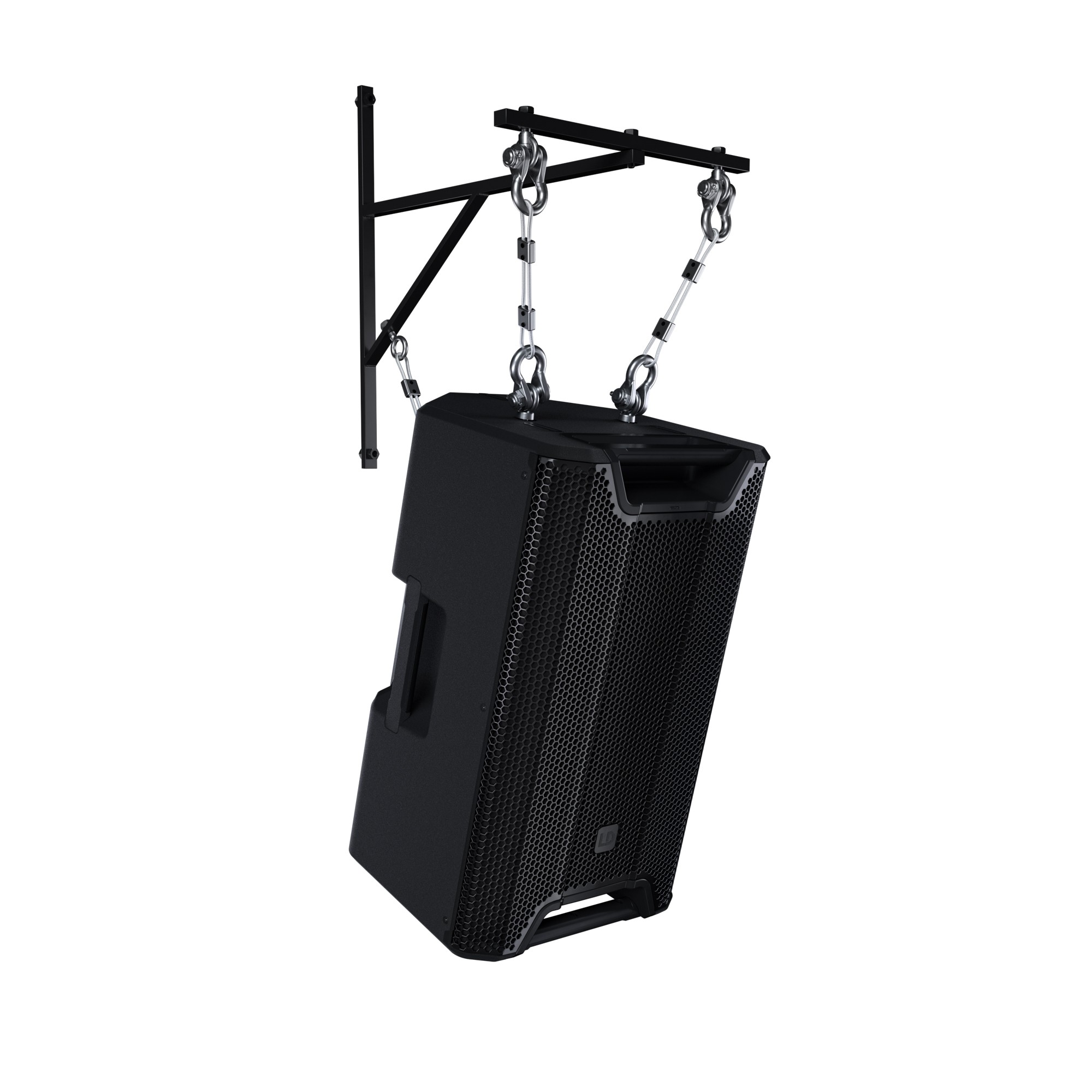

• 6 × M10 flying points for permanent installations

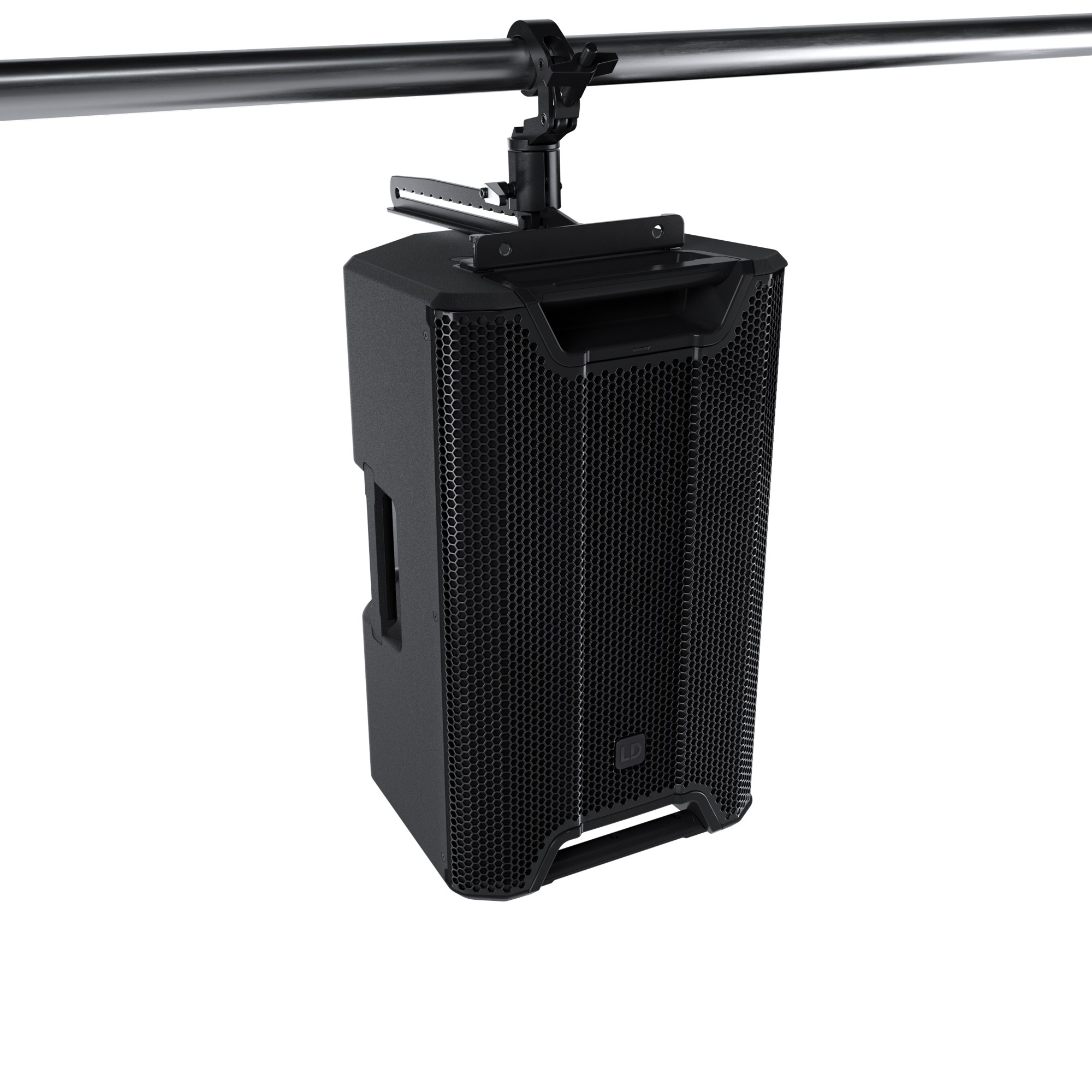

• EasyMount® truss compatibility for tool-free mounting

• 35 mm pole mount with selectable tilt angles

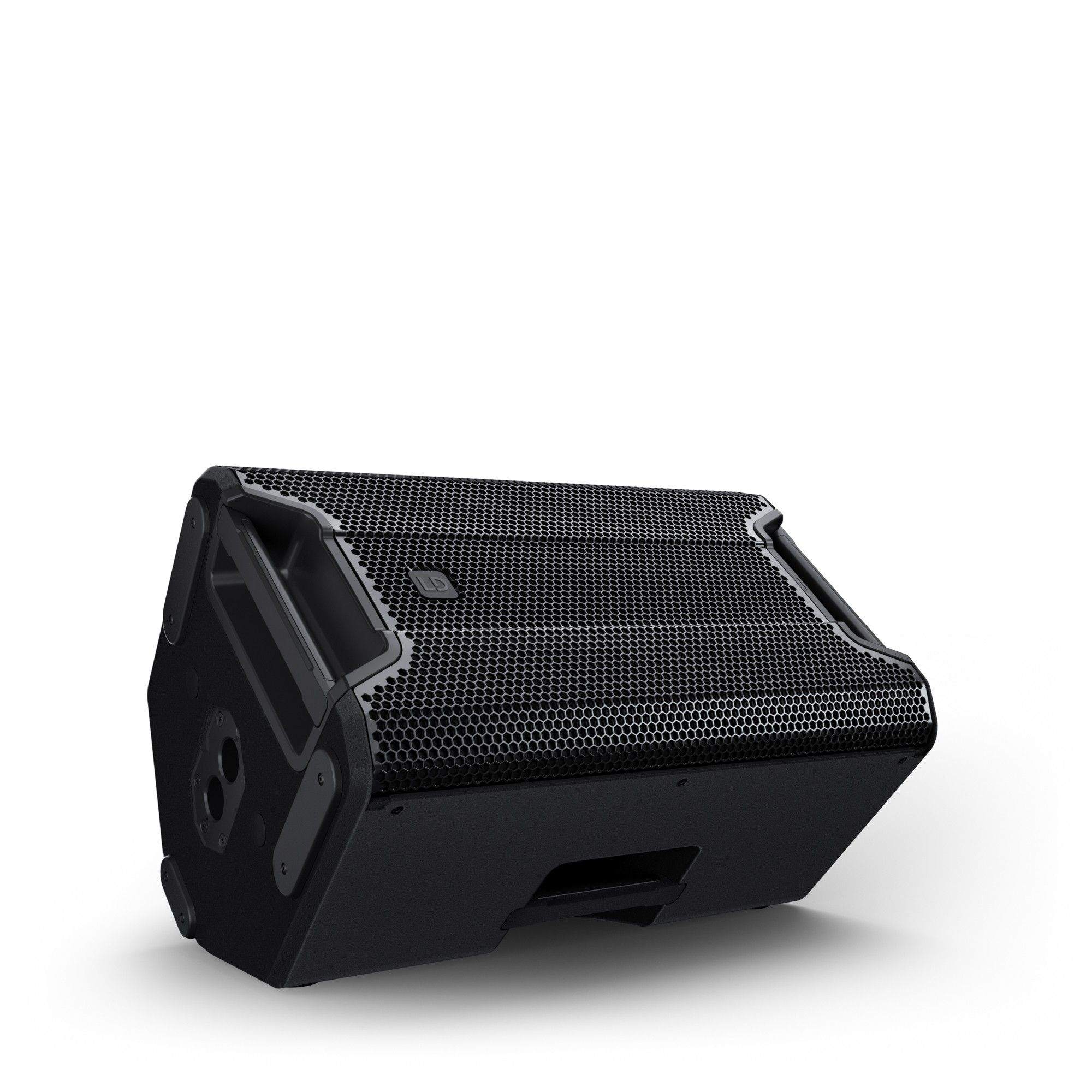

• 50° monitor angle for stage monitoring

• Ultra-robust ABS enclosure with internal steel construction

• Shock-resistant steel grille

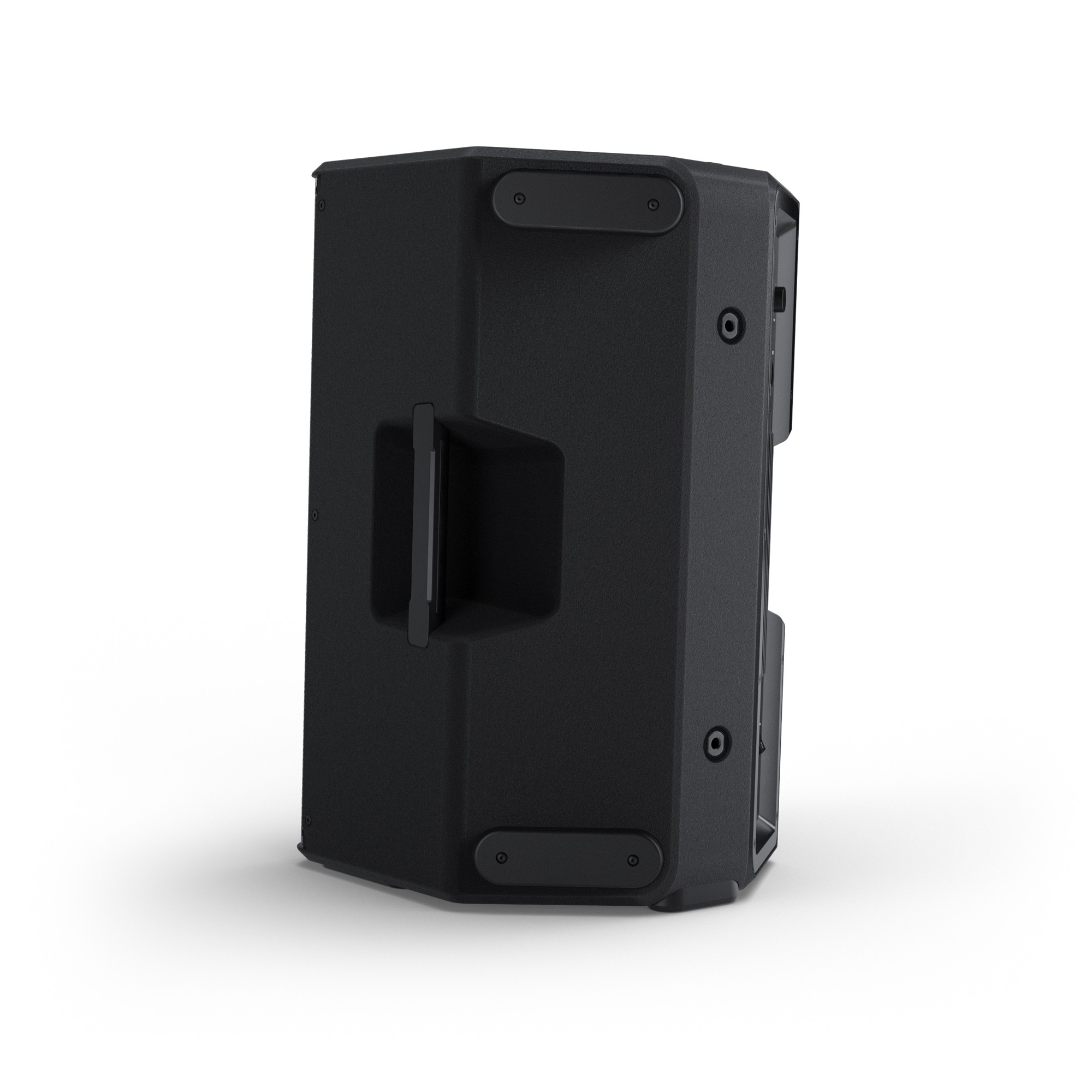

• Four ergonomic carry handles

Optional padded, water-repellent protective covers are available for transport and outdoor use.

Technical Specifications

General

• Type: Active PA loudspeaker

• System: 2-way coaxial (Common Motor Design)

• Amplifier class: Class D

• RMS power: 1000 W

• Peak power: 2000 W

Audio Performance

• Max SPL (pink noise): 133 dB

• Max SPL (sine burst): 127 dB

• Frequency response (-10 dB): 50 Hz – 20 kHz

• Crossover frequency: 800 Hz

• Dispersion: 90° (horizontal) × 50° (vertical)

• Monitor angle: 50°

Drivers

• LF driver: 12″ woofer, 3″ voice coil

• HF driver: 3″ titanium compression driver

DSP & Protection

• FIR/IIR filters

• Multiband limiter

• Thermal, short-circuit & DC protection

Connectivity

• Inputs: 2 × Line/Mic (XLR/TRS combo)

• Outputs: XLR mono mix out

• Bluetooth: Version 5.1 (TWS supported)

Cabinet & Mounting

• Housing: ABS with steel reinforcement

• Rigging: 6 × M10

• Pole mount: 35 mm, dual tilt (0° / 5°)

• Colour: Black

Ideal Applications

• Live sound & DJ systems

• Stage monitoring

• Corporate AV & events

• Houses of worship

• Clubs & venues

• Permanent installations
