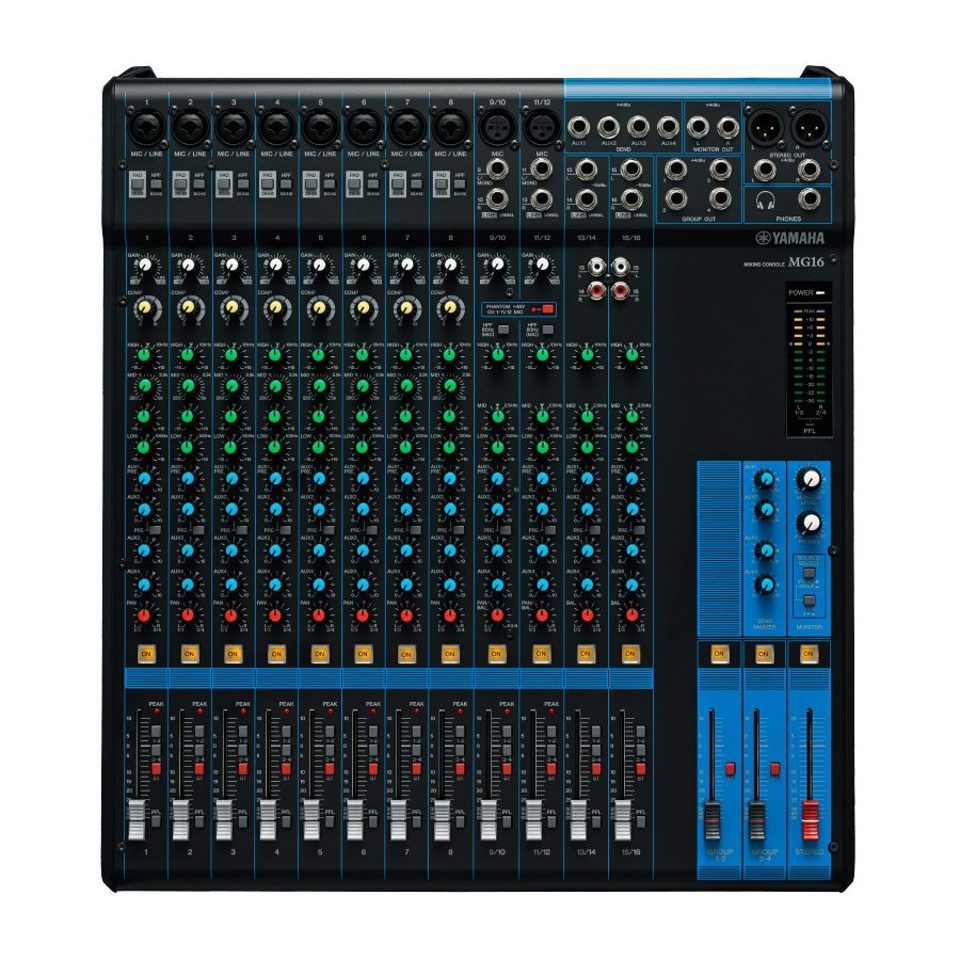

16ch Mixer Yamaha MG16

Product Features

“D-PRE” mic preamps with an inverted Darlington circuit
1-Knob compressors
Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
4 GROUP Buses + 1 Stereo Bus
4 AUX (incl. FX)

Feature-rich and delivering outstanding sound quality, the Yamaha MG16 Analog Mixer is well-suited for portable rigs or permanent installations. The MG16’s quality op-amp ensures that your mix sounds transparent and articulate. The MG16’s crystal clear D-PRE preamps will squeeze every drop of tone from your mics, with natural-sounding bass and smooth highs. Featuring switchable phantom power, a pad switch, one-knob compressors, EQ, plenty of I/O, and LED metering, the MG16 can take on just about any task you throw at it. Utilising many state-of-the-art features from Yamaha’s high-end consoles, the MG16 is ready to work for you!
Key Features:

16-Channel standalone mixer (no USB or effects)
Featuring studio-grade discrete class-A D-PRE preamps with inverted Darlington circuit – providing fat, natural sounding bass and smooth, soaring highs
3-band EQ and high-pass filters give you maximum control and eliminate unwanted noise, resulting in a cleaner mix
1-Knob compressors allow easy control – resulting in livelier guitars, punchier bass lines, a tighter snare and a cleaner vocal sound.
MG Series mixers feature a rugged, impact-resistant, powder-coated metal chassis

Specifications

I/O


Phantom power
+48 V

Input Channels


Mono[MIC/LINE]
8

Mono/Stereo[MIC/LINE]
2

Stereo[LINE]
2

Output Channels


STEREO OUT
2

MONITOR OUT
1

PHONES
1

AUX SEND
4

GROUP OUT
4

Bus Stereo
1, GROUP: 4, AUX: 4

Input Channel Function


PAD
26 dB (Mono)

HPF
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)

COMP
1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB Attack time: approx. 25 msec, Release time: approx. 300 msec

EQ HIGH
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving

EQ MID
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking

EQ LOW
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving

PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping

General specifications


Total harmonic distortion
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min

Frequency response
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min

Hum & noise level


Equivalent input noise
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)

Residual output noise
-102 dBu (STEREO OUT, STEREO master fader: Min)

Crosstalk
-78 dB

Power requirements
AC 100 – 240 V, 50 / 60 Hz

Power consumption
30 W

Dimensions


W
444 mm

H
130 mm

D
500 mm

Net weight
6.6 kg

Others


Operating Temperature
0 to +40˚C
