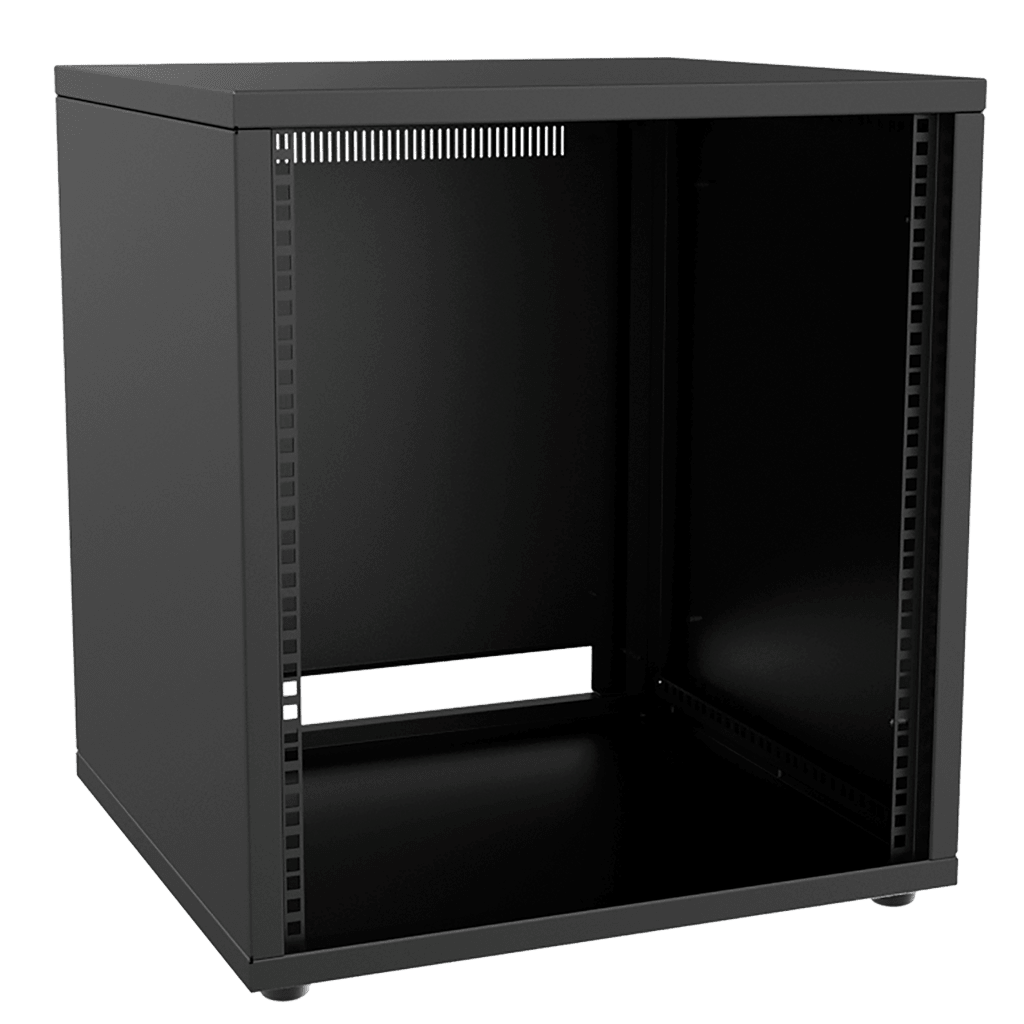

The PR212 is a professional 19” metal rack compliant to ANSI/EIA RS-310D, DIN41491, IEC 60297 standards. The rack comes in a flat pack as DIY kit. It is a solid construction with a 1.5 mm thick cold rolled steel frame and plates, finished with a black (RAL9004) fine structured powder coating. The rack is provided with punched rack profiles for use with snap-in cage nuts on the front side and stores up to 12 units. The rear panel can be screwed off for easy installation and has a cable entrance on the bottom. Optional available wheels provide mobility to the equipment.
PRODUCT FEATURES
Dimensions
540 x 587 (605) x 500 mm (W x H (incl. feet) x D)
Unit height
12 HE
Weight
20.500 kg
Colours
Black (RAL9004)
Max. usable depth
475 mm
Accessories
Optional
KM600 – M6 Cage nuts
KS600 – M6 x 16 mm bolt DIN7985 Black
PR210WS – Wheel set for PR2xx racks
Highlights
Stores up to 12 units of 19” Equipment
Punched square holes for use with snap-in cage nuts
Cable entry on bottom
1.5 mm thick cold rolled steel frame
Easy assembly in 5 minutes
Removable rear panel
Variants
PR212/B – Black
Downloads
INFORMATION SHEET ENGLISH
Product information sheet
TECHNICAL DRAWINGS
Technical drawing (.pdf)
Technical drawing (.dwg)
CERTIFICATES
Declaration of conformity (.pdf)
