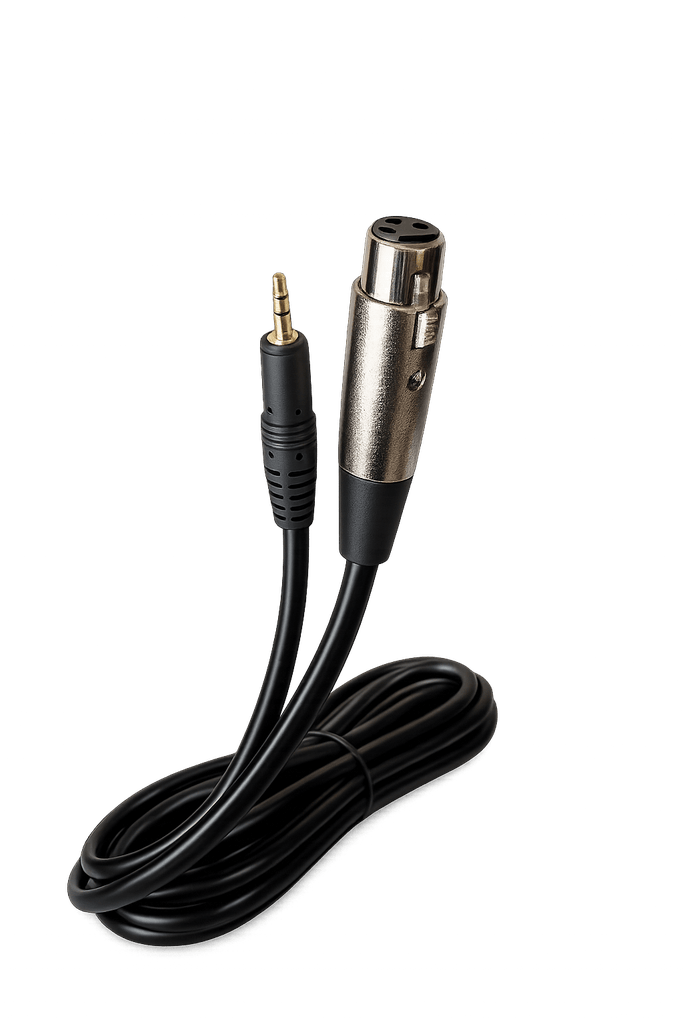

2.5m XLR Female to 3.5mm TRS Microphone Cable

Connect a Professional XLR Microphone to a 3.5mm Input

This 2.5 metre XLR Female to 3.5mm TRS cable allows you to connect a standard XLR microphone to devices with a 3.5mm mic input such as DSLR cameras, recorders, laptops, wireless transmitters, and portable audio interfaces.

Wired specifically for unbalanced operation, making it ideal for short-run microphone connections into consumer or semi-pro equipment.

🔧 Wiring Configuration (Unbalanced)

• Tip + Ring → XLR Pin 2 (Hot)

• Sleeve → XLR Pins 1 & 3 (Shield & Cold tied together)

This wiring safely converts a balanced XLR signal to an unbalanced 3.5mm TRS input.

⚠ Important: Not suitable for use with 48V phantom power unless confirmed compatible with your equipment.

📏 Specifications

• Length: 2.5 metres

• Connector A: XLR Female (3-Pin)

• Connector B: 3.5mm TRS Male

• Wiring: Unbalanced

• Shielding: Braided shield for noise reduction

• Application: Microphone to 3.5mm mic input

🎤 Ideal For

• DSLR & mirrorless cameras

• Portable audio recorders

• Laptop microphone inputs

• Wireless beltpack transmitters (3.5mm mic input models)

• Podcast & streaming setups

✅ Why This Cable?

• Clean signal conversion from XLR mic to mini jack input

• Reliable soldered connections

• Flexible cable for easy routing

• Perfect length for camera rigs and portable setups

Installation Note

Always confirm your device uses a TRS mic input and not a TRRS headset input. If your device requires TRRS (smartphone style), a TRRS adapter may be needed.

If you need a simple, reliable way to connect an XLR microphone to a 3.5mm input, this 2.5m unbalanced cable is a practical solution for studio, camera, and portable recording use.
