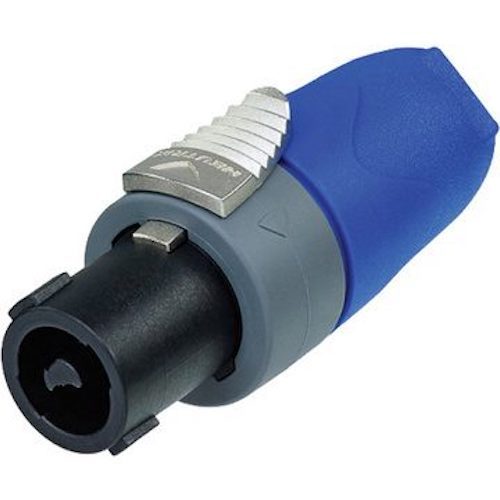

The NL2FX from Neutrik is a two pole female speakON loudspeaker connector for cables that are 6 to 10mm in diameter. This industry-standard loudspeaker connector offers robust cable connection with a reliable locking system. It features solid contacts with screw-type terminals and includes stranded wire protection which also offers solder termination. The connector has been designed to operate in the high current, inductive load environment of commercial loudspeakers.
Key Features
- Current rating 40A continuous, 50A audio signal with 50% duty cycle
- Consists only of three parts, easy to assemble
- High impact materials – long-lasting and reliable
- Easy and extremely precise locking system “Quick Lock”
- One piece strain relief, chuck for 6 to 10mm cable OD
- Improved grip on latch
- Mates with 4-pole chassis connector as well and makes contact with +1/-1
Specifications
| Type | Female speakON |
| Electrical | Contact Resistance: <2mΩ (inner) (after lifetime) Dielectric Strength: 4 kVDC (peak) Insulation Resistance: >1GΩ (after damp heat) Rated Current per Contact: 40 A RMS continuous Rated Current per Contact: 50 A audio signal, duty cycle 50% Rated Voltage: 250 V (insulation) |
| Mechanical | Cable OD: 6 to 10 mm Cable Retention: >220 N (subject to cable OD and material) Lifetime: >5,000 mating cycles Wire Size: 1.5 to 4 mm² Wire Size: 16 to 12 AWG Wiring: Screw type terminals or soldering Locking Device: Quick Lock (latch) |
| Material | Contact Plating: 4 µm Ag Contacts: Brass (CuZn39Pb3) Insert: PBTP 20% GR Locking Element: Zinc die cast (ZnAl4Cu1) Shell: PBTP 20% GR Strain Relief: Polyacetal (POM) |
| Environmental | Flammability: UL 94 HB Soldering: Complies with IEC 68-2-20 Temperature Range: -22 to 176°F (-30 to +80°C) |
