Features and Benefits
- HDMI® 4K High Speed 18Gbps and HDCP 2.2 compliant
- Supports resolutions up to 4K2K@60Hz with 24bit RGB/YCbCr 4:4:4
- EDID control with eight settings and HDCP switch
- Supports LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio
- Threaded DC power port for secure power supply connection
- Compact design for an easy and flexible installation
Product Summary
HDMI® 4K High Speed 2 way splitter with built-in scaler to allow 4K signal to downscale to 1080p. Video scaling allows content shared across two displays with different resolution capabilities; one could be displaying 4K while the 2nd display could be 1080p.
Specifications
| Video Input | |
|---|---|
| Input | (1) HDMI |
| Input Connector | (1) Type-A female HDMI |
| HDMI Input Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2 .3, 1.4 compliant |
| CEC | Supported |
| Video Output | |

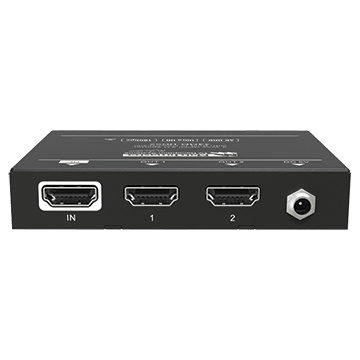

| Output | (2) HDMI |
| Output Connector | (2) Type-A female HDMI |
| HDMI Output Resolution | Up to 4Kx2K@60Hz 4:4:4 8bit |
| HDMI Standard | 2.0 |
| HDCP Version | 2.3, 1.4 compliant |
| CEC | Supported |
| Control | |

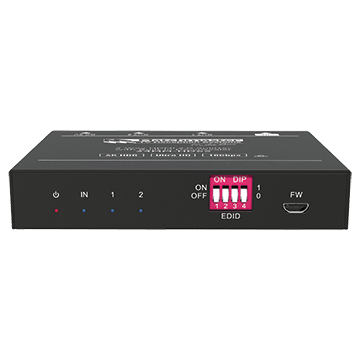

| Control Part | (1) EDID 4-pin DIP switch, (1) Micro-USB port |
| General | |
| Bandwidth | 18Gbps |
| HDMI 2.0 Cable Length | 4K@60Hz 4:4:4 ≤ 5m, 4K@60Hz 4:2:0 ≤ 15m, 1080p ≤ 20m |
| Operation Temperature | -10°c ~ +55°c |
| Storage Temperature | -25°c ~ +70°c |
| Relative Humility | 10%-90% |
| Power Supply | Input:100V~240V AC; Output: 5V DC 1A |
| Power Consumption | 1.5W (Max) |
| Dimension (WxHxD) | 96.0 x 17.6 x 70.4mm |
| Net Weight | 185g |
Note: Please adopt high-qualified HDMI cable fully compliant with HDMI 2.0 for reliable transmission and connection.
