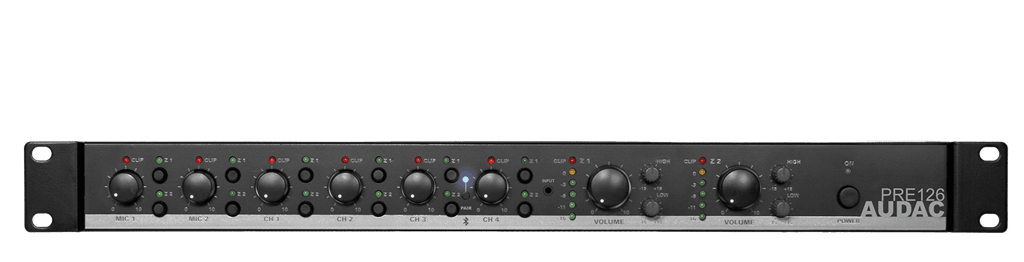

2 Zone 6 Channel Stereo Rack Mixer With Bluetooth

The PRE126 is two-zone 6 channel stereo preamplifier containing a variety of input possibilities for microphone and line level audio signals, offering a possibility for a wide range of small to medium sized audio installations in various kinds of applications with a two-zone audio distribution system. It features two balanced mono inputs with phantom power and three band tone control allowing connection of microphones or line level signal sources. The switchable talkover function suppresses background music if a priority signal is present, making it suitable for paging or voice file announcements. The four stereo line level inputs are implemented as a balanced one fitted with XLR connectors and three unbalanced ones fitted with RCA connectors. Hereby, connection possibilities for a wide variety of line level sources is guaranteed. Additionally, an integrated Bluetooth receiver (mixed with Ch 3) and 3.5 mm jack connection on its front panel (mixed with Ch 4) are offering convenient wired or wireless connection possibilties for portable and handheld devices including laptops, smartphones and tablets. A priority mute contact suppresses all (nonpriority) music sources in case of contact closure, allowing to link autonomous alarm systems. Input volume control is done using the corresponding rotary dials on the front panel, while routing is settings are made through zone selection buttons. Each output section features a 6-segment LED VU bar, a master volume control and 2-band tone control. Connections and input or output configurations such as gain adjustment and mono/stereo switching can be done through the provided controls on the back of the device.

SYSTEM SPECIFICATIONS

Inputs
Bluetooth receiver (mixed with Ch 3)


Front 3.5mm Jack (mixed with Ch )


Priority mute contact

Signal / Noise
> 90 dB

THD+N (@ 1 kHz)
70 dB

Frequency
Response (± 3 dB)
20 Hz – 20 kHz

Power
Supply
100 ~ 240 V AC / 50 ~ 60 Hz


Consumption
12 W

Inputs
Balanced Microphone
Type
2 x Balanced Microphone


Balanced Stereo
Type
1 x Stereo Balanced Line


Unbalanced Stereo
Type
3 x Stereo Unbalanced Line

Outputs
Balanced Stereo
Type
2 x Balanced Stereo outputs

Inputs
Balanced Microphone
Sensitivity (1W/1m)
-6 dB ~ -50 dB


Line
Sensitivity (1W/1m)
-20 dB ~ +4 dB


Microphone
Phantom Power
15 V DC

Outputs
EQ
Treble
15 dB (2.5~20 kHz)



Bass
15 dB (100 Hz)

Inputs
Balanced Microphone
EQ
High
15 dB (12.5 kHz)




Mid
15 dB (2.5 kHz)




Low
15 dB (80 Hz)

PRODUCT FEATURES

Dimensions
482 x 44 x 335 mm (W x H x D)

Weight
4,10 kg

Unit height
1 HE
