3 Pole Male XLR Cable Connector (Black / Silver Contacts)

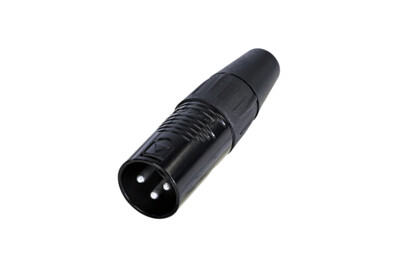

The REAN RC3M-BAG is a robust 3 pole male XLR cable connector designed for professional audio cable assembly and installation work.

Manufactured by REAN, part of the Neutrik group, the RC3M series delivers reliable performance and long service life at an excellent price point.

The RC3M-BAG variant features a black plated zinc housing paired with silver-plated contacts, supplied in plastic bag packaging. It is ideal for building microphone cables, balanced XLR leads, patch looms, and production wiring.

🔧 Key Features

• Connection Type: XLR

• Gender: Male

• Poles: 3

• Housing: Black plated zinc

• Contacts: Silver plated

• Rated Current: 10A

• Contact Resistance: ≤ 5 mΩ

• Insulation Resistance: > 1.5 GΩ

• Cable O.D.: 4 – 7 mm

• Wire Size: Up to 1.5 mm² (16 AWG)

• Mating Cycles: > 1000

🛠 Construction & Materials

• Durable zinc housing

• Reinforced PA6 + 30% GF plastic body

• POM chuck and push ring

• PVC boot

• Bronze contacts

• Steel ground contact

Engineered for consistent performance in live sound, touring, studio, and fixed installation environments.

🎯 Ideal For

• Microphone cable builds

• Balanced XLR audio cables

• Stage and touring applications

• Rental stock cable assembly

• AV installation projects

Reliable, professional, and cost-effective — the RC3M-BAG is the perfect match for the RC3F-BAG female connector when building high-quality XLR leads.
