4-2 Hidden IR Distribution System Kit

The IR6000 System is a modular infrared extension system and the components required are available individually. This system can be used universally and is suitable for just about any situation. You can extend the IR (infrared) signals of remote controls. It makes sure that all your AV components receive the commands sent from your existing IR remote controls. You can keep all your devices behind in closed cabinets but still keep them in use with this device. Simply place the hidden IR repeater box in the cabinet or closet, affix it to the included IR emitters/IR blaster, then place a receiver somewhere near your television and the system will let you control up to numerous individual home theatre components using your existing IR remote control.

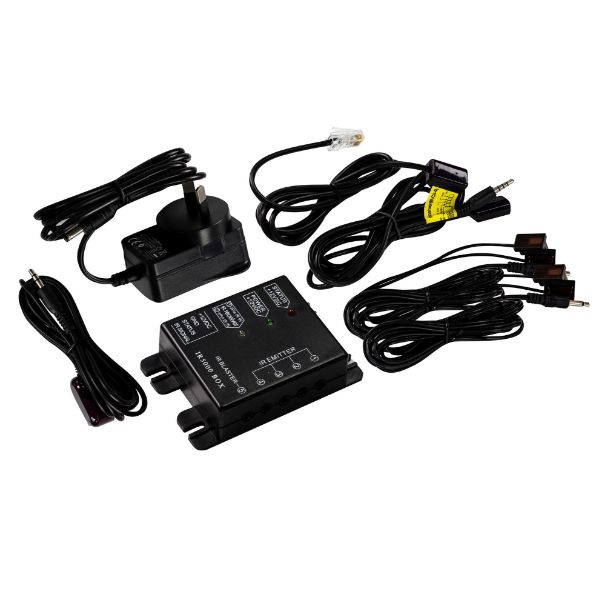

Includes:

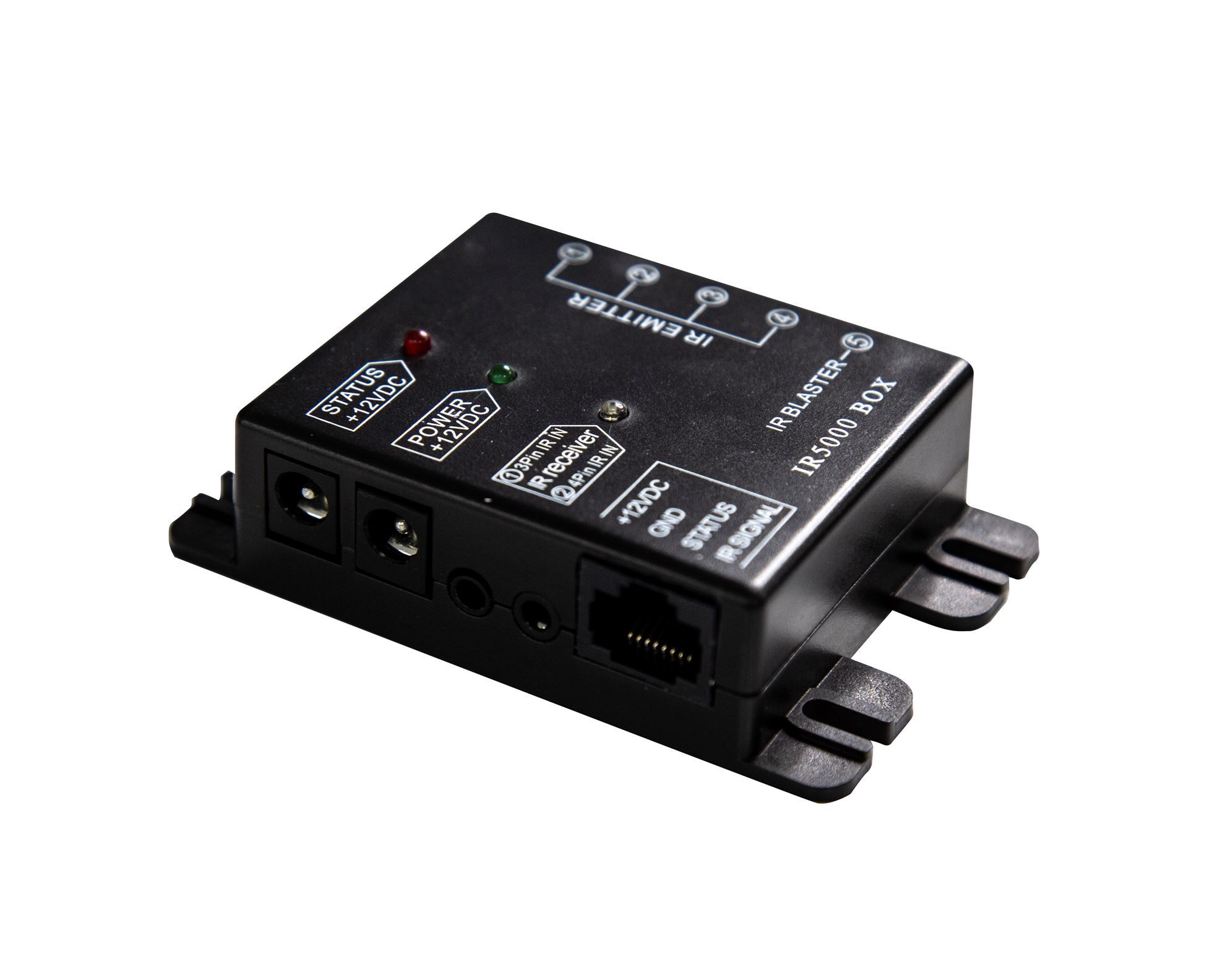

1x Hidden IR Repeater Box

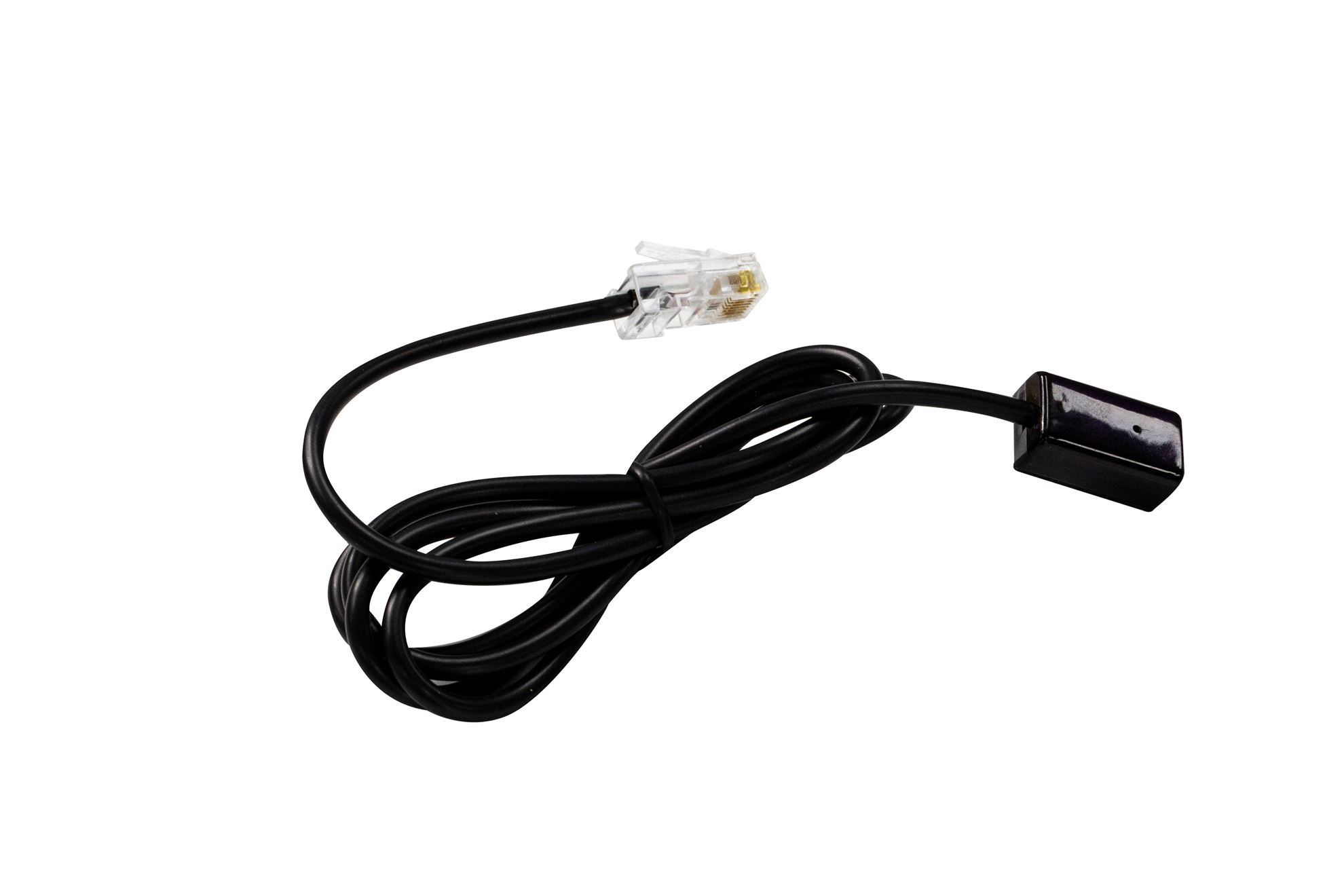

1x RJ45 IR Receiver
1x Stereo IR Receiver
2x Dual IR Emitters
1x IR Blaster
1x AU Power Adapter

IR Module

Power Supply
DC 12V/250mA, supplied from connected IR6000 box

IR Input
1x 3.5mm jack connector for IRCV-3 receiver (3 conductor plug)1x 3.5mm jack connector for IR-CV-4 receiver (4 conductor plug)

IR Emitter Output
4x 3.5mm jack connector for IR-EM-3 Emitter1x 2.5mm jack connector for IR-Blaster

RJ45 Port
Extra RJ45 IR Receiver can be connected to this input or you can use the cat cable together with the RJ45 IR Receiver to extend the IR signal reception

Status Indication
Green LED for On/Off indication

IR Signal Indication
Blue indication LED

Power Indication
Red indication LED

Dimensions
55 x 85 x 23mm

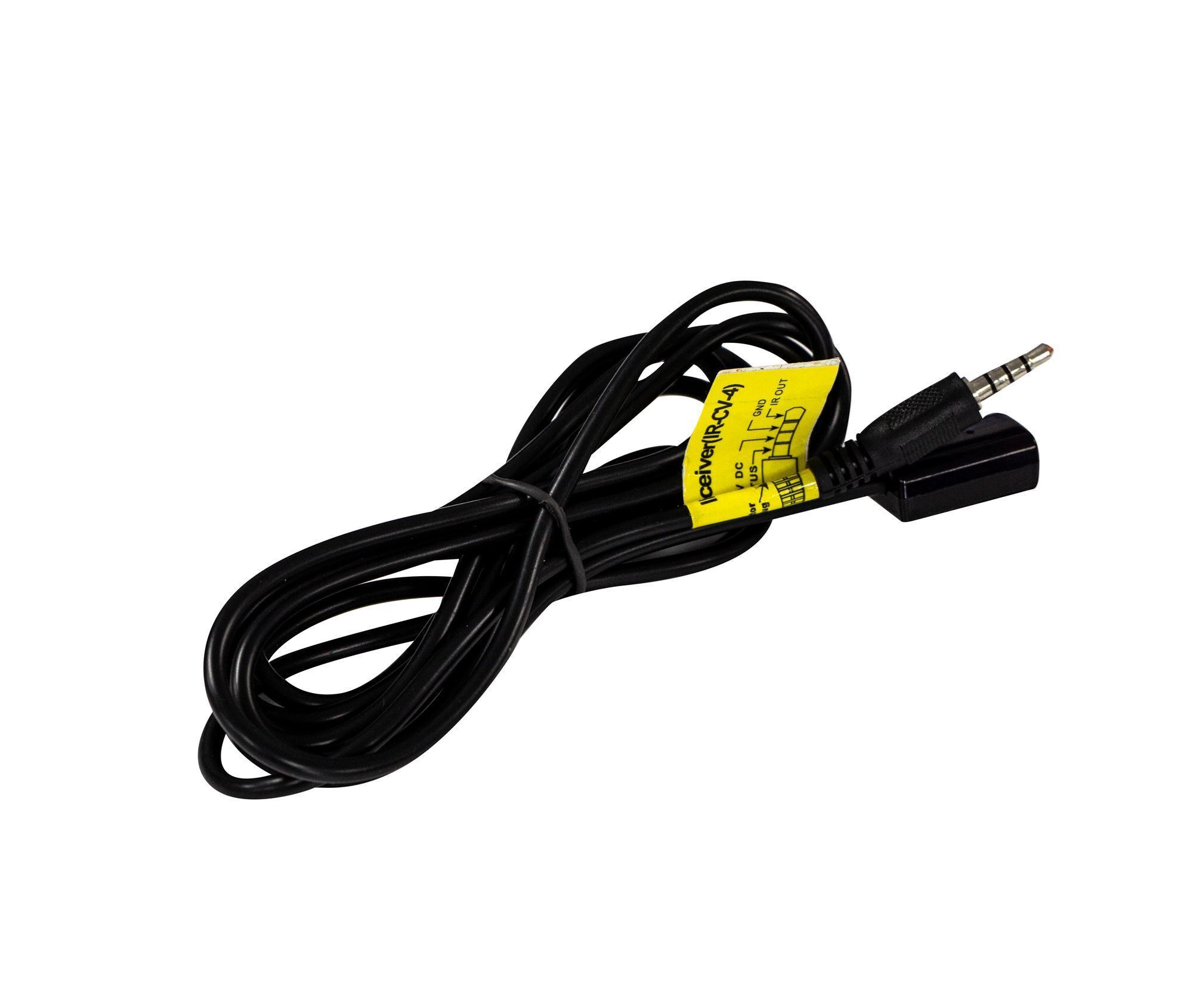

IR Receiver (IR-CV-4, IR-CV-5)

Frequency Range
25 ~ 60KHz

IR Reception Range
±10m

Status Indication
Green LED for system On/Off indication

IR Signal Indication
Blue indication LED

IR Reception Angle
90º (+45º/-45º from center)

IR Receiver Connection
1x 3.5mm jack plug (4 conductor plug), 1x RJ45 connector

Cable Length
1x 2m (IR-CV-4), 1x 1m (IR-CV-5) extendable up to max 100m

Dimensions
25 x 14 x 9mm

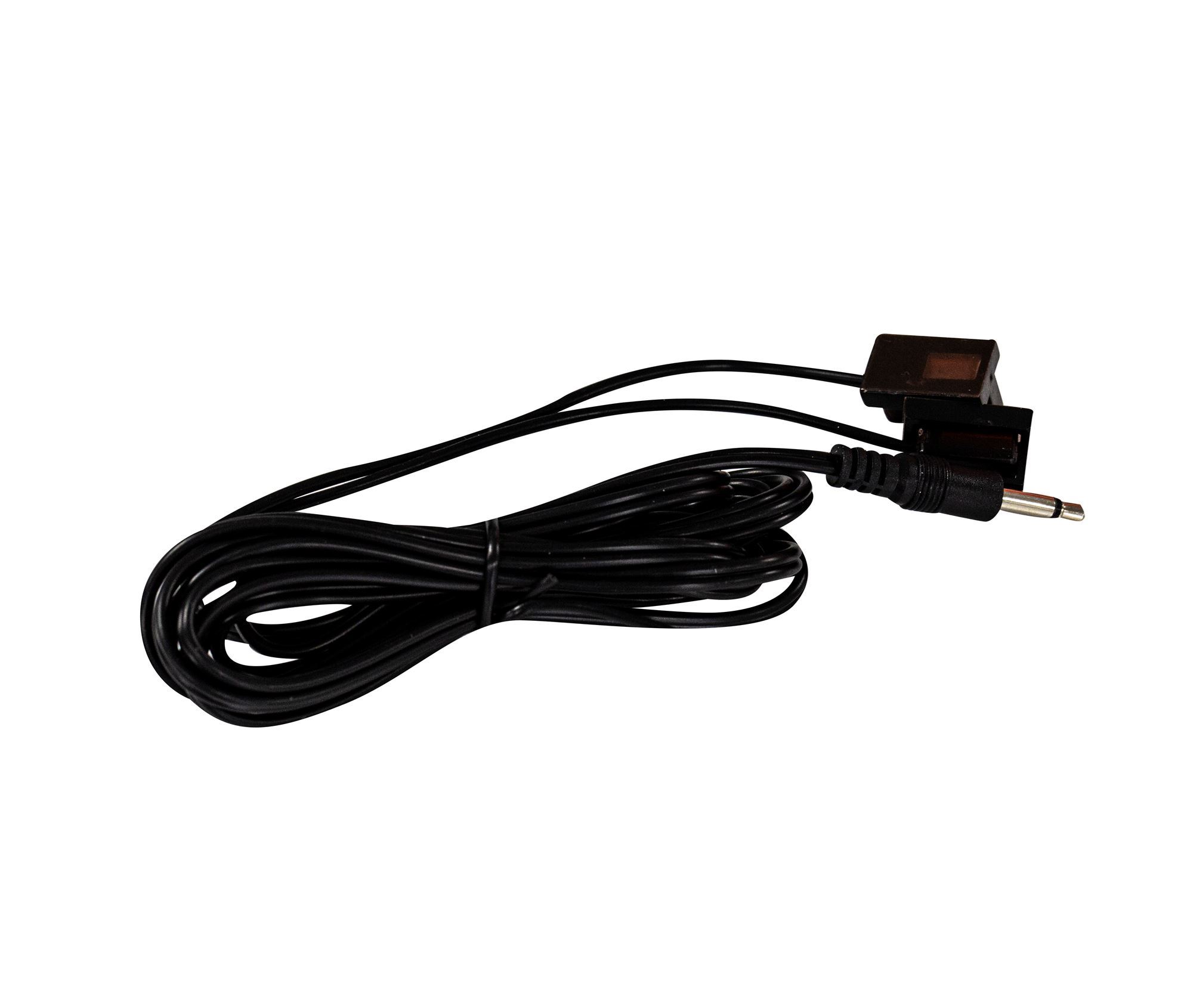

IR Emitter (IR-EM-3)

Connection
3.5m jack plug (mono)

IR LEDs
2x IR emitter LEDs

Cable Length
2m

Peak Forward Current
100mA

Forward Voltage Max
1.5V

Peak Wavelength
940nm

Dimensions
22 x 16 x 8mm

Power Adapter

Input
AC 100V ~ 240V

Output
DC 12V/250mA

DC Plug
5.5 x 2.1mm

IR Blaster

Connection
2.5mm jack plug (mono)

IR LEDs
1x IR blaster LED

Cable Length
2m

IR Transmitting Range
1m

IR Transmitting Angle
90° (+45°/-45° from center)
