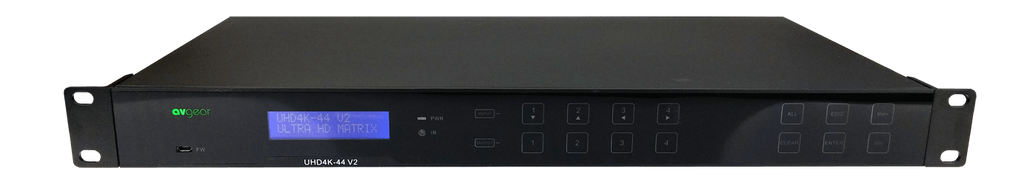

4K 4×4 HDMI Matrix Switcher with 4 HDMI inputs, 4 HDMI outputs,

The AVG-UHD4K-44 V2 is a professional 4K 4×4 HDMI Matrix Switcher with 4 HDMI inputs, 4 HDMI outputs, 4 SPDIF audio outputs and 4 analogue audio outputs. This unit is designed to switch HDMI 2.0 and HDCP 2.2 compliant signals. It also features a powerful EDID management to ensure reliable AV distribution and routing. Features 4Kx2K@60Hz 4:4:4 & 1080p 3D signals HDMI2.0 & HDCP2.2 compatible, also backwards compatible with earlier versions Transmits 4Kx2K@60Hz 4:4:4 signal up to 5m via HDMI ports SPDIF and RCA ports for de-embedded HDMI audio output Variable level control for Analogue audio outputs Controllable via front touch panel, IR, RS232, TCP/IP and web-based GUI LCD screen shows real-time I/O connection status Convenient firmware upgrades through Micro USB port Easy installation with rack mounting design Input Signal 4 HDMI Input Connector Female Type-A HDMI Output Signal 4 HDMI; 4 SPDIF audio Output Connector Female Type-A HDMI; COAX connector Control Signal 1 IR IN; 1 TCP/IP; 1 RS232 Control Connector 3.5mm mini jack; female RJ45; 3-pin phoenix plug Video Signal HDMI2.0 & HDCP2.2 Audio Signal Dolby Digital, DTS, DTS-HD General EDID Management In-built EDID data and manual EDID management Resolution Range 640×480@60Hz ~ 4Kx2K@60Hz 4:4:4, 1080P 3D HDMI Cable Length ≤5m Power Supply 24VDC, 1.25A Power Consumption 14W (Max) Dimension (W*H*D) 437.0mm × 44.0mm × 236.5mm Weight 1.75Kg Temperature -10℃ ~ 55℃ Reference Humidity 10% ~ 90%
