4K HDBaseT Home Distribution Matrix Kit

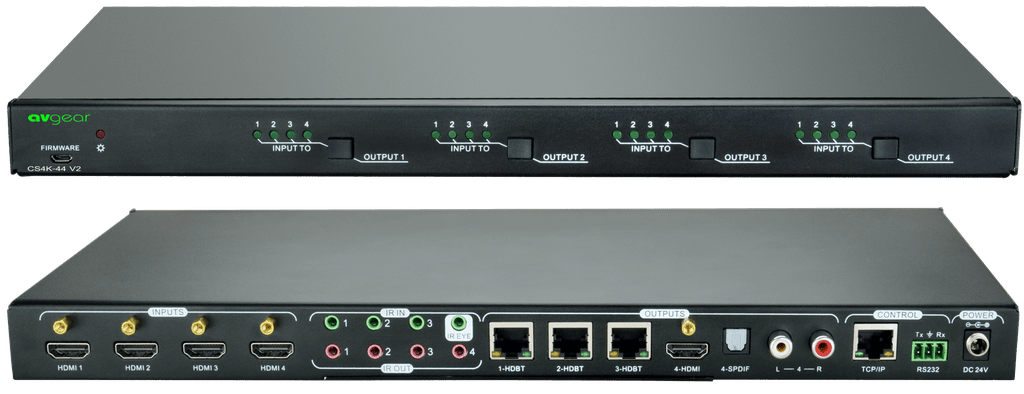

This product is a professional 4K HDBaseT Home Distribution Matrix Kit, which consists of a 4K HDBaseT Matrix Switcher, 3 HDBaseT Receivers and all accessories required for a standalone system. This system is also capable of being fully integrated into a whole home control system solution. Features Supports HDMI 1.4 & HDCP 2.2, is compliant with lower standards. Supports manual HDCP management and auto-detection Transmits 4Kx2K signal for 8m via HDMI port, 40m via HDBT ports 3 HDBaseT outputs, distances up to 70m at 1080p and 40m at 4Kx2K on a single CAT6 The HDBaseT Receivers are powered by the matrix switcher, 12VDC via PoC technology LED indicators show real-time switching status. Control via front panel, RS232, IR and TCP/IP Supports bi-directional IR & RS232 control Built-in GUI for TCP/IP control Powerful EDID management Video Input Input 4 HDMI Input Connector Female HDMI Input Level T.M.D.S. 2.9V~3.3V Input Impedance 100Ω (Differential) HDMI Standard Supports HDMI 1.4 & HDCP 2.2 and is backwards compatible with all previous standards. Video Output Output 1 HDMI – 3 HDbaseT Output Connector Female HDMI;  Female RJ45(with LED indicators) Output Level T.M.D.S. 2.9V~3.3V Output Impedance 100Ω (Differential) HDMI Standard Supports HDMI 1.4 & HDCP 1.4 and is backwards compatible with all previous standards. Video general Video Signal HDMI (or DVI-D) Transmission Distance 1080P@60Hz ≤70m; 4Kx2K@60Hz ≤40m Resolution Range Up to 4Kx2K@60Hz EDID Management In-built EDID data and manual EDID management Gain 0 dB Bandwidth 10.2Gbit/s Switching Speed 200ns (Max.) Audio general Output Signal Stereo audio;  Digital audio Analog Audio Output Supports PCM Digital Audio Output Supports PCM，Dolby，DTS，DTS-HD Frequency Response 20Hz~20KHz Output Connector 1 L&R(RCA);  1 SPDIF Control Control Ports 4 IR OUT; 3 IR IN ; 1 IR CONTROL; 1 TCP/IP (female RJ45); 1 RS232 (3-pin pluggable terminal block) Panel Control Front panel buttons RS232 Control 3-pin pluggable terminal block IR Extended IR receiver TCP/IP Control Web-based GUI General Power Supply Input: 100-240V~, 50/60Hz; Output: DC 24V 2.71A Power Consumption 35W (Max) Temperature 0~ +50℃ Relative Humidity 10% ~ 90% Dimension (W*H*D) 436.4mm x 44.0mm x 150.0 mm Net weight 910g
