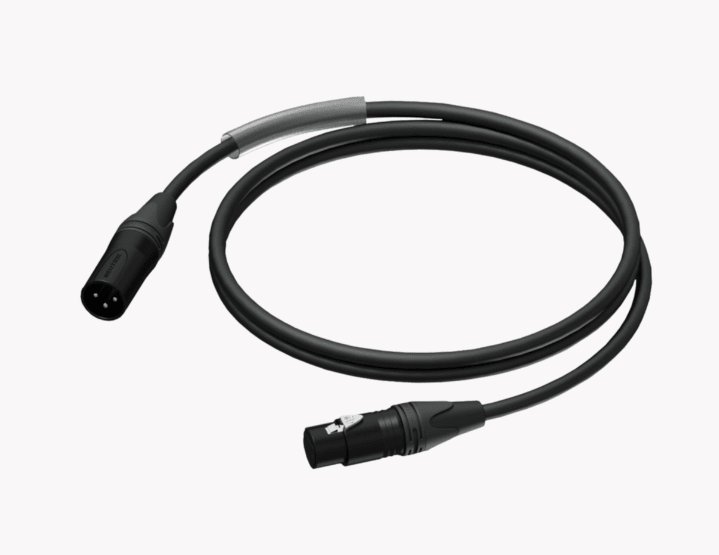

5m XLR male – XLR female – UltraFlex

5m Cable
Ultraflex™ Ultra flexible jacket
24 AWG thin and dense stranded conductors
6.5 mm (Ø) outer diameter
Oxygen free copper
60 mm transparent shrink sleeve
Silver contacts, black metal XLR housing

Description
The PRA901 is a high-quality microphone cable constructed using the ultra flexible PMC224 cable and fitted with Neutrik NC3MXX-BAG and NC3FXX-BAG (Silver contacts, black metal XLR housing) connectors. The 24 AWG (0.22 mm²) thin & dense stranded bare copper conductors are surrounded by a high coverage spiral shielding. In combination with the thick and soft PVC outer jacket, this provides a flexible but solid feel. The high-purity copper, high-coverage shielding and low capacitance guarantee an optimal signal transmission. The attached shrink sleeve allows custom labeling for easy identification. It comes in different lengths from 0.5 meters to 20 meters, providing solutions for all applications.

Physical characteristics

Inner conductor
Insulation
Material
FPE 1.4 mm (Ø)



Colours
Red / Blue


Shielding
Spiral
BC 80 x 0.10 mm (Ø) (OFC)

Outer jacket
Material
UltraFlex PVC 6.5 mm (Ø)


Colours
Black

Type of cable
24 AWG Microphone cable

Inner conductor
Material
BC 28 x 0.10 mm (Ø) (OFC)


Section
0.22 mm²

Filling
Cotton Yarn

Inner conductor
Number of conductors
2


Conductor twisting
Yes

Connection type
XLR- Male to XLR- Female

Mechanical characteristics

Temperature range
Fixed installation
– 40 °C till + 80 °C


Mobile installation
– 25 °C till + 70 °C

Bending radius
Fixed installation
4 x outer diameter


Mobile installation
6 x outer diameter

Electrical characteristics

Capacitance
Cond/Shield
81.5 pF / m @ 1 MHz


Cond/Cond
42 pF / m @ 1 MHz

Lead resistance
Shielding
13.4 Ω / 100 m

Characteristic impedance
95 Ω ± 3 Ω
