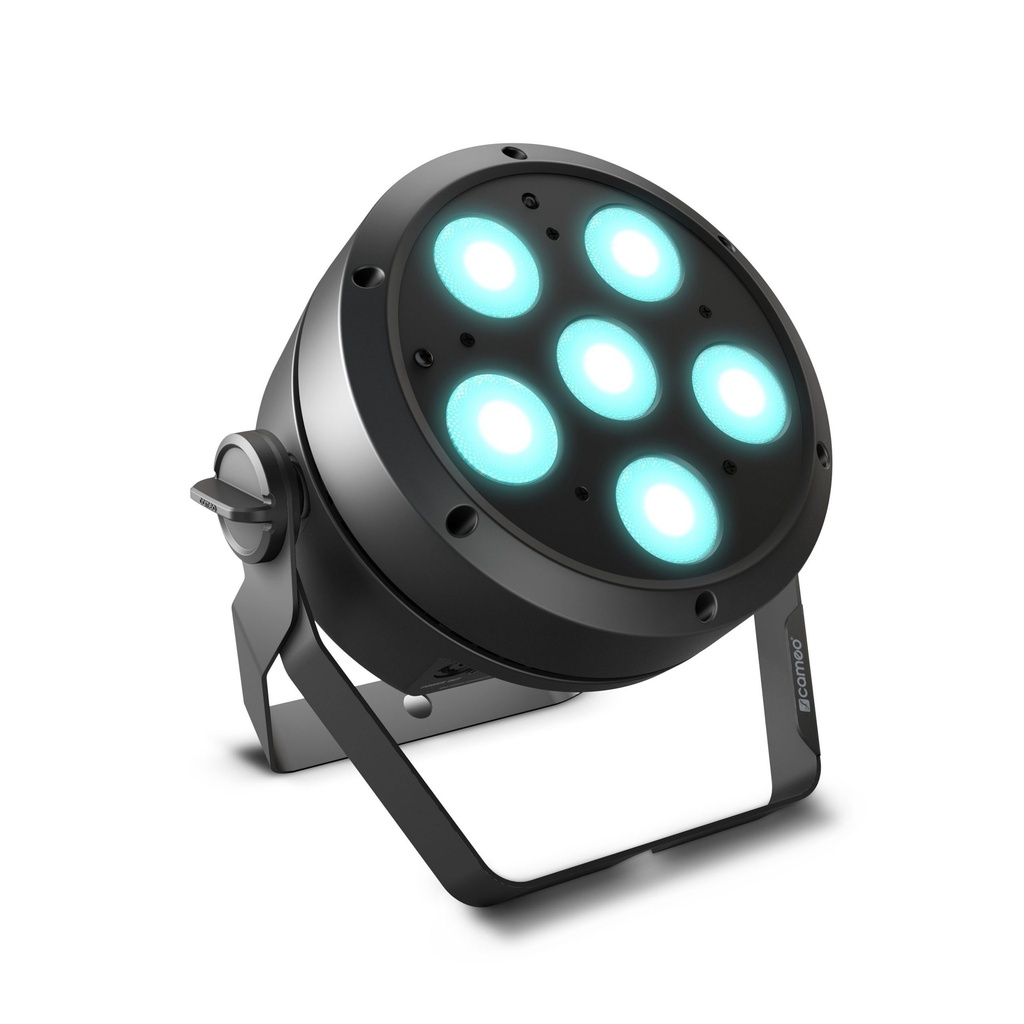

6 x 12 W RGBAW + UV PAR Spotlight

Powerful 6 x 12 W hex-colour LED PAR can with 1800 lm light output


Excellent RGBAW-UV colour mixing


High-quality, enlarged lenses for even light intensity and maximum output


DMX and power input and output for daisy-chaining several devices


Exclusive, patented EZchase® DMX delay feature for simple chase effects


PowerCON-compatible power connection


Configuration via four keys and OLED display


Built-in microphone for sound control


USB port for iDMX® stick for wireless DMX connection via W-DMX™


Flat, compact ABS housing with rubber feet


Twin mounting bracket included, tilt adjustment screw for uplighting


Description

The optimal solution for sophisticated, professional lighting effects and also ideal for smaller event locations. This FLAT PAR boasts cool, intelligent features usually only found on high-end, professional devices. Unparalleled in its class, it sports premium features such as an OLED display, patented EZchase® DMX delay and powerCON-compatible power connections. It even supports W-DMX™ via an optional iDMX® stick.
Broad and vibrant light shows can be created by daisy-chaining several devices. Your creative possibilities are limitless. The DMX signal and power input/output are looped through each unit. This allows you to fully exploit the unique potential of the patented EZchase® DMX delay feature and create thrilling light patterns and colour changes with minimal programming.
A powerful light output of 1800 lm delivered by 6 x 12 W hex colour LED PAR cans is ready and available for musicians, DJs and rental companies. The Cameo ROOT PAR 6 not only creates superb RGBAW-UV colour mixing, it also demonstrates incredible flexibility for producing various white tones. Colours and settings are easily adjustable without the remote controller via four buttons and the OLED display. Controlling the unit via DMX in master-slave or standalone mode is possible. A built-in microphone for sound synchronisation is available. An IR remote control is also optionally available as an accessory (product no. CLPFLAT1REMOTE).
The package includes a mounting bracket and a tilt screw for using the LED FLAT PAR as an uplight without a bracket. Designed with sturdy, flat, compact housing and featuring a powerCON- compatible power connection, this device is made for touring, and is incredibly reliable thanks to it’s fully passive convection cooling. Inserting an iDMX® stick into the USB port upgrades the LED spot to support wireless DMX connection via W-DMX™.
This expands its range of application like house parties and birthday celebrations, mood and ambience lighting, and portable dance floor setups. This compact LED FLAT PAR allows you to express your passion for using light and colours for creating incredible, fascinating moments.


Product type
LED PAR Lighting

Colour spectrum
RGBWA + UV

Number of LEDs
6

LED type
12 W

LED PWM Frequency
650 Hz, 1530 Hz, 2150 Hz, 4000 Hz

Dispersion
36 °

DMX input
3-pole male

DMX output
3-pole female

DMX Functions
colour macro , Dimmer , Dimmer Fine , DMX Delay , RGBWA + UV , sound sensitivity , Speed Selection , strobe

Control
DMX512 , IR Remote Control

Standalone modes
Auto programs , Colour presets , Loop , sound programs , Static , User Colours

Controls
Down , Enter , Mode , Up

Indicators
OLED Display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
58 W

Power connector
Blue Power Twist , White Power Twist

Housing material
ABS plastic

Cabinet colour
Black

Cooling
Convection

Illuminance
10700 lx @ 1 m

Luminous flux
1800 lm

Fuse
F3AL / 250 V

Operating Temperature
0 – 40 °C

Width
195 mm

Height
133 mm

Length
195 mm

Weight
1,2 kg

Accessories (included)
Mounting bracket , Power cord
