SUPERCAT 7
Performance Grade Shielded Cable
The SoundTools SuperCAT 7 is a performance grade cable with all-weather durability and flexibility. SuperCAT 7 cable is designed to handle the high-speed data requirements of modern digital consoles or can be used to send analog XLR audio, COM, AES3 or DMX using SoundTools products.
-Meets CAT7 cable standards
-6.5mm diameter is easy to coil and lays flat
-Rugged polyurethane (PUR) jacket for maximum protection and flexibility
-Shielded (S/FTP) cable rated for CAT7 applications
-Optimized for data and analog audio over XLR applications
-Usable temperatures ranging from -20/+60℃ -4/+140℉
Function
Certified for use with the SoundTools RATCAT family including CAT Tails, CAT Box and CAT Rack in addition to standard CAT7 applications.
Capable of carrying 48-volt phantom power, COM, AES3 or DMX.
6.5mm diameter is easy to coil and lays flat
Shielded (S/FTP) cable rated for CAT7 applications
DURABLE
Durable and abrasion-resistant thanks to a robust polyurethane halogen-free jacket, and capable of handling extreme temperatures ranging from -20/+60℃ -4/+140℉. SuperCAT 7 is ready for the toughest indoor or outdoor environments.
FAST
SuperCAT 7 meets CAT7 cable standards for high bandwidth data needs. 26/7 AWG four foil-shielded and precisely-twisted pairs with stranded wire for enhanced shielding and crosstalk rejection. SuperCAT 7 is rated for bandwidth speeds of up to 10Gbp/s @ 600MHz.
PERFORMANCE GRADE
SuperCAT 7 cable is designed to handle the high-speed data requirements of modern digital consoles or can be used to send analong XLR audio, COM, AES3 or DMX using SoundTools products.
DIMENSIONS
- *varies by length*
SYSTEM REQUIREMENTS
- no special requirements
TECHNICAL SPECIFICATIONS
- CAT7
- AWG26/7
- S/FTP
- Halogen free polyurethane jacketed
- 100Ω Impedance
- Delay skew: 10 ns @ 100 MHz/100 m
- Bandwidth: up to 10Gbp/s @ 600MHz
- Cable Specifications PDF
PACKAGE CONTENTS

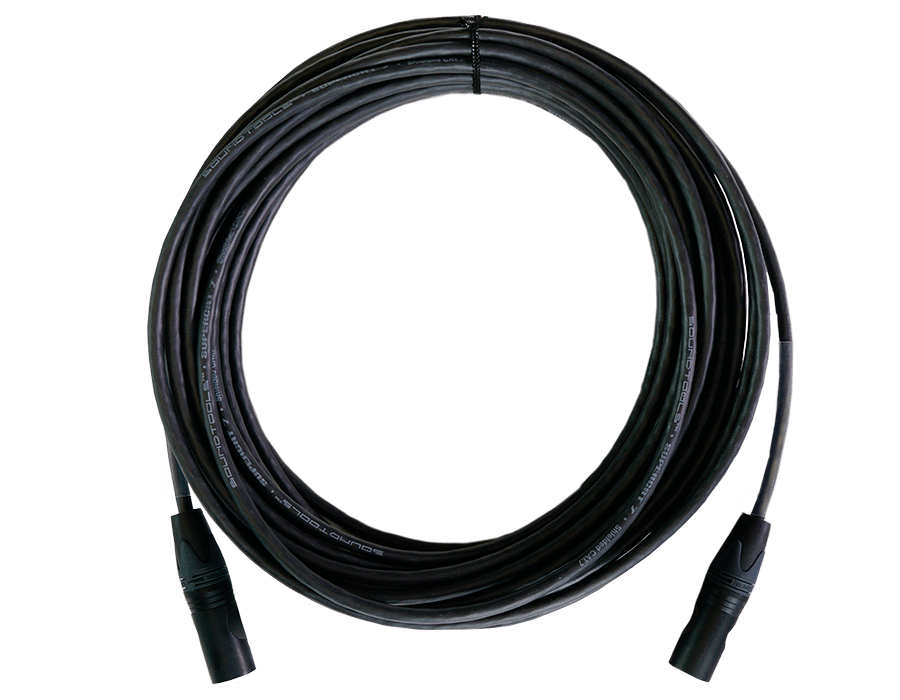

- CAT7 cable terminated with genuine Neutrik etherCON connectors
WARRANTY INFORMATION
- Lifetime Happy Human Warranty
PART NUMBER
- varies by length
