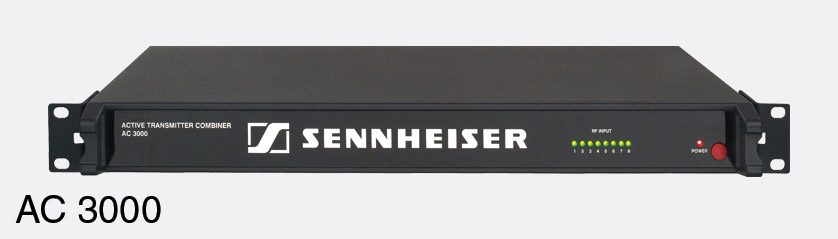

AC 3200-II

Overview

The AC 3200-II is an active 8-channel transmitter combiner for bundling the antenna signals in large wireless monitoring systems. Designed for the 2000 Series rack-mount monitor transmitters, it is ideal for large productions where reliable transmission and long reach are key. The AC 3200-II allows up to eight signals to be transmitted from a single antenna. In multi-channel systems it is an indispensable tool for efficiently reducing intermodulation between transmission channels. Linear power amplifiers handle up to 100 mW per channel without loss, and LEDs for each channel provide the user with a reliable system overview.


Features

The AC 3200-II combines up to 8 signals and transmits them via a single antenna
The AC 3200-II combines signals of up to 8 x 100 mW without loss
Significant suppression of intermodulation products between the connected transmitters


What’s in the box?

1 AC 3200-II active transmitter combiner
1 NT12-125D power supply unit
3 mains cables (EU/UK/US)
4 self-adhesive device feet
1 instruction manual

Technical Data

Impedance

50 ohms

Dimensions

436 x 215 x 44 mm

Weight

approx. 4 kg

Attenuation

0 dB (+/- 1dB)

Power consumption

max. 90 W

Operating temperature

-10 °C to +45 °C

RF frequency range

500 – 870 MHz

Power supply

12 V DC

Antenna connector

BNC

Current consumption

max. 7.5 A
