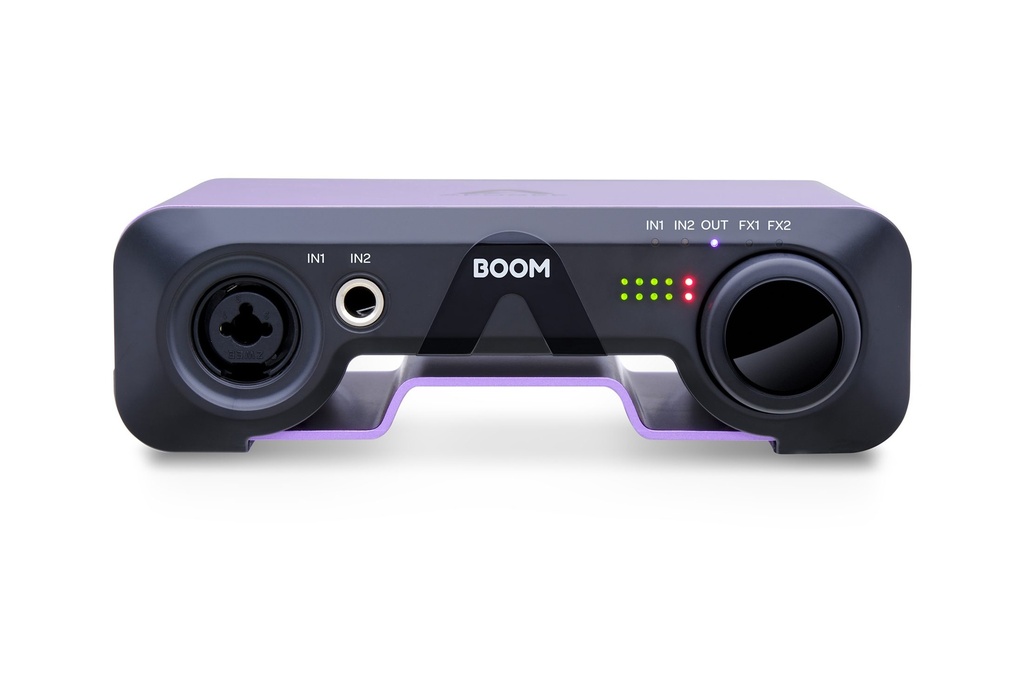

Apogee Electronics BOOM 2×2 Desktop USB Type-C Audio Interface with Built-In Hardware DSP FX

START SOUNDING PRO

Whether you’re a musician, podcaster, or live streamer, Apogee BOOM will inspire you to take your projects to the next level. Perfect for beginners and pros, BOOM features legendary Apogee sound quality and onboard DSP for tone-shaping your recordings, all at the most affordable price ever for an Apogee 2×2 USB-C audio interface.

DIAL IN RICH ANALOG TONE

Onboard DSP FX with ECS Channel Strip

Sculpt your voice, vocals and instruments while you record with Symphony ECS Channel Strip, tuned by legendary mixer Bob Clearmountain. Add the warmth and grit of analog gear with 3-band EQ, compression, and Drive.

RISE ABOVE THE NOISE

Powerful mic preamp and pristine conversion

No other product in its category outperforms BOOM when it comes to sound quality. BOOM’s preamp can power the most demanding mics like the Shure SM7B with up to 62dB of clean, noiseless gain. Capture that signal with Apogee’s legendary analog to digital conversion for pristine, professional recordings that will make your tracks stand out.

HIGHLIGHTS

Best-in-class Apogee conversion and mic preamp technology
Up to 24 bit / 192kHz recording
2×2 USB-C audio interface
1x ¼” Instrument input
1x Combi mic/line/instrument input
2x ¼” Balanced outputs
1/4” Headphone output
Low profile design with aluminum body
Bus powered
On-board hardware DSP for low-latency recording with Apogee FX
Symphony ECS Channel Strip – Hardware DSP FX (Native plugin sold separately)
macOS, Windows 10 compatible

IN THE BOX

BOOM
USB Type C / Type A cable

COMPATIBILITY

macOS: 10.15 and later
iOS / iPad OS: 15 and later*
PC: Windows 10 Anniversary update or later

*All iPads with an USB-C port are compatible with BOOM.Devices with a Lightning port require the camera connection kit and a powered USB-A hub.

SPECIAL OFFERS*

Ableton Live Lite free
Apogee Soft Limit plugin free
Receive an Apogee web store coupon for 50% off any Apogee plugin or plugin bundle
Exclusive 60 day plugin trial from Neural DSP

*All offers require registration of new BOOM on Apogee website

SPECIFICATIONS

MIC PRE

EIN: 123dB (a-weighted) @ 62dB, 150 Ohm input
Max Input Level: +18dBu
Input Impedance: 2.4KOhm

HI-Z

Max input level: 14dBu
Input Impedance: 3.2kOhm (Pad on), 1MOhm (Pad off)

A/D CONVERSION

Max input level +4dBu: +18dBu
Max input level (-10dBV ref): +6dBV
Input impedance: 6.4KOhm
Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
Rel. THD + N: -101dB
Dyn. Range: 122dB (A-weighted)

D/A CONVERSION

Max output level (+4dBu ref): +15dBu
Line output impedance: 100 Ohm
Freq resp 20Hz -20 Khz: > +/- 0.05dB
Rel. THD+N : -107dB
Dyn Range: 114dB (A-weighted)

HEADPHONE OUT

Max output level headphones: 15dBu / 240mW@ 32 ohms
Headphone output impedance 0.5 Ohm
Freq resp 20Hz -20 Khz: > +/- 0.05dB
Rel. THD+N : -107dB
Dyn Range: 114dB (A-weighted)

PRODUCT SIZE

Weight: 2lbs. / 0.95 kg
Dimensions: 8.85” x 7” x 3.54” / 22.5cm x 18cm x 9cm
