ARC Audio Breakout

Description

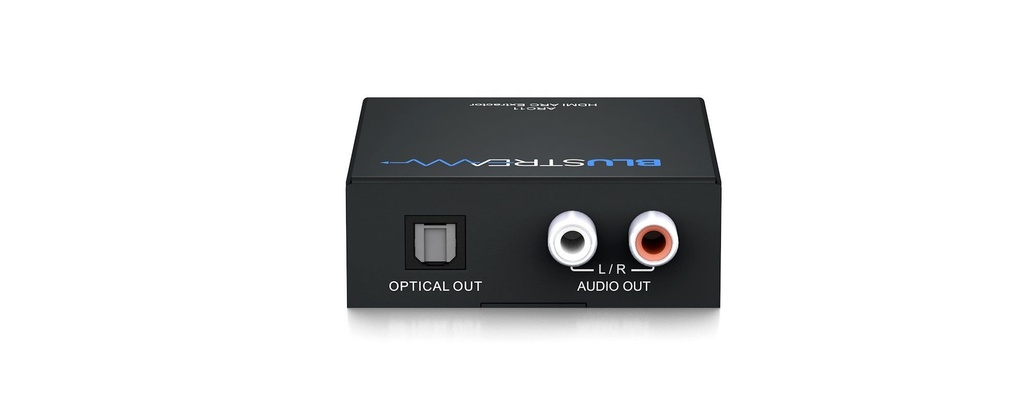

Our ARC11 has been designed to extract audio from the HDMI ARC (Audio Return Channel) of a display.

Featuring both an analogue audio, and optical audio output, it can extract the embedded ARC audio information for use within a multi room audio distribution system.

Box Contents

1 x ARC11
1 x 5V/1A DC USB Power Supply
1 x Mounting Kit
1 x Quick Reference Guide

Downloads

Key Features

• Extracts audio from the Audio Return Channel of a HDMI signal

• Features analogue audio breakout of 2ch PCM audio signals, where source audio is 2ch PCM

• Supports up to 192kHz sample rates at 24bit depth

• Features optical audio breakout of multi-channel and 2ch audio formats

• Supports the following embedded audio formats: Dolby Digital 5.1, Dolby Digital 2.0, DTS-ES 6.1, DTS 5.1, DTS 2.0, PCM 2.0

Specifications

• Audio Input Connectors: 1 x HDMI Type A, 19-pin, female

• Audio Output Connectors: 2 x RCA analogue left/right, 1 x Toslink optical output

• Dimensions (W x H x D): 70mm x 25mm x 73mm

• Shipping Weight: 0.4kg

• Operating Temperature: 32°F to 104°F (-5°C to +55°C)

• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• Power Supply: 5V/1A DC USB
