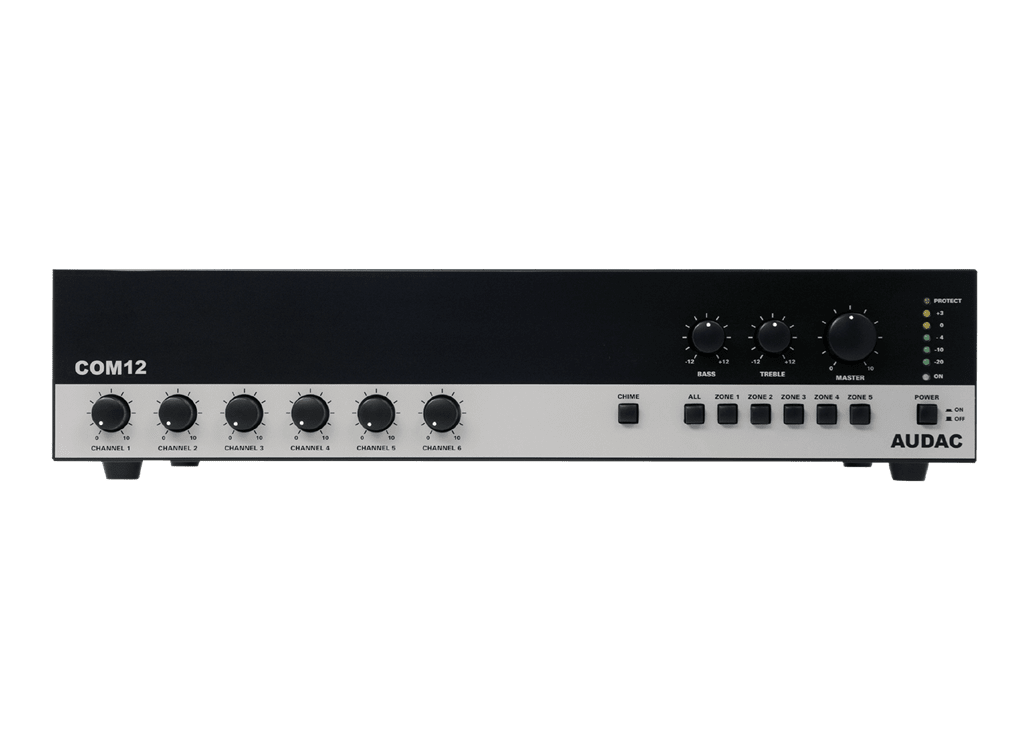

Audac 100v Line Amp 120 watts

The COM series public address mixing amplifiers are providing an ideal solution for small to medium size commercial sound systems. Different configurations in terms of output power and connectivity provide an enormous flexibility for numerous applications. The COM12 is capable of delivering an output power of 120 Watt to 100 Volt constant voltage systems or 4 Ohm low impedance loads. Six input channels with individual level control allow connectivity and mixing to a wide variation of music sources. Four balanced microphone inputs (XLR) containing phantom power (15 V) and two priority allow connection for almost any (dynamic or condenser) microphone. Two inputs selectable between stereo balanced line (RCA) and microphone (6.3 mm Jack) allow connection for any source such as CD-player, music computer or portable device, or enable to expand the total microphone count to 6. The remote microphone and tele-paging inputs allow expansion of the system with a paging station (with chime tones) or couple the system with your business telecom system (or any other priority line source). Using the priority mute contact, coupling and muting can be done through an external fire alarm system. The output level can be adjusted using a master volume control accompanied with 2-band tone regulation. The level is indicated with a 5-segment VU-bar while output selection is made possible using an integrated 5-zone speaker switcher. Both table-top installation or 19” (2HE) equipment rack mounting is made possible using the included adapters.

SYSTEM SPECIFICATIONS

RMS Power
120 W

Signal / Noise
> 90 dB

THD+N (@ 1 kHz)
< 0.5%

Crosstalk (@ 1 kHz)
> 70 dB

Technology
Class A/B

Common mode rejection ratio
70 dB

Protection
DC Short circuit


Over heating


Over load


Signal limiting

Cooling
Convection cooled

Operating temperature
0° ~ 40° @ 95% Humidity

Frequency
Response (± 3 dB)
20 Hz – 20 kHz

Power
Supply
Transformer


Source
230 ~ 240 V AC / 50 ~ 60 Hz

Inputs
Other
Remote mic (Priority mic + chime)



Tele-paging (Priority line)



Priority mute contact

Outputs
Connector
2-pin Euro Terminal Block (Pitch – 5.08 mm)



10-pin Euro Terminal Block (Pitch – 5.08 mm)


Voltage / Impedance
100 V / 4 Ω

Inputs
Balanced Microphone 1 – 4
Type
4 x Balanced Mic./Line (-6 dB / -50 dB)



Connector
2 x XLR/Jack Combo & 2 x XLR



Other
4 x 15 V DC Phantom & 2 x Priority


Balanced Microphone 5
Type
1 x Balanced Mic./Line (-6 dB / -50 dB)



Connector
6.3 mm Jack


Unbalanced Stereo
Type
1 x Stereo Unbalanced Line (+14 dB / -30 dB)



Connector
RCA

PRODUCT FEATURES

Dimensions
420 x 88 x 320 mm (W x H x D)

Weight
9.700 kg

Mounting
19” / 2 HE or tabletop

Construction
Steel

Colours
Black

Accessories
Included
19” Rackmount adapter
