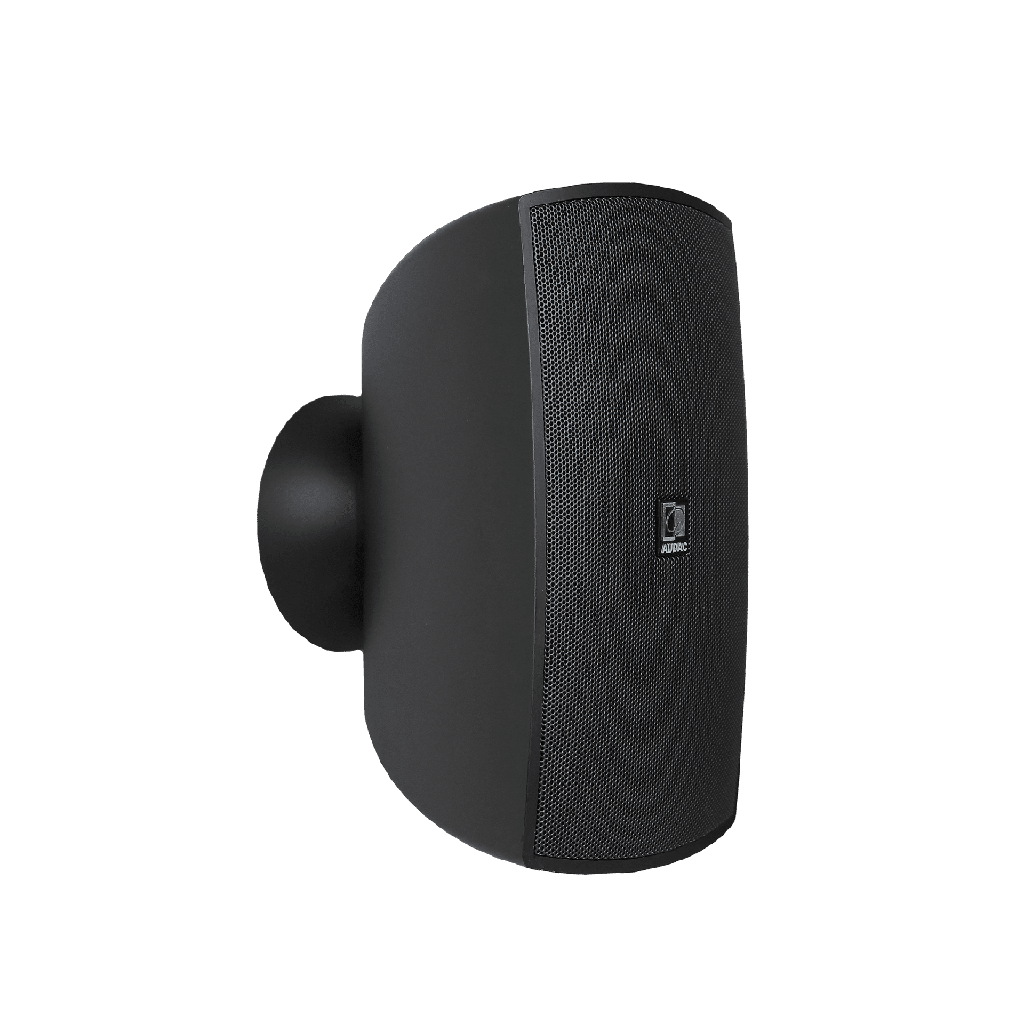

Audac ATEO4 Compact Wall Speaker (Black, 8 ohm) Single

Single Speaker
Vertical and horizontal mounting (rotatable logo)
1″ Dome tweeter
4″ Low frequency loudspeaker
100V and low impedance connection possibility
Stunning designed and elegant looking ABS enclosure
Patented CleverMount™ mounting system
Ultra-flat frequency response
Multi-tapping 70V / 100V line transformer

The ATEO is a series of extraordinary loudspeakers especially designed for fixed install indoor applications, ranging from modern residential applications to the most demanding designer applications in environments such as retail stores, pubs, restaurants or even clubs.
The ATEO4 is the 4” version with a 1” dome tweeter and a 4” Mid /Low-frequency driver, ensuring a true to- nature, high-fidelity reproduction of music and speech. It features a stunningly designed and elegant looking ABS housing which is fitted with high-quality components. What makes this loudspeaker range so exceptional is the specially designed mounting bracket using the Clevermount™ technology, making the loudspeakers cabinet flow together with the mounting bracket providing great ease for installing the loudspeaker in one good-looking entity. The ATEO4MK2 is an improved version of its predecessor where we have been able to improve the sound quality by implementing a new crossover. With its balanced 1” dome tweeter and 4” mid/low-frequency driver the ATEO4MK2 ensures an ultra-flat frequency response and forms the ideal solution for fixed install indoor applications.
The mounting and connection of the loudspeaker simply happens by attaching the included metal wall-plate to the desired location. When mounted, the wires must be connected to the desired terminal of the custom connection block. The desired power tap for 70V/100 Volt or 8 Ohm can be selected by picking the right terminal. After this is done, only five seconds of work is left for clipping the loudspeaker onto the wall-plate, tightening the safety screw and you’re ready to rock! This way, it’s really child’s play to install a large number of loudspeakers in no-time.
Even if you’re working all alone while people are watching your fingers or when installing the speakers up high when you’re standing on a ladder. All ATEO series speakers are available in black (/B) or white (/W).

CLOSE





CLEVERMOUNT™ TECHNOLOGY
Free inclinable in every direction
Thanks to the Clevermount™ innovation, the loudspeaker can be placed in any horizontal or vertical direction with a simple Allen key twist. This makes the loudspeaker stepless inclinable in every direction.
LEARN MORE ABOUT CLEVERMOUNT™

ADD AN EXTRA 30° ANGLE
Ceiling mount possibilities
The optional WMA incline bracket adds an extra 30° angle to the already existing incline angle of ATEO speakers. This opens the possibility the place the speaker horizontally or vertically in an angle up to 60° and ensure perfect sound experience.
DISCOVER WMA SERIES BRACKETS

ACCESSIBLE FROM EVERY ANGLE
Adaptive wall mounting
The connection of the loudspeaker simply happens by attaching the included wall plate to your desired location and wiring the cables to this wall plate. The Clevermount™ innovation ensures installer to have both hands free to slide the loudspeaker cabinet into the bracket.
LEARN MORE ABOUT CLEVERMOUNT™

Technical specifications

Available models

ATEO4MK2/B
 Black version – 8Ω and 100V

ATEO4MK2/W
 White version – 8Ω and 100V

ATEO4D/B
 Black version – 16Ω

ATEO4D/W
 White version – 16Ω

System specifications

Speaker type
Full range

Peak power handling
140 W

Program power handling
70 W

RMS/AES power handling
35 W

Impedance
8 Ω (ATEO4)


16 Ω (ATEO4D)

Incline angle
Left
30°


Right
30°


Bottom
30°


Top
5°

Sensitivity (1W/1m)
86 dB

Sound Pressure (Max. W/1m)
@ 8 Ω
101 dB


@ 100 V
100 dB

Frequency
Response (± 3 dB)
100 Hz – 20 kHz


Range (-10 dB)
65 Hz – 20 kHz

Dispersion
Horizontal
130°


Vertical
130°

Connectors
6-pin Custom Terminal Block

Drivers
1” Dome tweeter


4” MF / LF Woofer

Line Transformer Tappings
1
208 Ω – 100 V / Not used – 70 V / 24 W


2
417 Ω – 100 V / 24 W – 70 V / 12 W


3
833 Ω – 100 V / 12 W – 70 V / 6 W


4
1667 Ω – 100 V / 6 W – 70 V / 3 W

Product Features

Dimensions
136 x 244 x 153 mm (W x H x D)

Weight
2.050 kg

Operating temperature
-20 °C ~ 60 °C

Mounting
Clevermount™

Accessories
Included
Allen-key wrench

Construction
ABS

Front finish
Steel grill

Colours
Black (RAL9005) (ATEO4/B, ATEO4D/B)

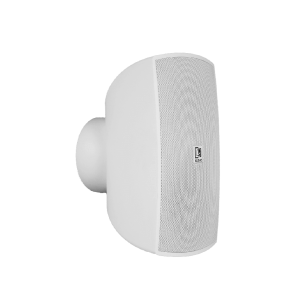

White (RAL9003) (ATEO4/W, ATEO4D/W)

Recommended applications


Bars & Restaurants


Corporate


Education


Hotels


Retail


Residential


Clubs
