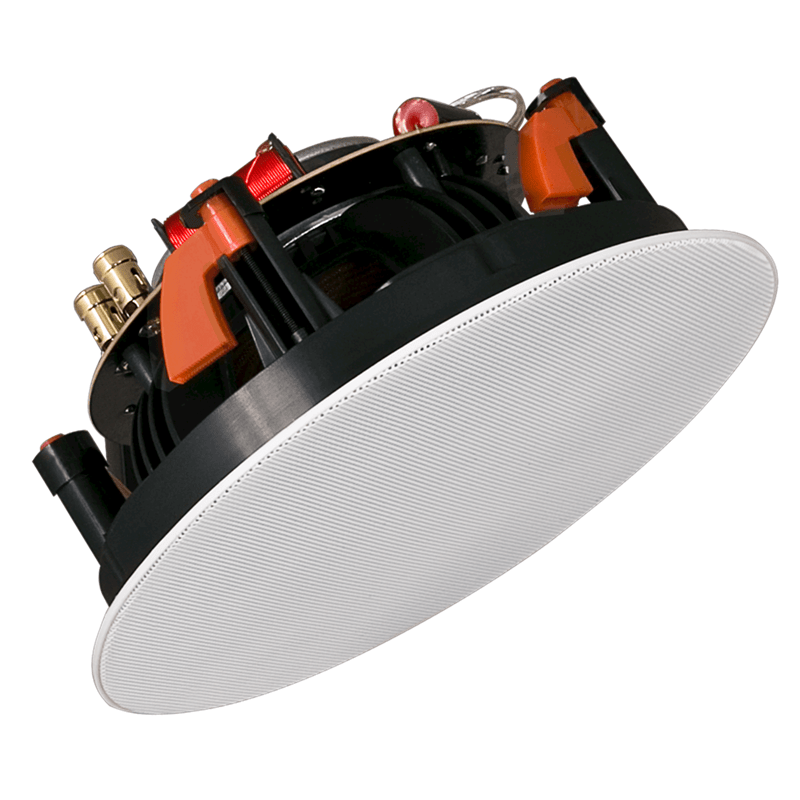

Audac CELO6 High-End 2-Way 6″ Ceiling Speaker

Description

The Audac CELO6 High-End 2-Way 6″ Ceiling Speaker is part of AUDAC‘s high-end, slim ceiling speaker series, comprising different models which can guarantee an optimal experience for every situation and application. The CELO6 is the medium 6” model of this series. Due to its slim grill design with a very thin border of only 1 mm and a limited grill depth which extrudes from the ceiling surface by only 3.2 mm, these speakers will become nearly invisible when mounted. To make them blend in even more, the grill can be painted in the same color as the surrounding surface or an optional black grill (GLC06/B) will provide seamless integration in dark environments.
This elegant and unobtrusive grill is held in place by means of powerful neodymium magnets, making assembly and disassembly very simple, but still reliable enough for keeping the grill in place during the complete lifetime of the loudspeaker. When the grill is removed, it’s clear for anyone to see that the CELO speakers are made by using only the highest quality materials, guaranteeing an unsurpassed sound experience.

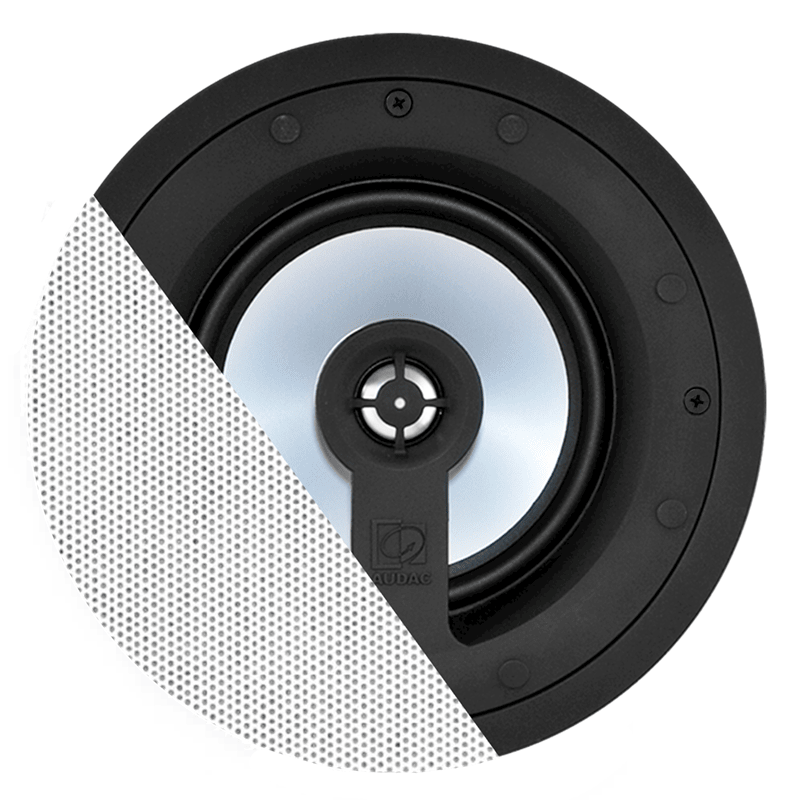

One 1” aluminum cone tweeter is held in place by an acoustically optimized arm in front of a 6” aluminum cone woofer. Together with the crossover network which is made of high-quality components, this results in true to nature sound reproduction for a warm and detailed sound with an RMS power of 60 Watt.

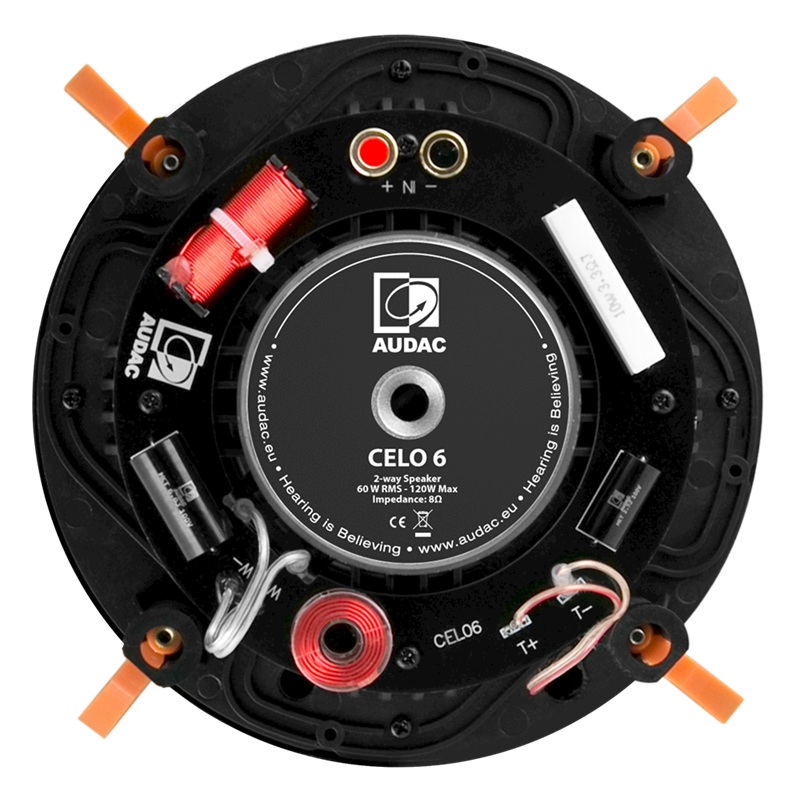

To guarantee a lifetime stability, secure mounting and easy installation, the loudspeaker connection is made using Gold plated spring clamp connectors. The mounting of the loudspeaker into the ceiling should be done by a quick-fixing mechanism which can be tightened by four screws and the front grill is held into place by neodymium magnets.

Specifications

SYSTEM SPECIFICATIONS


Speaker type
2-way coaxial

Max. Power
120 W

RMS Power
60 W

Impedance
8 Ω

Sensitivity
(1W/1m) 88 dB

Sound Pressure (Max. W/1m)
106 dB

Connectors
Gold-Con™ spring clamps

Frequency Response (± 3 dB)
55 Hz – 20 kHz

Range (-10 dB) 44 Hz – 20 kHz


Crossover
Type Passive built-in

Frequency 3 kHz


Dispersion
Conical 140°

Drivers
HF 1” Aluminium membrane

LF 6” Aluminium membrane


PRODUCT FEATURES


Dimensions
230 x 103 mm (Ø x D)

Weight
1.650 kg

Construction
ABS

Front finish
Thin edged white grill (RAL9003)

Cut-out measurement
205 mm (Ø)

Built-in depth
100 mm

Mounting & handling
4 Screw quick-fixing mechanism

Operating temperature
-20 °C ~ 60 °C

Colours
Black frame & white grill

Accessories Included
Cut-out template
