The Iso Balancer DI converts Unbalanced Audio signals to Balanced, Low Impedance signals suitable for use with professional equipment and long cable runs.
Transformer Ground isolation provides low-noise operation suitable for any application, preventing ground loops and other extraneous noise.

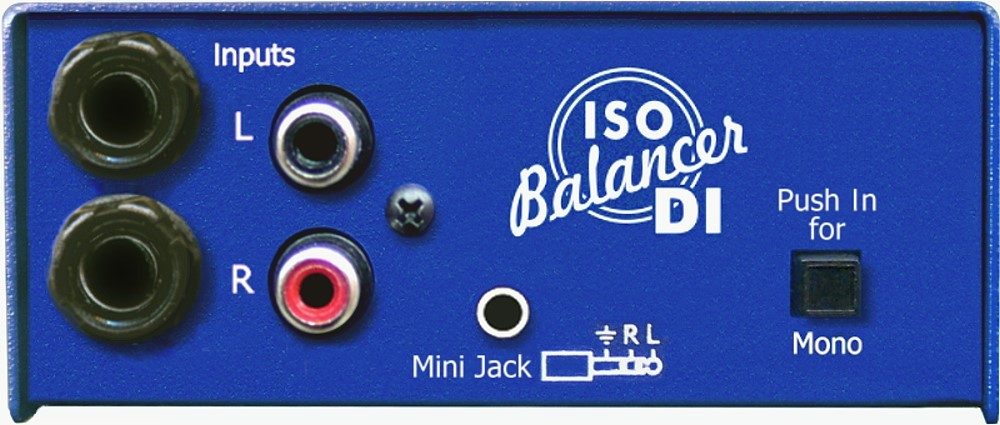

The Iso Balancer DI features industry standard 6.5mm Jack, RCA and 3.5mm Jack inputs to cover all plug types, and transformer balanced Left and Right XLR outputs.
As an added feature, for those applications including Corporate AV and Computer interfacing the Iso Balancer DI also features a Mono’ing switch allowing Stereo signals to be easily mono’d.
The heavy duty all-steel chassis is finished in attractive matt textured blue powdercoat, with hardwearing epoxy screen printing and a large slip resistant rubber pad underneath.
The Iso Balancer DI is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Available in Dual Channel format only
| Precision engineered Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.Click on image at Right to see larger version |
 |
Input Impedance 10K Ohms Unbalanced
Output Impedance 10K Ohms Balanced
Input Level (max) +12dB
Frequency Response 20Hz – 20 KHz ± 0.5dB
Distortion 0.05% Maximum THD, 0dB 1KHz
Insertion Loss 0.75dB @ 1 KHz (600 Ohm load)
Insertion Loss – Mono Switch in –4dB
Input Connectors Stereo RCA connectors, plus
6.5mm Mono Jacks (Left & Right) Sleeve – Ground, Tip + signal3.5mm Stereo Jack wired Tip – Left, Ring – Right, Sleeve – Ground / Earth
Output Connectors 3 pin Amphenol male XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 – Cold.
Construction All-steel blue polyurethane coated chassis, fibreglass PCB
Input and Output grounds have both resistive and capacitive coupling for RFI suppression.
