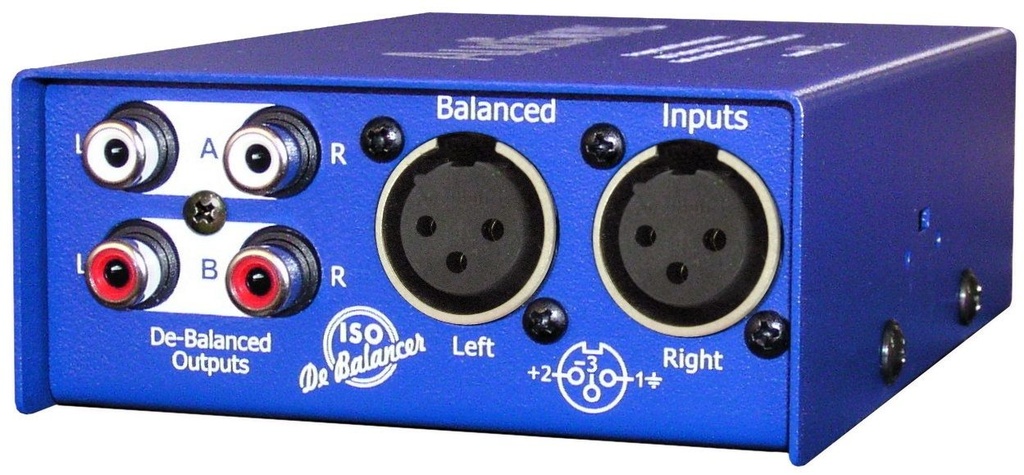

Audibox ISO De-Balancer
A Unique de-balancing box, the De-Balancer will convert stereo Balanced Low Impedance signals to Unbalanced Low Impedance signals, to allow leads to run balanced from A to B and then be de-balanced for connecting to a high impedance/unbalanced input at the other end
This enables you to keep a balanced line all the way up to the input of an unbalanced unit, reducing hum, noise and interference pickup along the way. Transformer Ground isolation provides low-noise operation suitable for any application
The heavy duty all-steel chassis is finished in attractive matt textured powdercoat, with hardwearing epoxy screen printing and slip resistant rubber pads. The De-Balancer is a totally passive device with no power requirements, making it a truly universal problem solver.
Security features include Kensington®-type computer lock slot and optional bracket kit for under-table mounting.
Available in Dual Channel format only
| Precision engineered Most of the Audibox range share a common footprint and manufacturing platform. Offset lid screws enable close side-by-side mounting of multiple units.Click on image at Right to see larger version |
 |
Input Impedance 10K Ohms Balanced
Output Impedance 10K Ohms Unbalanced
Input Level (max) +12dB
Frequency Response 20Hz – 20 KHz ± 0.5dB
THD at Max Output 0.2% 30 Hz – 20KHz
Insertion Loss 0.75dB @ 1 KHz (600 Ohm source)
Input Connector
3 pin female XLR, wired Pin 1 Ground, Pin 2 + Hot, Pin 3 – Cold. Chassis Ground connected to XLR Pin 1
Output Connectors Dual stereo RCA connectors
Construction
All-steel powdercoated chassis, fibreglass PCB, ultra low noise audio transformer
