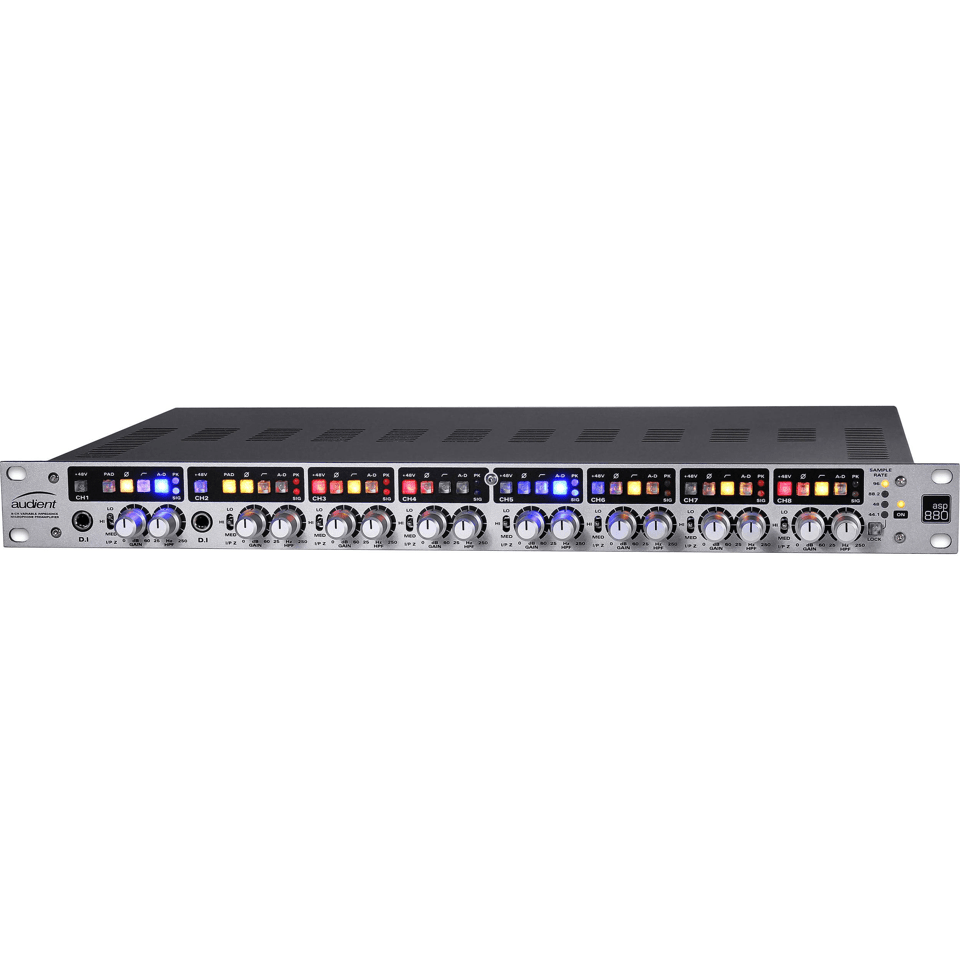

Audient ASP880 – 8 Channel Microphone Preamplifier and ADC

Description

Intended for professional recording studios, the Audient ASP880 offers eight Class-A microphone preamplifiers from the company’s consoles designed by David Dearden via XLR/TRS combo connectors as well as Burr Brown analogue to digital conversion in an all-metal 1RU 19″ rackmountable enclosure. It also features a pair of front panel Class-A JFET 1/4″ DI instrument inputs for recording guitars, keyboards, drum machines, and more.
Each channel features a selectable +48V phantom power button, a selectable pad, a selectable polarity reverse switch, a variable high-pass filter, and a switch for inserting a signal processor between the preamplifier and A/D convertor. A front-panel button allows you to select and lock the sample rate of the convertor at 44.1, 48, 88.2, or 96 kHz. Digital outputs are provided by rear-panel ADAT, AES, and SPDIF connections. A word-clock input is also included.
Key Features
Mic PresUses renowned Class-A console mic-pre design that was optimised over the course of 18 years by David Dearden
A/D ConvertorUses high-grade Burr Brown conversion
Plug and PlayOffers eight channels of mic-pre and line inputs as well as two discrete JFET DI inputs
Analogue InsertAllows you to insert signal processors between the preamplifier and the A/D convertor
HPFAllows you to selectively attenuate unwanted low frequencies
Variable ImpedanceAllows you to match the preamplifier to ribbon microphones
ConstructionFeatures all-metal construction and hand-milled aluminium knobs

Specifications

Connections
2x front panel 1/4″ (6.3 mm) DI inputs8x back-panel XLR/TRS combo inputs1x D-Sub connector for line outputs 1-8 (send)1x D-sub connector for ADC inputs 1-8 (return)2x ADAT Out (1-8)1x word clock1x AES/SPDIF

Input

Mic Gain Range
Mic: -10 to +60 dB (-10 dB Pad)Line: -16 to +44 dB (-10 dB Pad)DI: -10 to +60 dB (-10 dB pad)

Phantom Power
48 V +/-4 V at 10 mA/Channel

EIN
80 dB at 100 to 10 kHz

Maximum Level
Mic: +22 dBu (+32 dBu with Pad)D.I.: +16 dBu (typical), +22 dBu

Input Impedance
Mic LO: 220 ohms BalancedMic MOED: 12 kOhms BalancedMic HI: 28 kOhms balanced Line (All Z): >6 kOhms balancedD.I.: 1 MOhm unbalanced

Frequency Response
Mic: +/-0. 5 dB from 10 Hz to 100 kHzD.I.: +/-0.5 dB from 10 Hz to 50 kHz

Crosstalk
< -85 dBu at 1,000 and 10,000 Hz

THD+N
Mic: 0.003% (-90.5 dBu)DI: 90 dBD.I.: 89 dB

HPF
Sweepable from 25 to 250 Hz, 2nd Order (12 dB/Octave)

XLR / Phone Jack
Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

Phono (1/4")
TIP (Hot), RING (Cold) & SLEEVE (Shield)

Output

Maximum Output Level
+27.5 dBu

Output Impedance
10 kOhms balanced

Frequency Response
+/-0.5 dB at 10 Hz to Fs/2

Crosstalk
<-80 dBu at 1 and 10 kHz

THD + N
-1 dBFS (1kHz): <0.002% (-94 dB)-6 dBFS (1 kHz): <0.002% (-94 dB)

Dynamic Range
113 dB unweighted115 dB A-weighted

LED
PEAK LED LINEUP: +16 dBu (-2 dBFS)SIGNAL LED LINEUP: Variable Brightness from -30 dBu to -10 dBu (-28 dBFS)

Digital Audio I/O

Sample Rate
ADAT 8x CHANNELS SMUX: 44.1 to 96 kHzAES | S/PDIF 8 Channels: 44.1 to 96 kHz

Clock
Internal or External

Wordclock Input
75 ohm BNCOptional 75 ohm termination

Power Supply
Gloval low noise internal SMPS, fanless

Line Voltage
90 to 264 V (a.c)

Rails
+/-18 VDC, +48 VDC & +5 VDC

Fuse
T1A (1 ampere time delay)

Power Consumption
Maximum 40 W

Dimensions
482 x 44.4 x 321 mm

Weight
4.0 kg
