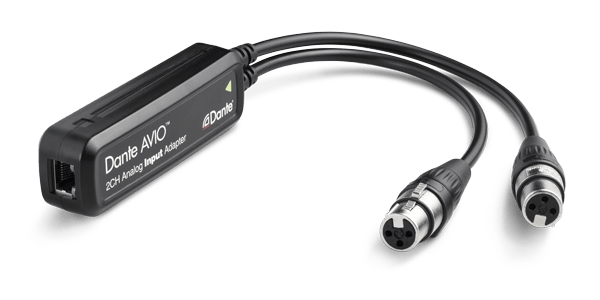

Audinate Dante AVIO 2-Channel Analog Input Adapter for Dante Audio Network

The Audinate Dante AVIO 2-Channel Analogue Input Adapter allows you to use the analogue gear you already own with your Dante audio network. It provides audio engineers with a cost-effective solution for adapting analogue mixers, DI boxes, keyboard instruments, or analogue compressors and equalisers, delivering the interoperability, performance, and scalability of Dante network connectivity.

Compact and built for the road, the AVIO is automatically discovered by the network and is ready to use when connected. It features two balanced line-level inputs equipped with XLR connectors and delivers high-quality audio at up to 24-bit/96 kHz with configurable gain and attenuation, low total harmonic distortion, and a 20 Hz to 20 kHz frequency response.

The AVIO supports Dante audio over IP and AES67 RTP transport formats, and is compatible with Dante Domain Manager (DDM).

Key Features:
Cost-effective solution for adapting analogue gear to your Dante network
Plug-and-play operation
Balanced, line-level dual-channel analogue input adapter
Compact and built for the road with sonically welded polycarbonate enclosure
Sample rates up to 96 kHz
Wide dynamic range
High signal-to-noise ratio
Low total harmonic distortion
Configurable gain and attenuation
Dante Audio over IP and AES67 RTP transport formats
Power over Ethernet (PoE) support
Compatible with Dante Domain Manager (DDM)
Applications
Connect analogue mixers and consoles to a Dante network
Patch DSPs, analogue compressors and equalisers into a Dante system using a combination of Dante AVIO Input and Output adapters
Connect stage DI boxes and keyboard instruments directly to a Dante network
Connect wireless mic receiver to a Dante network
Specifications
Maximum Signal Level +24 dBu, +4 dBu, 0 dBu (balanced)
0 dBV, -10 dBV (balanced)
Frequency Response 20 Hz to 20 kHz (±0.5 dB)
Impedance 20 kOhms (balanced)
10 kOhms (unbalanced)
Dynamic Range >100 dB
Signal-to-Noise Ratio >100 dB
Total Harmonic Distortion
Connectors RJ45
2 x XLR-F
Power Class 1 802.3af PoE
Sample Rates 44.1, 48, 96 kHz
Bit Depth 24-bit
Network Transport Protocol Dante Audio over IP
AES67 RTP
