Product Features
- Pre-Mounted and Ready to Play
- AT-VM95E Dual Moving Magnet Cartridge
- Low Distortion & High Channel Separation
- Elliptical Stylus
- Low-Resonance Housing
Description

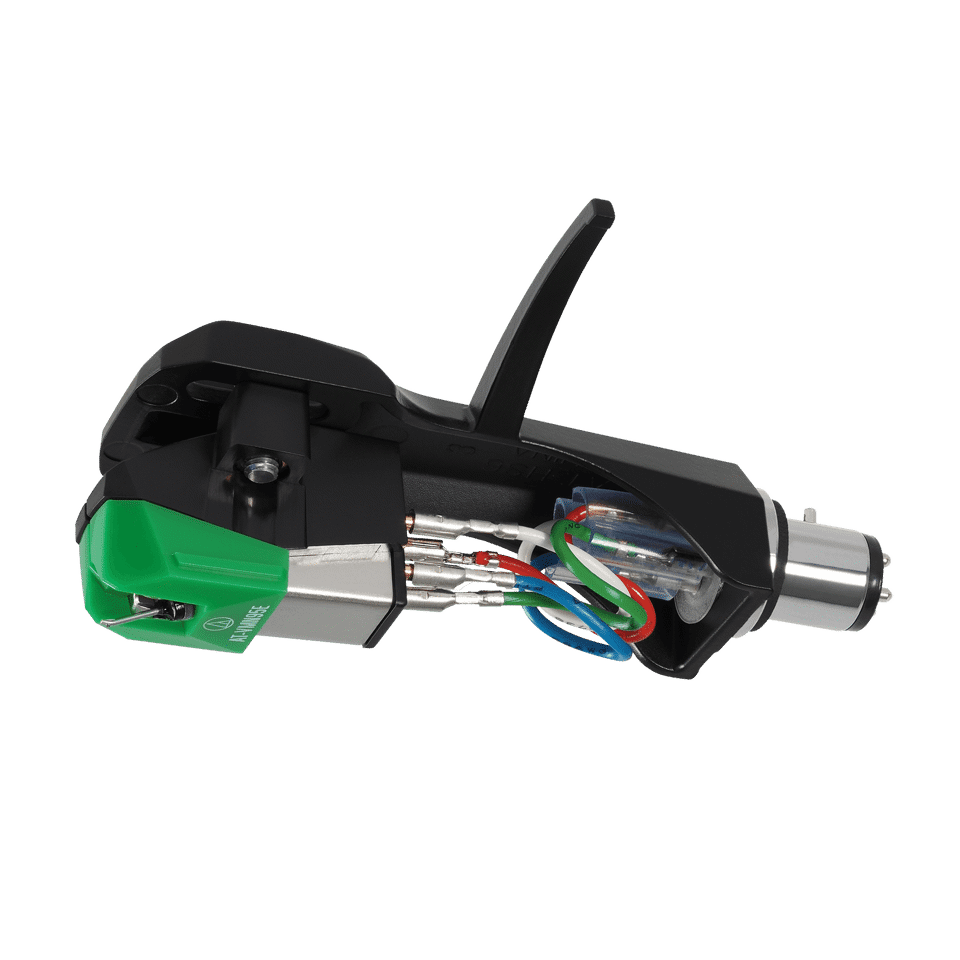

The Audio-Technica Consumer AT-VM95E Dual Moving Magnet Cartridge features a special coil design, which delivers a powerful output level (4.0 mV) with high channel separation and low distortion for remarkable tonal quality. The cartridge can be mounted to a standard 1/2″ mount and features integrated threaded inserts, allowing it to be mounted with just two screws (no nuts required). All VM95 Series share the same body, allowing the stylus to be replaced with any of the six interchangeable AT-VMN95 replacement styli.
Key Features:
- VM95 Series dual magnet cartridge with 0.3 x 0.7 mil elliptical stylus.
- Aluminium cantilever.
- Specially wound coils increase the output voltage.
- Durable low-resonance polymer housing.
- Threaded inserts in cartridge body enable the cartridge to be mounted to headshell with just two screws – no nuts required.
- Compatible with any AT-VMN95 replacement stylus.
Specifications
| Frequency Response | 20 Hz to 22 kHz |
| Channel Separation | 20 (dB at 1 kHz) |
| Tracking Force | 1.8 to 2.2 g (2.0 g Standard) |
| Recommended Load Impedance | 47 kOhms |
| Output | 4.0 mV (1 kHz, 5 cm/sec.) |
| Channel Balance | 2.0 dB (1 kHz) |
| Stylus Type | Bonded Round Shank |
| Stylus Cantilever | Aluminium Pipe |
| Mount | 0.5″ / 1.27 cm |
| Replacement Stylus | AT-VMN95C |
| Impedance | Coil Impedance: 3.3 kOhms (1 kHz) |
| DC Resistance | 485 Ohms |
| Load Capacitance | 100 to 200 pF |
| Coil Inductance (Le) | 550 mH (1 kHz) |
| Vertical Tracking Angle | 23° |
| Dimensions | 0.7 x 0.7 x 1.1″ / 17.2 x 18.9 x 28.3 mm |
| Weight | 0.2 oz / 6.1 g |
| Material of Construction | Headshell and Connector: Aluminium |
| Dimensions (HxWxD) | Not Specified by Manufacturer |
| Weight | 0.3 oz / 9.0 g |
