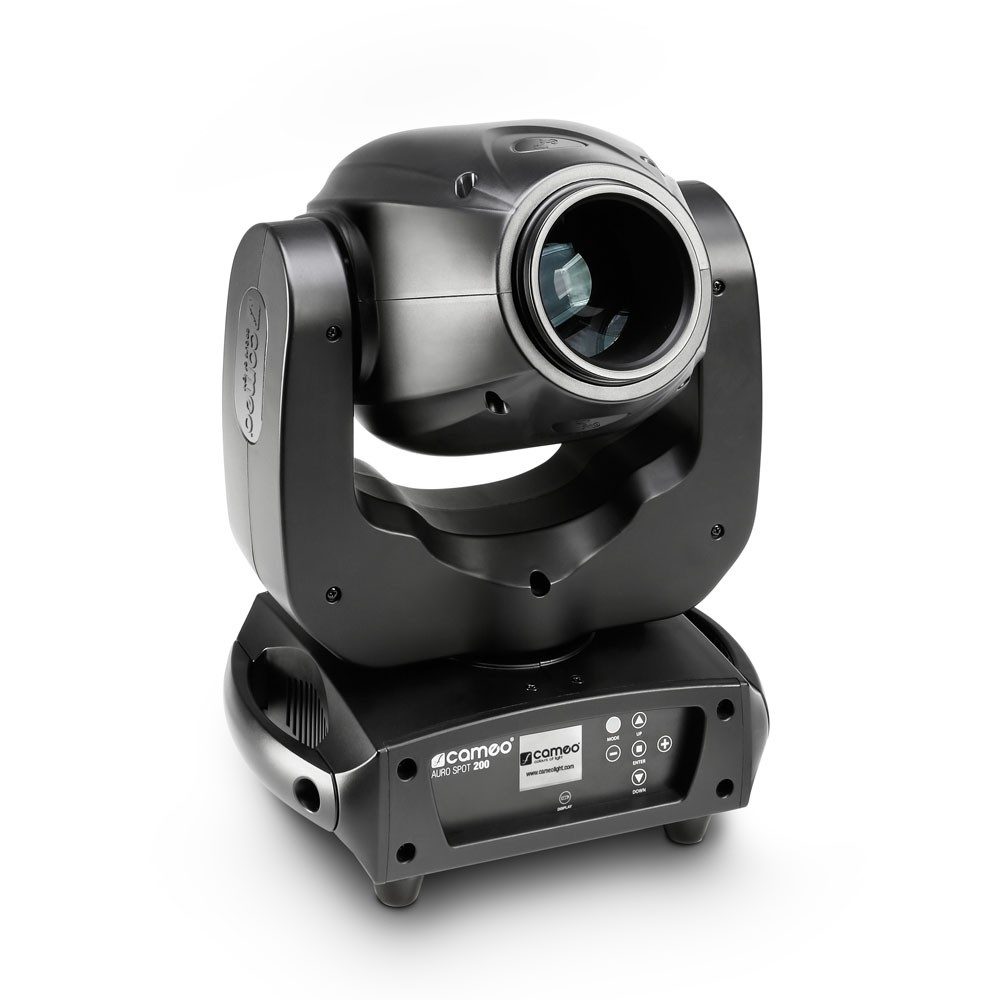

AURO SPOT 200 LED Moving Head

Description

The Cameo AURO SPOT 200 is an RDM enabled ultra bright moving head with 16-bit resolution, 630° pan and 235° tilt movement and high speed 3-phase motors. It is powered by a single 100 watt LED and sports 8 intense colours plus white and split colours, 6 replaceable gobos and a rotating 3-facet prism for awesome effects.

The AURO SPOT 200 features 5-channel, 13-channel, 22-channel DMX control modes, auto run programs and sound activation as well as master, slave and standalone capabilities. Functions include a choice of 4 smooth dimming curves, shake effects and a 0 – 20 Hz cycle strobe.

The heavy-duty housing integrates a temperature controlled low noise fan, 3-pin and 5-pin DMX inputs and outputs, Neutrik powerCON mains connectors and a 4-button LCD control display. The multi-voltage AURO SPOT 200 operates on 100 – 240 V AC.

Next

Specifications

Product type
LED Moving Lights

Type
LED Moving Heads

Colour spectrum
8-channel multi colour , Split colours , white

Number of LEDs
1

Colour temperature
10000 K

LED type
100 W

Dispersion
(manually adjustable) 12° – 16 °

Number of gobos
6 + open

Gobo Size
Outer diameter 22.90 mm, Image diameter: 19.50 mm mm

DMX input
XLR 3-pin male , XLR 5-pin male

DMX output
XLR 3-pin female , XLR 5-pin female

DMX mode
13-channel , 22-channel , 5-channel

DMX Functions
Auto programs , Dimmer , Dimmer Curve , Gobo Shake , Gobo wheel , PAN , TILT

PAN movement
630°

TILT movement
235°

High Speed Strobe
1 – 20 Hz

Standalone modes
Auto run , Show , sound control

Controls
– , + , Enter , Mode , Value Down , Value Up

Indicators
colour LC display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
220 W

Power connector
Neutrik powerCON IN / OUT

Housing material
ABS plastic , metal

Cabinet colour
Black

Cooling
Silent, temperature controlled fan

Illuminance
130000lx @ 1m

Luminous flux
3250 lm

Width
285 mm

Height
480 mm

Depth
180 mm

Weight
8,8 kg

Downloads & links

Cameo Catalogue
Catalog / 18 MB

Fixture Library grandMA2
Data Sheet / 10 KB

DMX Control Table
Data Sheet / 57 KB

Eco label
Data Sheet / 921 KB

Photometric measurements
Data Sheet / 323 KB

Technical Drawing
Data Sheet / 111 KB

Technical drawing
Data Sheet / 616 KB

Compatbility Chart
Data Sheet / 54 KB

RDM enabled moving head

130,000 lx @ 1 m

High speed 3-phase motors

16-bit resolution

Motor Focus

Automated positioning correction

Battery powered display for offline operation

8 intense colours, white and split colours

6 rotating and interchangeable gobos + open

All gobos replaceable with metal or glass gobos

Rotating 3-facet prism

Smooth dimming from 100 – 0% with 4 selectable curves

0 – 20 Hz strobe

Temperature controlled low noise fan

Professional connectivity with 3 and 5-pin DMX and Neutrik powerCON I/O
