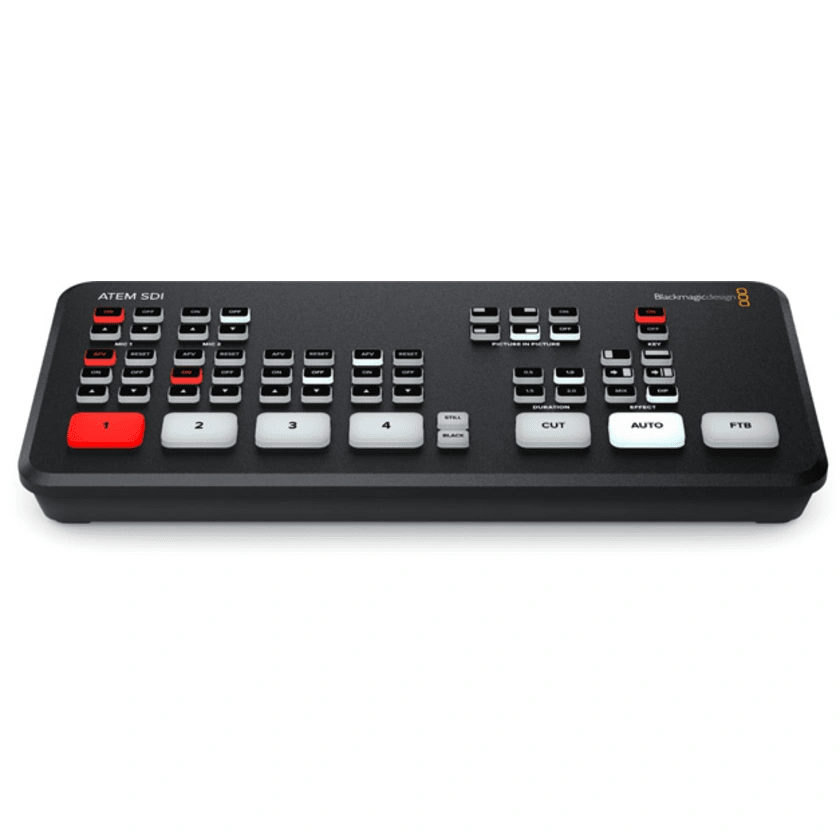

Blackmagic Design ATEM SDI Live Production Switcher

Description
The Blackmagic Design ATEM SDI Live Production Switcher is fast to set up and easy to use. It includes 4 standards converted SDI inputs, USB webcam, 2 SDI outputs, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control.
ATEM SDI is a family of live production switchers designed for broadcasters who need extreme portability! ATEM SDI switchers are very similar to ATEM Mini, however the video connections are 3G-SDI and each model has double the number of video outputs! You get 4 SDI inputs on the ATEM SDI and ATEM SDI Pro ISO models and 8 SDI inputs on the ATEM SDI Extreme ISO model. Plus all SDI inputs feature standards converters and re-sync! You even get DVEs for picture in picture effects! The USB works as a webcam for connecting video to computers, while the Pro and Extreme models feature built in streaming. For audio the Fairlight mixer includes a compressor, limiter and 6 band parametric EQ on each input!
Key Features:

4-Channel Live Stream 3G-SDI Switcher
Input/Output up to 1080p60 10-Bit 4:2:2
2-Channel Digital Audio Mixer
2 x 3G-SDI Output, Ethernet ATEM Control
Media Player, Computer Input Support
Upstream and Downstream Keyers
DVE Transition, Chroma/Luma Keyers
Colour and Pattern Generators
USB Type-C Streaming/Webcam Output

Specifications

Connections


Total Video Inputs
4

Total Outputs
3

Total Aux Outputs
2

Total Audio Inputs
2 x 3.5mm stereo mini jack.

Total Audio Outputs
None, embedded audio only.

Timecode Connection
None

SDI Video Inputs
4 x 3G-SDI, 10-bit HD switchable.2 channel embedded audio.

Video Input Re-Sync
On all 4 SDI inputs.

Frame Rate and Format Converters
On all 4 SDI inputs.

SDI Program Outputs
2

Ethernet
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

Standards


HD Video Input Standards
720p50, 720p59.94, 720p601080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p601080i50, 1080i59.94, 1080i60

HD Video Output Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards
None

Video Sampling
4:2:2 YUV

Colour Precision
10-bit

Colour Space
Rec 709

Colourspace Conversion
Hardware based real time.

Product Specifics


Upstream Keyers
1

Downstream Keyers
1

Advanced Chroma Keyers
1

Linear/Luma Keyers
2

Transition Keyer
DVE only.

Total Number of Layers
5

Pattern Generators
1

Colour Generators
2

DVE With Borders and Drop Shadow
1

Interface
Minimum monitor resolution of 1366 x 768.

Audio


Audio Mixer
6 input x 2 channel mixer.Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input
Unbalanced stereo

Analog Input Delay
Up to 8 frames

Input Impedance
1.8k

Max Input Level
+6dBV

Mic Plug In Power
Available on both 3.5mm mini jack connections.

Media Player


Media Players
1

Channels
Fill and key for each Media Player.

Media Pool Still Image Capacity
20 with fill and key.

Media Pool Still Image Format
PNG, TGA, BMP, GIF, JPEG and TIFF.

Control


Control Panel
Built in control panel. Software control panel included. Supports optional hardware panel.

Control Panel Connection
Ethernet supports 10/100 BaseT. Allows direct connection between panel and chassis, or via network. Also used for updating the software. ATEM SDI supports direct USB-C connection.

Control Panel Compatibility
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.

Control Panel Included
ATEM Software Control Panel included free for Mac 11.0 Big Sur, Mac 12.0 Monterey or later and Windows 10 or 11.

Software


Software Updates
Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems
Mac 11.0 Big Sur; Mac 12.0 Monterey or later.Windows 10, 64-bit; Windows 11.

Power Requirements


Power Supply
1 x External 12V power supply.

Power Usage
18W

Environmental Specifications


Operating Temperature
5° C to 40° C

Storage Temperature
-10° to 60° C

Relative Humidity
0% to 90% non-condensing
