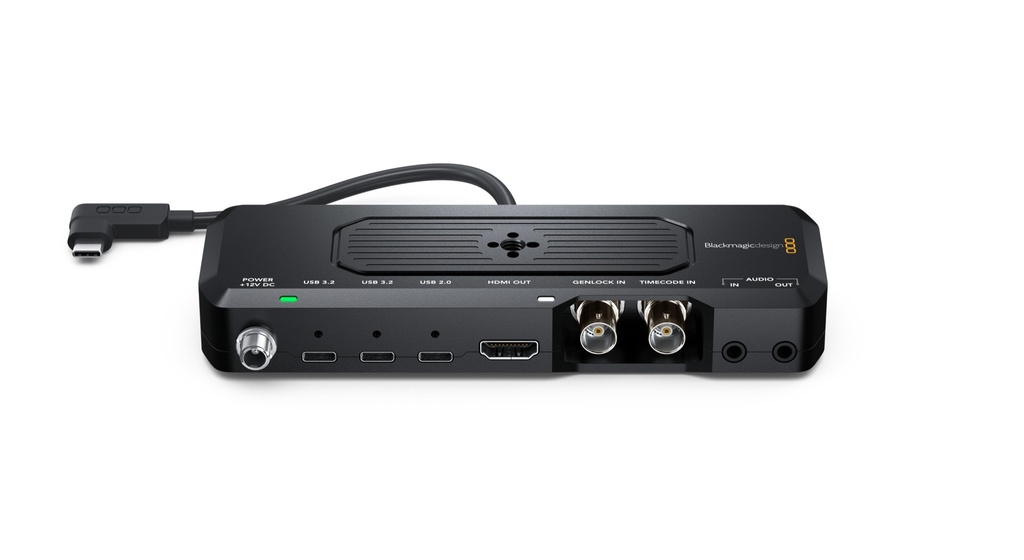

Blackmagic Design CINTDOCKPRO – Blackmagic Camera Pro Dock

The Blackmagic Camera ProDock transforms your iPhone into a professional production camera with all the connections you need to build a custom rig, and it supports the Blackmagic Camera app for iPhone. You get connections for HDMI monitoring, mics, headphones, genlock, USB for external disks, and power.
External genlock for multicamera production
With professional BNC connections, Blackmagic Camera ProDock supports external genlock and timecode to keep all your cameras in perfect sync. It also lets you shoot LED walls with no distracting flickering or tearing, which is important for virtual production.
Add accessories and external disks
With three USB-C ports, you can connect and control accessories and external SSDs for recording, and the power management will ensure that everything can run at the same time. Includes 3.5 mm connections for microphones and headphone monitoring and a full-size HDMI output for on-set monitoring.

Specifications

Compatibility
iPhone 17 ProiPhone 17 Pro MaxiPhone 16 ProiPhone 16 Pro MaxiPhone 15 ProiPhone 15 Pro Max

Connections


HDMI Video Outputs
1 x HDMI 2.1 (Type A)Outputs resolution and frame rateset in Blackmagic Camera for iOS

Audio Inputs
1 x 3.5mm stereo mini-jack

Audio Outputs
1 x 3.5mm stereo mini-jack

Timecode Input
1 x BNC,1 x 3.5mm audio input supports timecode in

Genlock Input
1 x BNC,Tri-Sync or Black Burst

USB-C Ports
2 x USB 3.2 high speed ports for recording to external media1 x USB 2.0 port for accessories

Power
+12V to +15V DC input with locking 5.5mm barrel connector

iPhone Connection
1 x USB-C cable and plug

Audio


Microphone
Connect external microphones via the 3.5mm stereo mini-jack, or USB‑C ports

Monitor
Connect headphones via the 3.5mm stereo mini-jack audio output

Display


Status Indicator
1 x power LED indicator1 x front tally LED indicator1 x genlock LED indicator

Power


Power Supply
1 x External 12V DC 60W power supply

Power Inputs
+12V to +15V DC input with locking 5.5mm barrel connector

Power Outputs
5V 𝌂 1.5A 7.5W max output each USB‑C port

Environmental Specifications


Operating Temperature
0°to 40°C (32° to 104°F)

Storage Temperature
-20°to 45°C (-4° to 113°F)

Relative Humidity
0% to 90% non-condensing

General


Cable Length
11.81 in. / 30 cm

Height
1 in. / 2.54 cm

Width
6.42 in. / 16.3 cm

Depth
2.60 in. / 6.6 cm

Weight
9.52 oz. / 270 g
