Features
- Fits Two SSDs or HDDs
- 2 x 10G Ethernet Ports
- Supports Ethernet over USB-C
- Compatible with Dropbox & Google Drive
- ExFAT & HFS+ File Systems
Description
Description

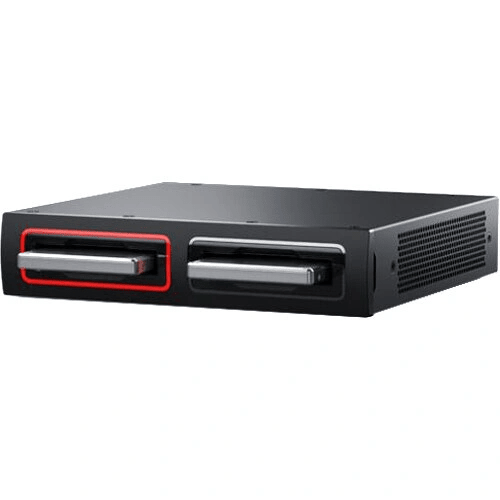

Blackmagic Cloud Dock 2 lets you share up to 2 independent 2.5 inch disks over a high speed 10G Ethernet network. Just plug in SATA HDDs and SSDs, or extreme performance U.2 disks for incredibly fast file reading and writing. You can also sync files globally using Dropbox and Google Drive sync and view all storage, connection and sync activity in real time on a display connected to the HDMI monitor port. Blackmagic Cloud Dock 2 has 2 10G Ethernet ports and an Ethernet over USB-C port in a half width, single rack unit, making it highly portable network storage that’s perfect for high end film and television use.
Designed for Film and Television
Blackmagic Cloud Pod will transform customer’s work! It’s perfect for film and television because you can record onto USB-C flash disks and then use the Blackmagic Cloud Pod to make the disk available on the network for multiple editors and colorists to use. Depending on the brand of USB-C flash disk used, it even handles massive 12K Blackmagic RAW digital cinema files! USB-C flash disks are amazing because they are affordable, have zero seek times and you can buy them in any office supply store. Dropbox and Google Drive sync allows you to place pods in different locations so everyone can have a fast local copy of their files. Then each location gets the fastest editing experience possible.
Connections
SSD Interface
2 x removable and hot-swappable 2.5 inch U.2 SSD or SATA.
10G Ethernet Ports
2 x 10G BASE-T
USB-C Port
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
HDMI Monitor Outputs
1
Computer Interface
USB-C or Ethernet for shared file access, configuration and software updates.
File Sharing Protocol
Protocol
SMB
Computer Connections
50 max.
Cloud Synchronization
Compatible Services
Dropbox
Google Drive
Storage
Storage Type
Bring your own drive.
External Storage Format
ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
Displays
HDMI Monitor Out Standards
1080p50, 1080p59.94, 1080p60
Monitor Out Displays
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.
Status Indicator
LED bezel indicator lights around SSD media slots.
Device Control
External Control
USB-C or Ethernet for configuration and software updates.
Software
Software Included
Blackmagic Cloud Setup Utility
Blackmagic Proxy Generator Lite
Internal software upgrade via Blackmagic Cloud Setup using USB-C port
Power Requirements
Power Supply
Internal 100 – 240V AC 50/60Hz with IEC C14 mains input.
Power Usage
25W without SSDs.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32°to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
What’s Included
Blackmagic Cloud Dock 2
Welcome wallet with QR code for software download
Warranty
12 Month Limited Manufacturer’s Warranty.
