Description

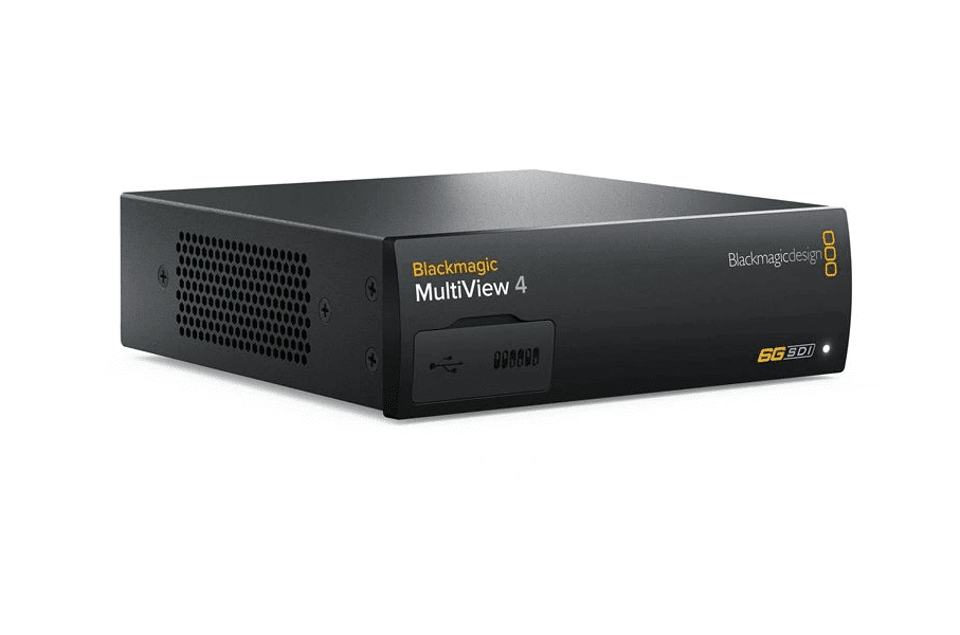

The Blackmagic Design MultiView 4 features four 10-bit 6G-SDI inputs that let you monitor SD, HD, or 4K sources in any combination on Ultra HD monitors or TVs. This lets you take advantage of high resolution displays to view each source with increased clarity. The MultiView 4 allows for 2×2 display with each input fully re-synchronised. One 6G-SDI output and one HDMI multi-view output are provided, as well as a loop output for each 6G-SDI input for passing the signals to additional devices.
Housed in a 1 RU machined aluminium frame, the MultiView 4 is ready for use in the studio, broadcast truck, or even on location. It can be controlled with the included control software via the Ethernet port or by an optional Teranex front panel (not included). For easy integration into any facility, a built-in multi-voltage power supply supports 90 to 240 VAC, or you can power the unit by 48 VDC PoE+.
Note: IEC power cable is not included.
Features
- Native Ultra HD multi-view output
- 4x 6G-SDI inputs; accepts SD, HD, Ultra HD, and DCI 4K signals
- Supports Ultra HD 4K (3840×2160) up to 30p; DCI 4K (4096×2160) at 24p
- 1x 6G-SDI and 1x HDMI multi-view outputs
- 4x SDI loop outputs
- 2×2 multi-view configurations
- 2-channel audio metres for each view
- 16×9 SD support
- Tally support with ATEM switchers via optional Teranex Mini Smart Panel
- 1 RU machined aluminium chassis
- Software control over Ethernet; supports Videohub router protocol
- Built-in 90 to 240 VAC power supply
- IEC power cable required
- Supports PoE+ 48 VDC
Specifications
| Connections | |
| SDI Video Input | 4 x 10-bit SD/HD/6G-SDI |
| SDI Video Output | 4 x 10-bit SD/HD/6G-SDI loop outputs |
| Multi-View Outputs | 1 x 10-bit HD/6G-SDI 1 x HDMI, type A (supports EDID of the monitor) |
| Multi-Rate Support | Auto detection of SD, HD, or 6G-SDI. Simultaneous viewing of 4K, HD, and SD video. |
| Updates | USB 2.0 high speed (480 Mb/s) interface or via Ethernet |
| Control | 1 x RJ45 Ethernet |
| Configuration | Via RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting |
| Reclocking | On all SDI outputs; auto switching between SD, HD, or 6G-SDI video |
| Standards | |
| Format Support | SD Format Support 625/25 PAL 525/29.97 NTSC HD Format Support 2K Format Support 4K Format Support |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656, and ITU-R BT.601 |
| SDI Video Rates | SD-SDI: 270 Mb/s HD-SDI: 1.5 Gb/s 3G-SDI: 3 Gb/s 6G-SDI: 6 Gb/s |
| SDI Video Sampling | 4:2:2 and 4:4:4 |
| SDI Colour Precision | 4:2:2 and 4:4:4 10-bit |
| SDI Colour Space | Inputs: YUV or RGB Outputs: YUV |
| SDI Audio Sampling | 48 kHz and 24-bit |
| SDI Metadata Support | Video payload identification ancillary data as per SMPTE 352M |
| Software | |
| Software Control | Multi-view control software included free for Windows and Mac OS X |
| Internal Software Upgrade | Via included updater application |
| General | |
| Power Supply | IEC power cable required 90 to 240 VAC input PoE+: 48 VDC |
| Power Consumption | 16 W |
| Operating Temperature | 0 to 40°C |
| Storage Temperature | -20 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Rack Space | 1 RU |
| Dimensions (W x H x D) | 13.99 x 4.45 x 16.99 cm |
| Weight | 0.58 kg |
