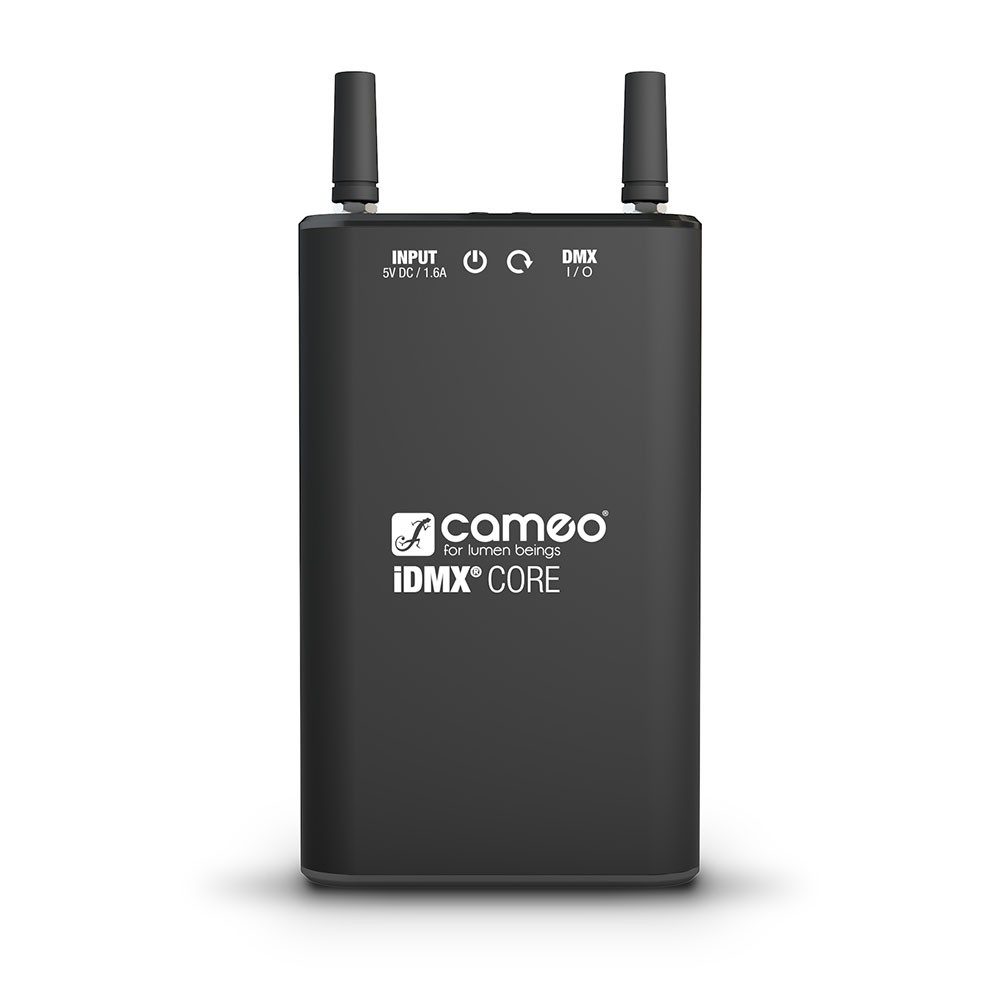

Cameo IDMX CORE WiFi To W-DMX Converter

Battery-powered WiFi to W-DMX™ converter


Allows wireless lighting control via the Cameo iDMX® Controller App


Receives WiFi signals from all iOS and Android devices


2.4 GHz W-DMX™ transmitter with an operating range of up to 300 m


Can be used purely as a W-DMX™ transmitter via the DMX input


Allows control of conventional DMX devices using the iDMX® Controller App via the DMX output


Long-life LG Chem lithium-ion battery for reliable operation


Battery management system prevents overcharging and deep discharging


Includes power adapter charger, bag and DMX cable


Description

Wireless lighting control at your fingertips using iOS and Android devices with the iDMX® CORE WiFi and W-DMX™ Box. The battery-powered unit is specially designed to work with Cameo’s iDMX® Controller App. It features a 2.4 GHz W-DMX™ transmitter with an operating range of up to 300 m. 3 and 5-pin DMX inputs and outputs allow use with DMX light desks as well as wireless control of conventional DMX spots via W-DMX™ (the Wi-Fi connection is only between the mobile device and iDMX CORE). The high-capacity LG Chem lithium-ion battery provides up to eight hours of continuous operation for the iDMX® CORE Box, which can be extended by means of external power banks. An integrated battery management system prevents overcharging and deep discharging to ensure long battery life. A power adapter charger, DMX Y cable and bag are included.

Specifications

Product type
LED PAR Lighting Accessories

Range of W-DMX™
up to 300 m

Range of WiFi
up to 15 m

Radio frequency
2400 MHz

DMX input
3-pin & 5-pin

Controls
On / Off , reset

Indicators
Status LED

Battery capacity
24 Wh

Charging time
6h

Battery operation time at maximum load
up to 8 hours

Housing material
Aluminium

Cabinet colour
Black

Protection class IP
20

Cooling
Convection

Maximum Ambient Temperature
-10° – 45° °C

Dimensions without mounting bracket

Width
85 mm

Height
25 mm

Length
170.5 mm

Weight
0,939 kg
