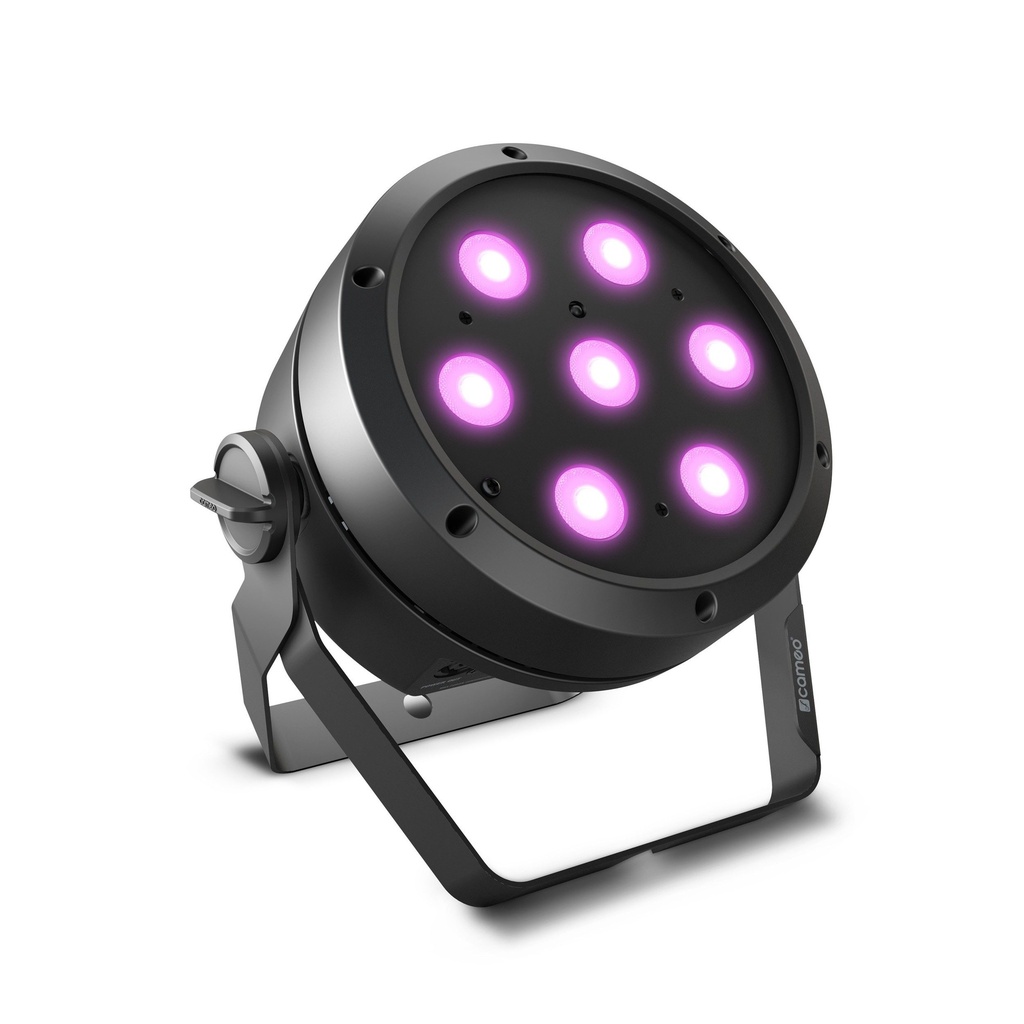

Cameo ROOT PAR 4 7 x 4 W RGBW PAR Spotlights

Cameo ROOT PAR 4 7 x 4 W RGBW PAR Spotlights

The optimal solution for sophisticated, professional lighting effects and also ideal for smaller event locations. This FLAT PAR boasts cool, intelligent features usually only found on high-end, professional devices. Unparalleled in its class, it sports premium features such as an OLED display, patented EZchase® DMX delay and powerCON-compatible power connections. It even supports W-DMX™ via an optional iDMX® stick.

Broad and vibrant light shows can be created by daisy-chaining several devices. Your creative possibilities are limitless. The DMX signal and power input/output are looped through each unit. This allows you to fully exploit the unique potential of the patented EZchase® DMX delay feature and create thrilling light patterns and colour changes with minimal programming.

A powerful light output of 1350 lm delivered by 7 x 4 W hex colour LED PAR cans is ready and available for musicians, DJs and companies. The Cameo ROOT® PAR 4 not only creates superb RGBW colour mixing, it also demonstrates incredible flexibility for producing various white tones. Colours and even the settings are also easily configured without the remote controller via four buttons and the OLED display. A built-in microphone for sound synchronisation is available. An IR remote control is also optionally available as an accessory (product no. CLPFLAT1REMOTE).

The package includes two mounting brackets and a tilt screw for using the LED FLAT PAR as an uplight without bracket. Designed with sturdy, flat, compact housing and featuring a powerCON- compatible power connection, this device is made for touring, and is incredibly reliable thanks to it’s fully passive convection cooling. Inserting an iDMX® stick into the USB port upgrades the LED spot to support wireless DMX connection via W-DMX™.

This expands its range of application like house parties and birthday celebrations, mood and ambience lighting, and portable dance floor setups. This compact LED FLAT PAR allows you to express your passion for using light and colours for creating incredible, fascinating moments.

Key Features:
Powerful 7 x 4 W quad-colour LED PAR can with 1350 lm light output
Excellent RGBW colour mixing
Lenses optimised for even light intensity
DMX and power input and output for daisy-chaining several devices
Exclusive, patented EZchase® DMX delay feature for simple chase effects
PowerCON-compatible power connection
Configuration via four keys and OLED display
Built-in microphone for sound control
USB port for iDMX® stick for wireless DMX connection via W-DMX™
Flat, compact ABS housing with rubber feet
Twin mounting bracket included, tilt adjustment screw for uplighting
Specifications
Product Type LED PAR Lighting
Colour Spectrum RGBW
Number of LEDs 7
LED Type 4 W
LED PWM Frequency 650 Hz, 1530 Hz, 2150 Hz, 4000 Hz
Dispersion Beam Angle: 19 °, Field Angle: 36 °
DMX input 3-pole male
DMX output 3-pole female
DMX Functions colour macro, Dimmer, Dimmer Fine, DMX Delay, RGBW, sound sensitivity, Speed Selection, strobe
Control DMX512, IR Remote Control
Standalone Modes Auto programs, Colour presets, Loop, sound programs, Static, User Colours
Controls Down, Enter, Mode, Up
Indicators OLED Display
Operating Voltage 100 V AC – 240 V AC, 50 – 60 Hz
Power Consumption 38 W
Power Connector Blue Power Twist, male, White Power Twist
Housing Material ABS plastic
Cabinet Colour Black
Cooling Convection
Illuminance 7850 lx
Luminous Flux 1350 lm
Fuse F3A / 250 V
Relative Humidity < 80 %, not condensing
Operating Temperature 0 – 40 °C
Width 195 mm
Height 133 mm
Length 195 mm
Weight 1.2 kg
Accessories (included) Mounting bracket, Power cord
