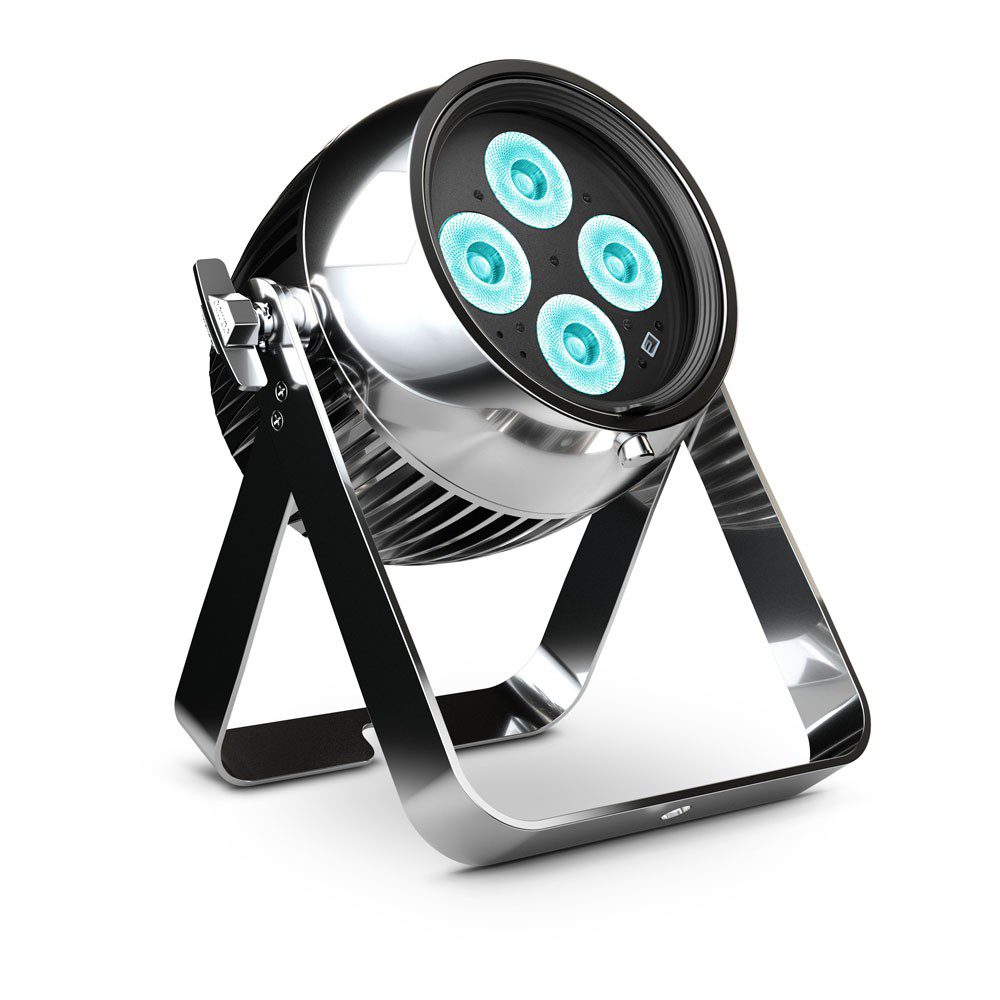

Cameo ZENIT B60 Battery Power Light (Chrome) – Used

Overview
Battery-Powered W-DMX™ IP65 PAR Light chrome
Description
With battery operation, built-in wireless DMX and IP65 rating, the Cameo ZENIT® B60 is ready for demanding indoor and outdoor lighting applications. The highly professional PAR light sports four 15 W RGBW Cree LEDs with a 50,000 hour lifetime and powerful 1,900 lm output for brilliant, uniform colours with a precise 11° beam spread. For extra versatility it comes with two specially designed light shaping diffusers offering a choice of 25° or 40° beam angles while maintaining output.
In addition to seven modes of DMX, RDM and IR remote or manual control via the fixture’s display the ZENIT® B60 incorporates a 2.4 GHz W-DMX™ receiver. Developed by Wireless Solution Sweden AB, W-DMX™ has become the unofficial standard for professional wireless lighting control. The luminaire’s super capacity lithium-ion battery is made by LG Chem providing reliable performance up to 24 hours from a single charge with adjustable runtime in one hour increments. An intelligent control automatically calculates brightness, and the PAR light’s battery management system prevents overcharging and exhaustive discharge for extended battery life.
Sporting a 3,600 Hz refresh rate for flicker-free performance and highly efficient convection cooling for noiseless operation, the ZENIT® B60 is perfect for motion picture and TV applications. It utilises 16-bit technology for smooth high-resolution colour mixing and dimming and includes individual LED colour temperature correction plus a selection of dimming curves with adjustable response. The aluminium housing features a bright OLED display with four touch buttons for easy configuration while a security lock prevents unauthorized menu access.
Features

4 x 15 W RGBW Cree LEDs with 1,900 lm total output for uniform colour mixing
Long-life super capacity LG Chem lithium-ion battery for reliable operation
Battery management system prevents overcharging and exhaustive discharge
Built-in 2.4 GHz W-DMX™ receiver
Wireless DMX, standard DMX, RDM and IR control or via the four touch buttons display
Includes two light shaping diffusers for flexible 11°, 25° or 40° beam spread options, elliptical diffuser 60° x 10° available as accessory
16-bit technology for high-resolution colours and dimming
OLED display with four touch buttons for easy configuration
Security lock against unauthorized menu access
Emergency lighting function

Specififcations

Product type
LED PAR Lighting

Type
Outdoor

Colour spectrum
RGBW

Number of LEDs
4

LED type
15 W Cree

Refresh rate
3600Hz

Dispersion
Without diffusor – (Beam) 11° / (Field) 18°

DMX input
5-pin IP65

DMX output
5-pin IP65

DMX mode
2-channel, 15-channel, 10-channel, 8-2 Channel, 8-1 Channel, 4-channel, 3-channel

DMX Functions
Dimmer Fine, Dimmer Curve, Dimmer, CTC (Colour Temperature Correction), strobe, colour macro, RGBW Fine, colour jump, RGBW, colour fade, reset, colour change, Dimmer Response

Standalone modes
White Balance adjustable, colour jump, strobe, colour fade, static colour, auto programs, master / slave mode, Display Lock, Dimmer Response, Dimmer Curve, colour macro

Controls
Value Up, Value Down, mode, Enter

Indicators
OLED Display

Operating voltage
100 V AC – 240 V AC, 50 – 60 Hz

Power consumption
100W

Power connector
IP65

Power supply connection
IP65

Housing material
Die-cast aluminium

Cabinet Colour
Chrome

Protection class IP
IP65

Battery type
LG F1L

Battery capacity
217 Wh, 20.1 Ah

Battery operation time at maximum load
up to 24 hours

Charging time
4h

Cooling
Convection

Illuminance
40000lx @ 1m

Luminous flux
1900lm

Efficiency
32 lm/W

Operating Temperature
-15 – 45°C

Dimensions without mounting bracket


Width
187mm

Height
187mm

Length
164mm

Weight
5.4kg
