Sold Per Meter

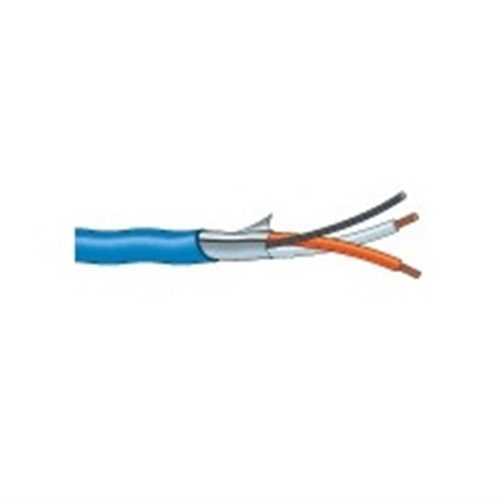

The Canare DA202AT AES/EBU Digital Audio Cable (1 m) is suitable for use in all rack wiring applications. It is useful in applications that use IDC punch down block digital audio (110 Ω type) Patchbays. Foil Shield with drain wire allows easy strip, prep, and ground wire termination.
Key Features:
- Suitable for use with the following applications: AES/EBU digital audio, audio rack wiring, post production
- Special POE filter rods maintain a constant impedance of 110 Ω
- Comes with a blue jacket
Specifications
| Outer Diameter | 0.16″ (4 mm) (nominal) |
| Thickness | PVC Jacket: 0.01″ (0.3 mm) (nominal) Insulation: 0.82″ (20.9 mm) (IPE) |
| Conductor | AWG (AC): 25 (7/7.09 quantity/mm) Cross Sectional Area: 0.18 mm² |
| Pitch of Quad | 1.5″ (38 mm) |
| Shield Coverage | 100% aluminium foil |
| Dielectric Strength | 500 VAC/min |
| Insulation Resistance | ≥ 1,000 MΩ/3 Mft |
| Electrical | Conductor D.C.R: < 32.3 Ω/1,000′ (<10.6 Ω/100 m) Nominal Capacitance: 45 pF/m Nominal Impedance: 110 Ω Nominal Attenuation at 3 MHz: 6.7 dB/100 m |
| Brittle Point | -56°F (-49°C) |
| Length | 328.08′ (100 m) Maximum Recommended AES / EBU Length: 426′ (130 m) |
