Description

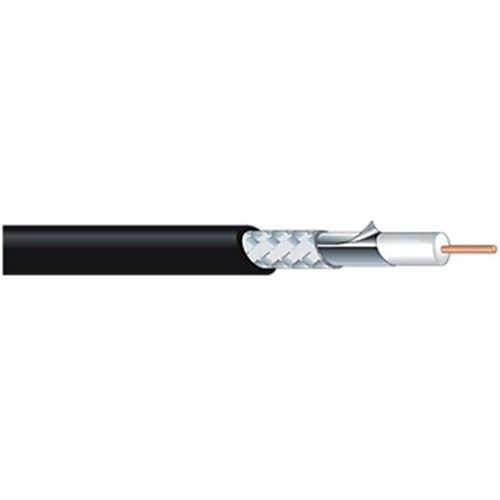

The black L-4.5CHD Video Coaxial Cable from Canare is a 75-ohm precision digital video cable that offers the professional broadcaster a high performance, 100% sweep tested, low cost, low loss coaxial cable. It meets the demands of today’s facility migration trends toward serial digital video transfer and HDTV standards.
Key Features:
- Highly-foamed POE insulation for improved attenuation characteristics
- Multi-layer insulation offers a different foaming ratio to each layer for increased strength
- Tinned copper braid with aluminum foil for excellent shielding
- L-2.5CHD is ideal for internal rack wiring
- UL 1666 Riser flame test conformant
- Ideal for HD-Serial Digital Video, satellite head ends, HDTV upgrades, broadband facilities, SMPTE 259M, 292M, 424M format signal applications
Specifications
| Outer Diameter | Nominal: 0.27″ (7 mm) Inner Conductor: 0.04″ (1.02 mm) Insulation: 0.18″ (4.57 mm) |
| Conductor | Inner Conductor Composition: 1/1.02A (18) quantity/mm (AWG) Outer Conductor Shield Coverage & Composition (91% or more): 0.14TA mm, 6 ends, 24 carriers |
| Resistance | Inner Conductor: ≤23.3 Ω/km Outer Conductor: ≤9.9 Ω/km |
| Static Capacity | 53 nF/km @ 1 kHz |
| Impedance | 75±3 Ω |
| Attenuation | 17.4 dB/100 m at 750 MHz |
| Maximum Transmission Distance | Composite NTSC: 1807.74′ (551 m) @ 143 Mbps (SMPTE 259M) Composite PAL: 1653.54′ (504 m) @ 177 Mbps (ITU-R BT.601) Component (4:2:2): 1361.55′ (415 m) @ 270 Mbps (SMPTE 259M) Component (4:2:2) 16 x 9: 1184.38′ (361 m) @ 360 Mbps (SMPTE 259M) SDI: 961.28′ (293 m) @ 540 Mbps (SMPTE 344M) HD-SDI: 377.29′ (115 m) @ 1.5 Gbps (SMPTE 292M) HD 1080p: 259.18′ (79 m) @ 3 Gbps (SMPTE 424M) |
| Length | 100m |
