Per Meter

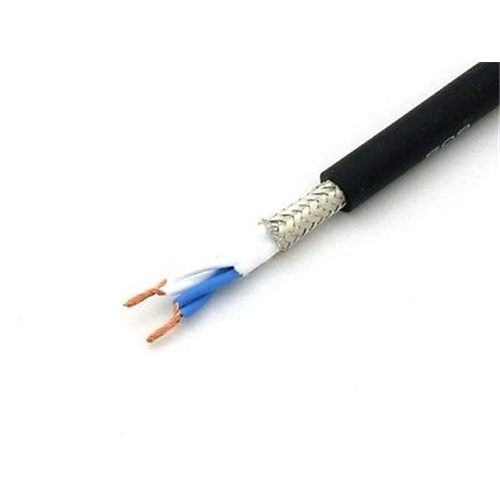

L-4E5C
A narrow profile version of L-4E6S 4.8mm OD. Specifically designed to save space and reduce weight during remote field expeditions or confining installations.
Microphones.
Portable Applications.
Audio Rack Wiring.
PA Systems.
Audio Patch Cords.
Braided Copper Shield.
Flexible in Extreme Cold Weather.
Cross Linked PE Insulation.
Reduced Handling Noise.
Rejects EMI and RFI.
| MECHANICAL SPECIFICATIONS | ||||||||||
| Model | Std. Lng. ft. (m) |
Wt Std. Lng. lbs (kgs) |
Nom. O.D. in. |
Jacket Nom. Thick. in. |
Brittle Point F° |
No. of Cond. |
Insul.
Type* |
Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG |
Pitch Twist Quad in. |
Shield Cover- age |
| L-4E6S | 656 (200) 1000 |
24 (11) 35 |
.236 (6.00) |
PVC .044 (1.12) |
-56 (-49) |
4 2 Blue 2 Wht |
IPE 15.7 |
AC – #24 40/3.15 310 #21 |
.79 (20) |
>95% TAC Braid |
| L-4E5C | 656 (200) |
18 (8) |
.189 (4.80) |
PVC .032 (0.80) |
-56 (-49) |
4 2 Blue 2Wht |
IPE 11.8 |
AC – #26 30/3.15 232.5 #23 |
.71 (18) |
>96% TAC Braid |
