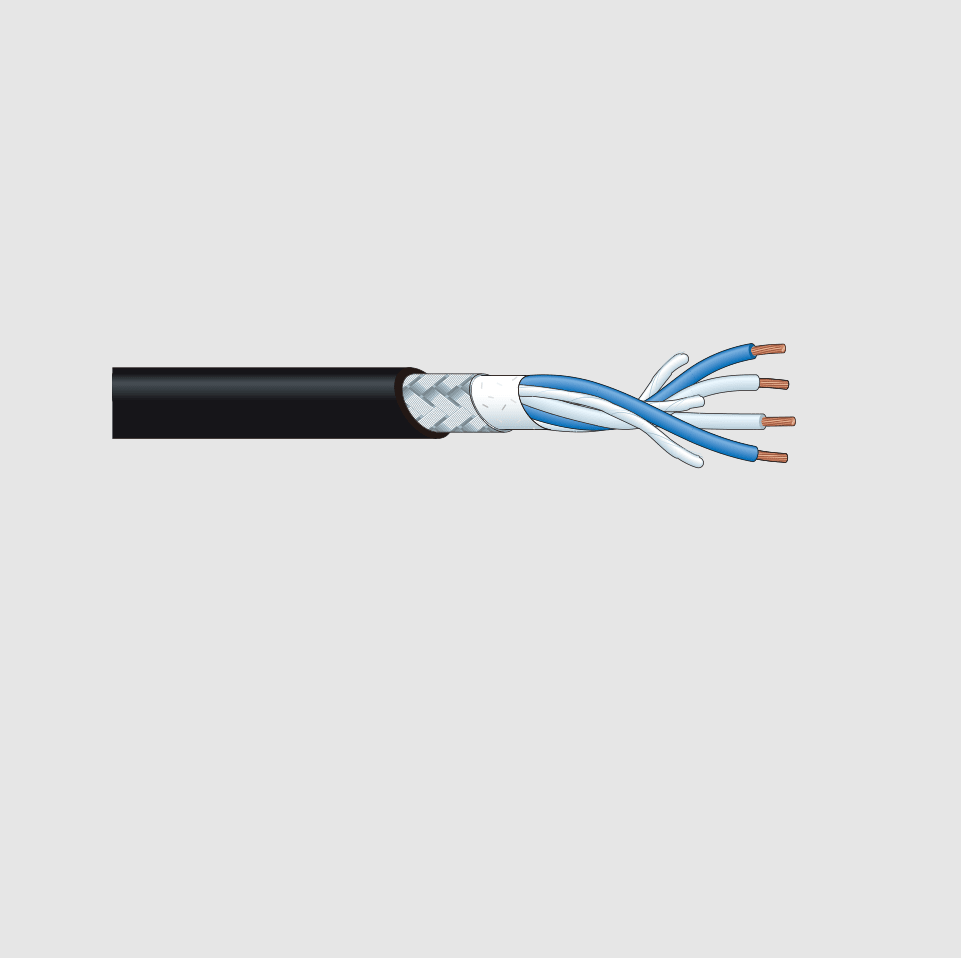

Canare L-4E6S-BK100 6.0mm O/D Starquad With Braided Shield Cable 100m Roll Black
STAR QUAD MICROPHONE CABLE – L-4E6S
The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing. Available in 10 beautiful matte finish color jackets.
The premier Star Quad cable for all handheld microphone applications. Flexible, satin smooth to the touch and extra strong, this standard diameter, 21 AWG cable fits perfectly in all XLR-type audio connectors. Forty separate strands in each conductor eliminate breakage due to flexing.
| Model | Std. Lng.ft. (m) |
Wt Std. Lng. lbs(kgs) |
Nom. O.D.in. (mm) |
Jacket Nom. Thick.in. (mm) |
Brittle PointF° (C°) |
No. of Cond. |
Insul.
Type* |
Cond-AWG (Qty./mil) Cross Sec. Area mil.² **Quad AWG |
Pitch Twist Quadin. (mm) |
Shield Cover- age |
Cond. D.C.R.ohm/1000ft (ohm/100m) |
Shield D.C.R.ohm/1000ft (ohm/100m) |
Nom. Cap. *** pF/m |
Nom. Cap. † pF/m |
Nom. Imp.(ohm) |
Nom. Atten.V/1000ft (V/100m) |
Group Delay Time nS/ft (nS/m) |
| L-4E6S | 656 (200)1000 (305) |
24 (11)35 (16) |
.236 (6.00) |
PVC .044 (1.12) |
-56 (-49) |
4 2 Blue 2 Wht |
IPE 15.7 |
AC – #24 40/3.15 310 #21 |
.79 (20) |
>95% TAC Braid |
<29.9 (<9.8) |
<9.1 (<3.0) |
150 | 185 | 44 | 0.9 (0.3) |
1.80 (5.9) |
