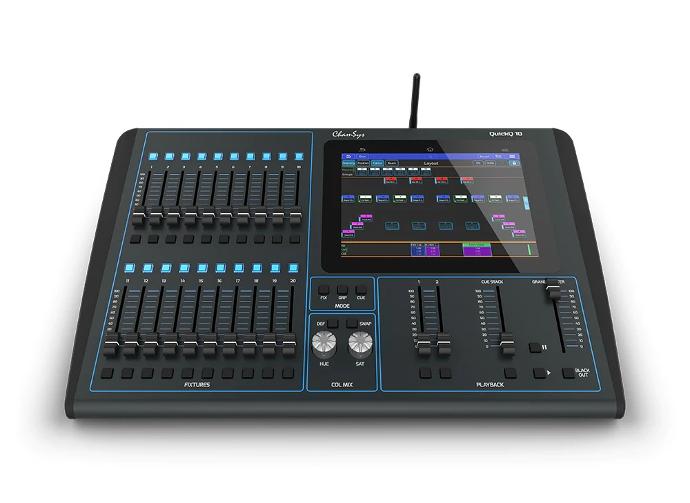

ChamSys QUICK Q 10 lighting console

QuickQ 10 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.
The console can automatically detect, patch and configure RDM compliant fixtures and features in-built WIFI enabling remote connection to the free QuickQ app available on iOS, Andoid and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.
The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.
The console has a free to download offline programming software available for Mac and Windows that includes the ChamSys MagicVis visualiser. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.
QuickQ uses ChamSys extensive and continuously updated personality library with over 26,000 personalities.
QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.


FEATURES
Overview:

Modelled on smartphone icon interfaces for ease of use
Intuitive interface allowing simple control of all fixture attributes
The interface supports gestures such pinch zoom and scrolling
Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi

Playback Faders:

20 multi-function fixture faders with 3 different modes – Fixture, Group and Cue
3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
The console features a dedicated Grand Master fader for overall level control

Colour Control:

A dedicated “colour control area” with Hue and Saturation encoders
Select from inbuilt palettes and gel libraries using the touch screen
Built in colour picker for use with LED fixtures

Networking:

QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

Software:

Offline editor available for both Windows and Mac
Regular software updates
Easy Upgrades
Automated Patching
HSV Color Mixing
Color Picker
On Screen Pan/Tilt Trackpad
Built-in FX
Chase Support
Master Cue Stack
Execute Window
Audio Triggering
Tap to Time



SPECIFICATIONS
Hardware Specifications:

Universes supported: 1
Direct DMX Outputs 5-Pin XLR: 1
Master Playback Faders: 2 Chase, 1 Cue Stack
Multi-Function Fixture Faders: 20
Bump Buttons: Yes
Attribute Encoders: 0
Dedicated Hue/Saturation Encoders: Yes
Inbuilt 9.7” Multi-touch Display: Yes
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Audio Input: 1
Audio Output: 1*
MIDI Ports in/out: No

Software Specifications:

Max Number of DMX Channels: 512
Max Number of Fixtures Supported: 512
Max Number of Cue Stacks: 1
Max Number of Chases: 2
Midi & Midi Timecode Supported: No
OSC Supported: Yes
RDM Autopatch for fast show patching
Fixture library of over 30,000 fixture files
Built in FX generator
Colour picker and Gel inbuilt Gel library
Offline designer software available for Windows and Mac

Console Weights and Dimensions:

Width: 525mm (20.7 inches)
Depth: 350mm (13.8 inches)
Height: 106mm (4.2 inches)
Weight: 4.07kg (8.97 lb)

Included Accessories:

USB Desk light: 1
Dust cover: 1
Tablet stand: 1
Wi-Fi Antenna: 1
12V power supply: 1
IEC power cable: 1

Boxed Weights and Dimensions:

Width: 680mm (26.8 inches)
Depth: 420mm (16.5 inches)
Height: 230mm (9 inches)
Weight: 8kg (17.63 lb)

Flight Cased Weights and Dimensions:

Width: 650mm (25.6 inches)
Depth: 490mm (19.3 inches)
Height: 210mm (8.3 inches)
Weight (console in flightcase): 16kg (35.27 lb)
