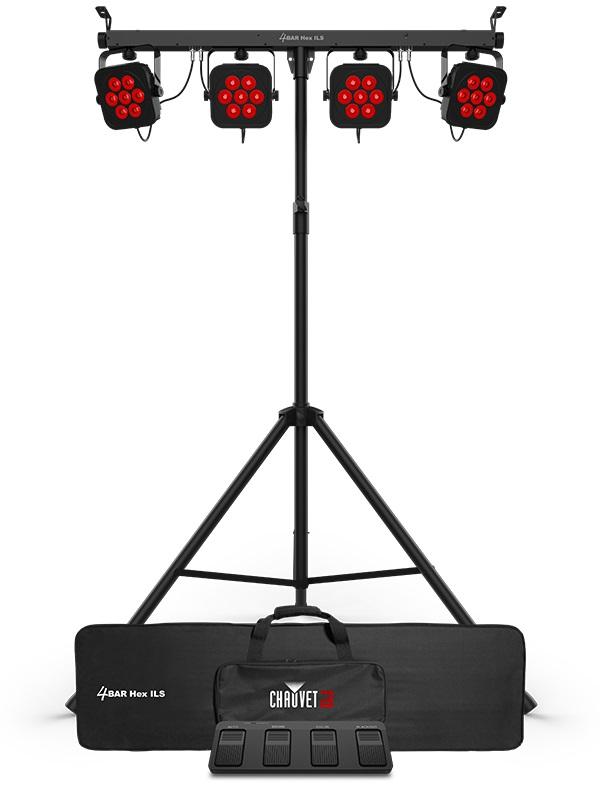

Chauvet 4Bar Hex Ils

4BAR Hex ILS is a complete wash lighting solution fitted with high-intensity hex-color (RGBAW+UV) LEDs that can be controlled wirelessly right out of the box using the included footswitch or optional IRC-6 remote. ILS compatibility offers ultimate control flexibility and makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology. A tripod and carry bag are included for effortless setup and quick tear down.

FEATURES

• Complete wash lighting solution fitted with high-intensity, hex-color (RGBAW+UV) LEDs

• ILS compatibility for use in the ILS ecosystem

• D-Fi USB compatibility for wireless Master/Slave or DMX control

• Generate a broad spectrum of colors and achieve natural-looking color temperatures with 6-in-1 LED technology

• Update the unit’s software from the built-in USB port

• Out of the box wireless control with included footswitch or optional IRC-6 controller

• Easily set up and tear down in minutes with the included tripod stand and carrying bags

• Achieve total room or stage coverage with 4 individually adjustable heads

• Increase mounting options by safely mounting to truss using built-in bolts

SPECIFICATIONS

• DMX Channels:6, 8, or 27
• DMX Connectors:3-pin XLR
• Max Unobstructed Distance:(foot switch): 100 ft (30.5 m)
• Light Source:42 LEDs (hex color RGBAW+UV) 5.1 W, (2 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Beam Angle:16°
• Field Angle:25°
• Illuminance:1570 lux @ 2 m (per pod)
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  97 W, 1.3 A @ 120 V, 60 Hz
  94 W, 0.7 A @ 230 V, 50 Hz
• Weight:12.2 lb (5.5 kg)
• Size:45.7 x 2 x 12 in (1186 x 50.8 x 305 mm)
• Approvals:CE, RoHS, UKCA
• Footswitch battery: 9 V
• Operating Frequency (D-Fi): 2.412 to 2.484 GHz
• Operating Frequency (foot switch): 433 MHz
• Stand Height: 7 ft 4 in (2.2 m)
• Fits Tripod Sizes: 1.5 in (36.80 mm)
• Bracket Mounting Hole: M10 (1.5 mm pitch)
• Weight (Controller): 1.2 lb (0.6 kg)
• Size (Controller): 16.5 x 5.2 x 1.5 in (419 x 132 x 38 mm)
• Optional Controllers: IRC-6, ILS Command

WHAT’S INCLUDED

• 4BAR Hex ILS
• Power cord
• Carrying bag
• Tripod
• Tripod Carry bag
• Wireless Footswitch
• Quick Reference Guide
