Chauvet Blazor Led Barrel Scanner

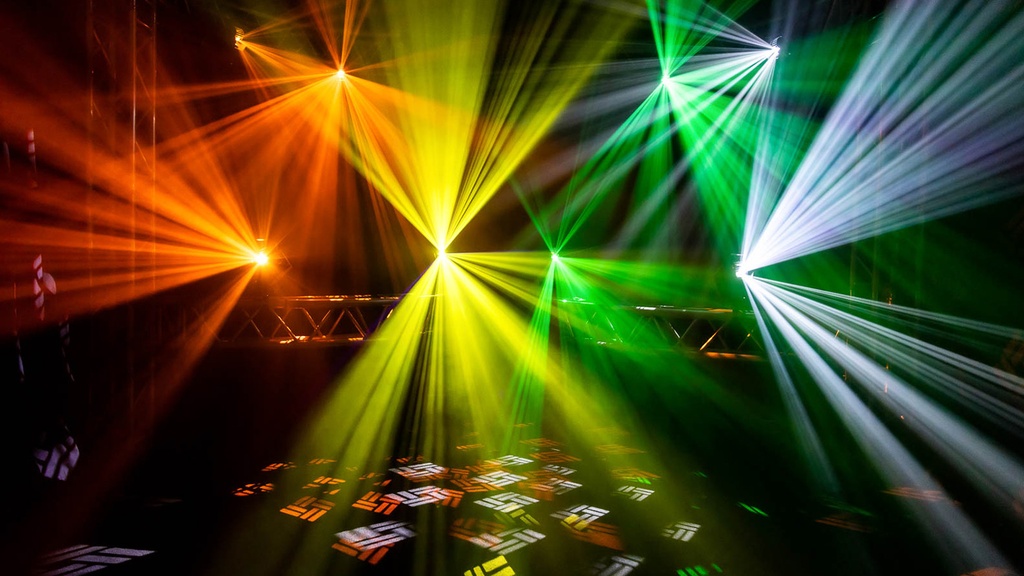

Get rolling with a bright LED barrel scanner that fills the dancefloor with nearly 180 degrees of coverage. At 115 watts, this punchy effect light projects dazzling gobo imagery, even without the use of smoke or haze. Broad sweeping mirror effects and interchangeable rotating gobos combine to dazzle any dancefloor with Blazor.

FEATURES

• Barrel LED effect light fitted with a 115W LED projects multicolored rotating gobos

• Increase design flexibility and effects with inter-changeable gobos

• Provide wide coverage using the rotating mirror barrel plus mirror dish

• Generate a synchronized show in Master/Slave mode with up to 2 units

• Separate color and gobo wheels allow for creative programming

• Includes 10 popular holiday gobos

• Compatible with IRC-6 for flexible control over all features

• Save time running cables and extension cords by power linking multiple units

• Fits best in the CHS-40 VIP Gear Bag

SPECIFICATIONS

• DMX Channels:4 or 11
• DMX Connectors:3-pin XLR
• Pan and Tilt:163° / 360° (continuous)
• Colors:6 + Open, split colors, continuous scroll at variable speeds
• Gobos:7 (metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source:1 LED 115 W, (4 A), 50,000 hours life expectancy
• Strobe Rate:0 to 20 Hz
• Coverage Angle:176°
• Power Linking:3 units @ 120 V; 5 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  166 W, 2.4 A @ 120 V, 60 Hz
  160 W, 1.5 A @ 230 V, 50 Hz
• Gobo Size:18.55 mm outside, 10mm image, 0.27 mm max thickness
• Weight:9 lb. (4.08 kg)
• Size:13.38 x 9.05 x 12.2 in (340 x 230 x 310 mm)
• Approvals:CE, RoHS
• Cable Length: 5 ft (5.25 m)
• Optional Controllers: IRC-6

What’s Included

• Blazor
• Power cord
• Hanging bracket
• Holiday gobo pack
• Quick Reference Guide
