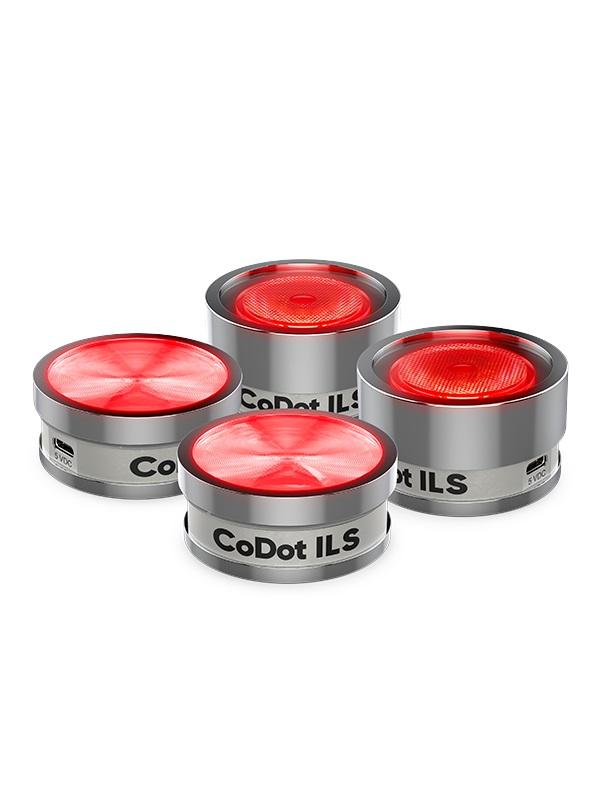

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.
FEATURES
Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
Includes two lens options to meet different application criteria
Magnetic base easily mounts to metal surfaces
Threaded insert is compatible with camera tripods and accessories
ILS compatibility for use in the ILS ecosystem
Built-in DFI transceiver communicates DMX or ILS signals wirelessly
Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
Easy navigation and access all functions directly from the LED display
Power linking multiple units from the USB type-C in and out
SPECIFICATIONS
DMX Channels:4 or 6
Max Unobstructed Distance:600 ft (183 m)
Light Source:1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
Strobe Rate:0 to 20 Hz
Operating Frequency:2.4 GHz
Power Linking:4 units @ 120 V; 4 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Weight:0.2 lb (.1 kg)
Size:2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
Approvals:CE, ROHS, UKCA, FCC
Beam Angle (installed lens): 19°
Beam Angle (included lens): 14°
Illuminance (installed lens): 256 lux @ 2 m
Illuminance (included Lens): 442 lux @ 2 m
Operating Frequency: 2.4 GHz
Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz
Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
Optional Controllers: ILS Command, RFC, RFC-XL
Threaded Insert: M6 thread
What’s Included
4 CoDot ILS
8 lenses
3 short USB cables (0.5m)
3 long USB cables (2m)
1 carry case
1 external power supply
Quick Reference Guide
