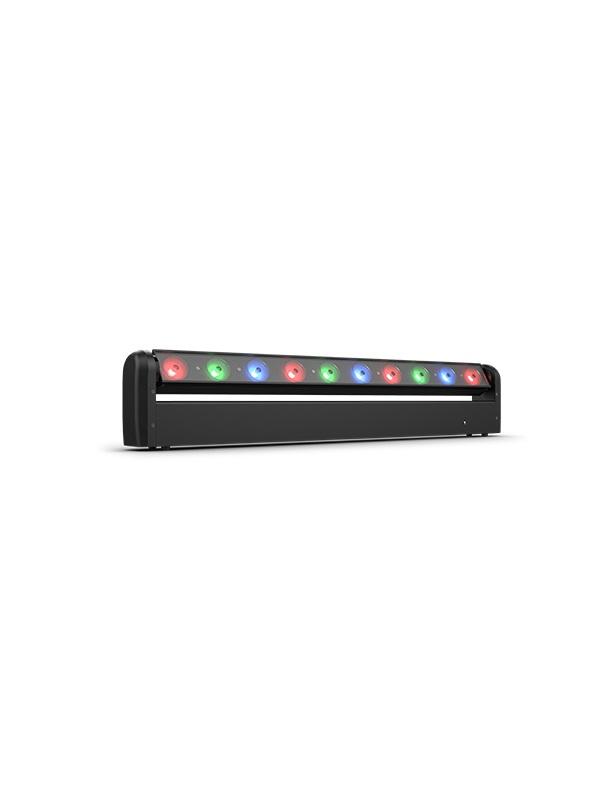

Chauvet Colorband Pix-M Ils Motorised Panning 10 X 3W Tri Led Batten

Add the power of a full-size linear wash light with 10 tri-color (RGB) LEDs, sweeping movement and a staggering array of control options and you get COLORBand Pix M ILS, a fixture that will light up any event and ignite it with energy! This moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer. You can also just angle the light where it’s needed using the built-in motors. But the true excitement comes when you create eye-catching animations and video effects with individual LED control. Controlling this powerhouse couldn’t be easier or more convenient. It has a built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes, ILS compatibility for use in the ILS ecosystem, and D-Fi USB compatibility for wireless master/slave or DMX control. Even DMX connection options are flexible with onboard 3 and 5-pin DMX connectors.

FEATURES

• Moving strip light creates dynamic sweeping effects and functions as a pixel mapping effect, blinder or wall-washer

• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

• ILS compatibility for use in the ILS ecosystem

• D-Fi USB compatibility for wireless master/slave or DMX control

• Flexible control options with onboard 3 and 5-pin DMX connectors

• Angle the light where it’s needed using the built-in motors

• Create eye-catching animations and video effects with individual LED control

• powerCON®-compatible power input/output connections for power linking

• Fits best in the CHS-60 VIP Gear Bag

SPECIFICATIONS

• DMX Channels:5, 6, 8 ,10, 17, 32, or 36
• DMX Connectors:3- and 5-pin XLR
• Light Source:10 LEDs (tri-color RGB) 6 W, (2A), 50,000 hours life expectancy
• Strobe Rate:0 to 29 Hz
• Beam Angle:15°
• Field Angle:27°7,441 lux @ 2 m
• Illuminance:7,441 lux @ 2 m
• Power Linking:12 units @ 120 V; 20 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  86 W, 1.2 A @ 120 V, 60 Hz
  84 W, 0.7 A @ 230 V, 50 Hz
• Weight:8.2 lb. (3.7 kg)
• Size:31 x 2.6 x 4.8 in (785 x 67 x 123 mm)
• Approvals:CE, UKCA, ROHS
• Tilt: 245°
• Bracket Mounting Hole: 13 mm
• Optional Controllers: RFC, RFC-XL

WHAT’S INCLUDED

• COLORband PiX-M ILS
• Power cord
• Quick Reference Guide
