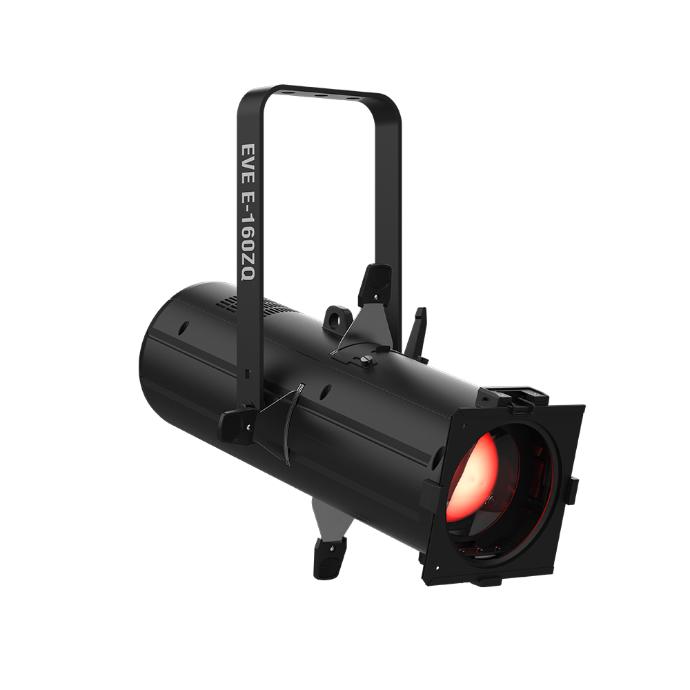

Upgrade your stage lighting with EVE E-160ZQ, a full-colour LED profile designed for both portable and fixed applications. Powered by a punchy quad-colour (RGB+WW) 160W LED allowing you to effortlessly mix colours and white colour temperatures from 2800K to 8000K. The OLED display and menu are very easy to navigate and include a range of static presets, colour effects, and dimming controls for a fast ‘set and forget’ operation.
The new EVE E-160ZQ ellipsoidal uses a new compact and low-profile housing with a standard 4-blade framing system, Gelholder, and both a metal and glass gobo holder included. Ready to use out of the box with no additional lens tube needed and has an adjustable zoom range from 24° to 37° to cater to different throw ranges and coverage sizes. Equipped with DFi-USB compatibility for wireless DMX with Chauvet DJ’s DFi protocol, and both 3-pin and 5-pin DMX connectors.
Enjoy effortless stage lighting with EVE E-160ZQ.
FEATURES
- Full-colour LED profile designed for mobile and installation applications
- Adjustable 4 blade framing system for beam shaping
- Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
- Pre-set colour temperature ranges from 2800K to 8000k eliminate the need for manual colour blending
- High PWM rate for flicker-free operation, suitable for on-camera use
- D-Fi USB compatibility for wireless master/slave or DMX control
- powerCON®-compatible power input/output connections for power linking
- Includes both metal and glass gobo holders, and gel frame
SPECIFICATIONS
| DMX Channels: | 3, 4, 11 |
|---|---|
| DMX Connectors: | 3-pin & 5-pin |
| Light Source: | 1 LED (quad-color RGBW) 160 W, 7.3 A), 50,000 hours life expectancy |
| Zoom Angle: | 24° to 37° |
| Lumens: | 5231 |
| Illuminance: | (24°) 7072 lux @ 2m (37°)2964 lux @ 2m (24°) 1132 lux @ 5m (37°) 474 lux @ 5m |
| Colour Temperature Range: | 2800 K – 8000 K |
| Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Gobo Size: | M (66 mm outside, 48 mm image, 2 mm max thicknes |
| Accessory Holder Size: | 6.25 in |
| Strobe Rate: | 1 to 30 Hz |
| Power and Current: | 150 W, 0.7 A @ 230 V, 50 Hz |
| Power Linking: | 16 units @ 230 V |
| Size: | 467 x 248 x 429 mm |
| Weight: | 5.5 kg |
| Approvals: | CE, RoHS, MET |
