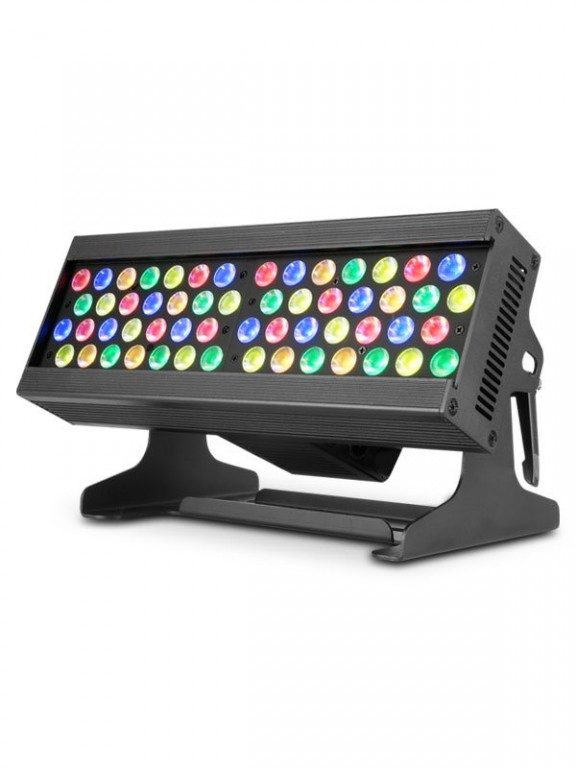

Chauvet Ovation B-565FC

Ovation B-565FC  Ovation B-565FC boasts groundbreaking features such as an RGBA-Lime color system and the incorporation of RDM, Art-Net™ and sACN plus standard DMX for programming and networking options. This little powerhouse not only makes a great batten-style light, but is also a tremendous standard wash. A holographic filter is included and locks into place so the fixture can be used in any orientation with no worry about the filter sliding out. FEATURES Full Color LED (RGBAL) batten fixture for theatre, film and production Theatre-ready with 16-bit dimming of master dimmer and individual colors Multiple control personalities with one or two sections of control Included holographic filter locks in place for ultra-smooth color mixing with a more elliptical wash pattern Virtual Color wheel with color matched to popular gel colors Art-Net™, sACN, 3- and 5-pin DMX and RDM (Remote Device Management) for added control flexibility Neutrik® powerCON® and Amphenol etherCON® compatible connections for power and data linking Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera Nearly silent operation for use in studio and theatre applications SPECIFICATIONS OPTICAL Light Source: 56 LEDs (12 red, 12 green, 12 blue, 8 amber, 12 lime) 3 W, (650 mA), 50,000 hours life expectancy Color Temperature (range): 2800 K to 6500 K Installed Optics: 20° Beam Angle (horizontal): 19° Beam Angle (vertical): 20°Beam Angle (horizontal w/filter): 36°Beam Angle (vertical w/filter): 20°Field Angle (horizontal): 37° Field Angle (vertical): 37°Field Angle (horizontal w/filter): 66°Field Angle (vertical w/filter): 40°Illuminance: 1,637 lux @ 5 m Illuminance (w/filter): 470° @ 5 m Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz DYNAMIC EFFECTS Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 30 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4 Built-in Automated Programs: Yes CONSTRUCTION / PHYSICAL Dimensions: (355 x 190 x 207 mm)Weight:(5.3 kg) Exterior Color: Black Housing Material: Aluminum die-cast Accessory Holder/Gel Frame Size: 13.86 x 3.66 in (352 x 93 mm) CONNECTIONS Power Connection: Edison (Local) plug to Neutrik® powerCON® Power Input: Neutrik® powerCON® Power Output: Neutrik® powerCON® Data Connectors: 3- and 5-pin XLR, Amphenol etherCON® Compatible Cable Length (power): 5 ft (1.5 m) CONTROL Protocol(s): Art-Net™, DMX, RDM, sACN DMX Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 – 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 Art-Net™ Channels: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 – 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 Modes/Personalities: 16 personalities ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)Power Linking:23 units @ 230 V Power and Current: 119 W, 0.51 A @ 230 V, 50 Hz
