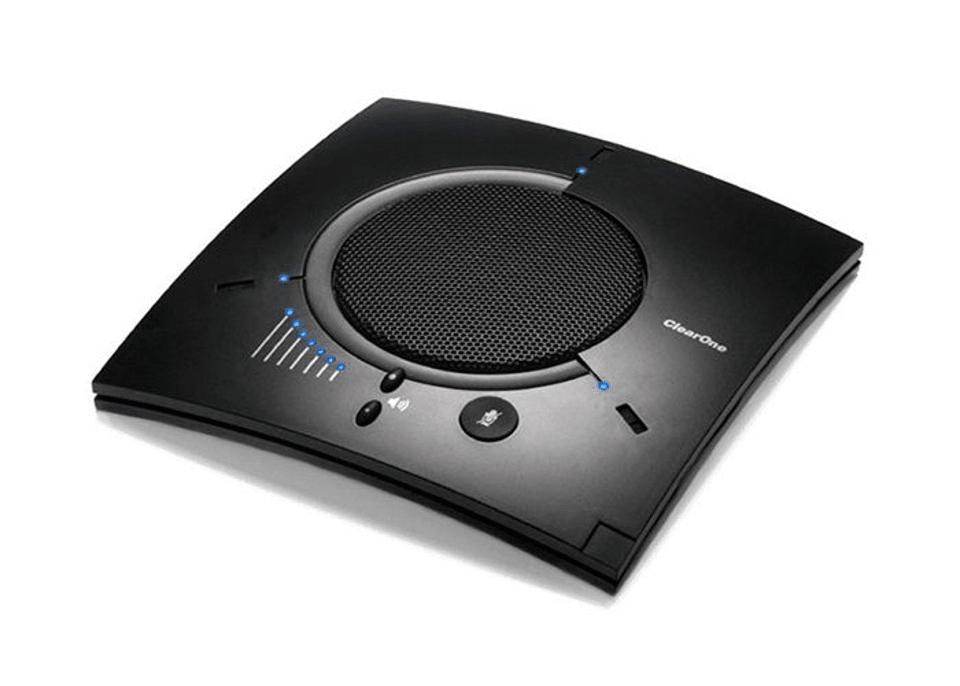

ClearOne Chat 170 USB

Key Highlights

First-mic priority intelligently activates only the microphone closest to the person speaking, preventing the amplification of ambient noise and room reflections. Adaptive modeling continuously samples room acoustics for any changes
Distributed Echo Cancellation® & noise cancellation along with full-duplex performance & automatic level controls guarantee your conference calls to be natural with unmatched audio clarity free of any distractions
Fully-compatible with Skype® for Business and also compatible with popular conferencing applications like WebEx®, GoToMeeting, Collaborate Space, Spontania, Google Hangouts, Skype & more
Three built-in microphones array with 360-degree audio pick up up to 10 feet. Large loudspeaker for rich, clear conferencing and audio playback

Applications

Unified communications
Video conferencing
Web conferencing

Environments

Huddle spaces
Conference rooms

System Requirements

Microsoft Windows 7, 8, 10 (For any firmware upgrades, use Win7)
Mac OS

Connections:

USB: Version 2.0 Compatible Type: Mini-B Female
Keyed Connector: Keyed RJ-45 (8-conductor)

Controls:

Volume Up
Volume Down
Microphone Mute

Audio:

Speaker: • Bandwidth: 190 Hz – 20 kHz • Max Output Level: 85 dB SPL @ 1 foot (0.30 meter)
Microphone: • Bandwidth: 50 Hz – 7.75 kHz

Environmental:

Operating Temperature: • 41 – 104° F (5 – 40° C)
storage Temperature: • 32 – 158° F (0 – 70° C)

Processing:

Full Duplex
Distributed Echo Cancellation (D.E.C.)®
Noise Cancellation (NC)
Automatic Level Control (ALC)
Line Echo Cancellation (LEC) – Selectable
First-Mic Priority

Power:

USB: 5 VDC @ 500 mA Maximum
External: • Input: 100 – 240 VAC • Output: 9 VDC @ 560 mA • Tip: Power • Ring: Ground

Mechanical:

Dimensions (W x D x H): • 7.4” x 7.4” x 1.8” (18.8 cm x 18.8 cm x 4.6 cm)
Weight: • 1.17 Ibs (0.53 kg)

Compliance:

RoHS
REACH
FCC Class A Part 15
CES-003
CE Listed
UL Listed

Model numbers:

910-156-250 CHAT 170: • Single CHAT 170 and Connecting Cable
