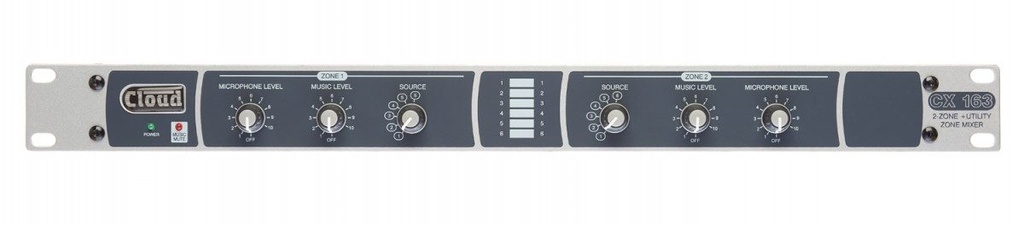

Cloud 2 zone stereo mixer. CX163

2 Zone + Utility Zone Mixer

The CX163 is ideal for leisure, licensed and retail venues providing six stereo line level inputs, one microphone input with paging mic for each zone. The CX163 has 2 stereo zone outputs + 1 mono utility output (ideal for utility areas such as toilets and foyers). Music level can be controlled remotely by the RL-1 on both stereo zones and when operating in mono, each zone can be split into two sub-zones each with its own remote level control (RL-1). Once installed this compact 1U unit is extremely simple and convenient to operate.Full specifications are available under the Downloads tab aboveLine Inputs:

• Frequency Response: 20Hz-22kHz, 0 -0.5dB
• Distortion: 20Hz-22kHz, <0.05% Typical
• Sensitivity: 100mV (-17.8dBu) to 1.5V (+6dBu)
• Input Gain Control: 24dB range
• Input Impedance: 48kW
• Headroom: >20dB
• Noise: 20Hz-22kHz (0dB gain), <-84dBu rms typical
• Equalisation: LF: ñ10dB 50Hz, HF: ñ10dB 10kHz

Microphone Inputs:

• Frequency Response: 100Hz -3dB (filter), 20kHz <-0.5dB
• Distortion: <0.05% between 20Hz-22kHz Typical
• Gain Range: 10dB to 50dB
• Input Impedance: >2kW (balanced)
• Common Mode Rejection: 1kHz >70dB
• Headroom: >20dB
• Noise: 20Hz-22kHz (150W), -128dB EIN
• Equalisation: LF: ñ10dB 100Hz, HF: ñ10dB 5kHz

Outputs:

• Output: 0dBu (775mV) via 3.5mm phoenix type, plug-in, screw terminals
• Minimum load impedance: 1k2W
• Maximum output level: +20dBu

General:

• Power Input: 230V/115V ñ10%
• Fuse Rating: T100mA 230V, T200mA 115V
• Fuse Type: 20mm x 5mm 250V
• Dimensions: 482.60mm x 44.00mm(1U) x 152.5mm
• Weight (kg): 2.15
