CURV 500 TS Compact Touring Array System LD Systems
$4,799.00 Inc GST Add to cart
Portable PA Speaker With Wireless Handheld Microphone B.Hype M - front view Portable PA Speaker With Wireless Handheld Microphone B.Hype M $1,599.00 Inc GST
Expedition Escape - Rechargeable Speaker System with Bluetooth - front view Expedition Escape - Rechargeable Speaker System with Bluetooth $399.00 Inc GST

CURV 500 TS Compact Touring Array System LD Systems

$4,799.00 Inc GST

Contact AV Store for availability.

Add to Wishlist
Brand:LD Systems

Free NZ shipping on all orders over $199 (Select at Checkout)

  • $9 Flat Rate Shipping (For Orders Under $199)
  • Order Before 12pm to get Dispatched Same Day (Hamilton Stock Only) Excludes Weekends and Holidays
    *If Only 1 item is Left in stock this may have been opened for display
    *Image is for illustrative purposes only. Please refer to product description.

Description

The compact, highly portable CURV 500® Touring Array System is fully scalable with up to four interlocking aluminium unibody line array elements operating on a SmartLink® plug and play adapter. It comes with two standard CURV satellites that feature a single 4″ midrange and triple 1″ high frequency drivers using LD Systems’ WaveAhead® technology, and two duplex satellites with twice the speaker complement.
The ported 15″ subwoofer base includes the CURV 500® Touring Array System’s class D amplification with multiband limiter, short circuit, thermal and overcurrent protection. It sports comprehensive connectivity on combo and speakON compatible connectors, six DSP presets for quick system configuration, an M20 pole mount and three ergonomic handles for easy portability. Providing impressive versatility, the lightweight CURV 500® Touring Set delivers high definition audio with powerful punch, superb balance and extended vertical and horizontal coverage. The set includes a subwoofer pole and dedicated speaker cable.

Specifications

Product type
PA Complete Systems

System output (RMS):
1000 W

Color
Black

Number of array satellites
4

Number of Smartlink adapters
1

Number of subwoofers
1

Max. SPL (continuous)
125 dB

Max. SPL (peak)
131 dB

Frequency response
40 – 20000 Hz

Dispersion (H x V)
110° horizontal, vertical 34

RMS
Subwoofer: 700 W , Array Satellites: 300 W

Peak power
Subwoofer: 1400 W , Array Satellites: 600 W

Amplifier
Class D

Protection circuits
DSP-based multiband limiter , overload , short circuit , thermal overload

Weight
48,2 kg

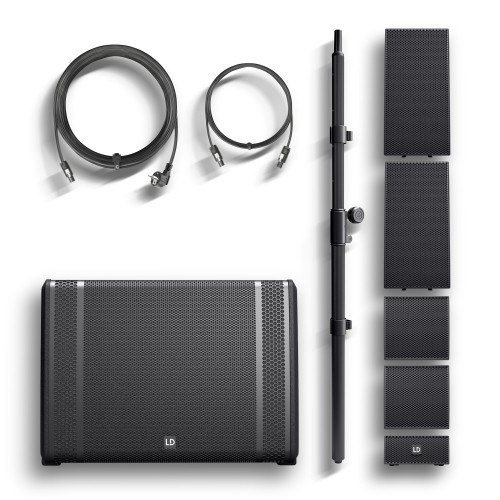

Accessories (included)
Distance bar , Power cord , Speaker cable CURV 500 CABLE 1 (2.2 m)

Subwoofer

Low/mid driver dimensions
15 ”

Low/mid driver dimensions (mm)
381 mm

Cabinet construction
Bass Reflex

Housing material
plywood

Cabinet surface
Polyurea

Dimensions Subwoofer (W x H x D)
600 x 437 x587 mm

Subwoofer weight
35.5 kg

Subwoofer features
4 ergonomic handels , 6 System DSP Presets , Powercon , speakON output , Threaded flange M20

Additional information

Weight 10 kg

Brand

LD Systems
